Installation (continued)
11

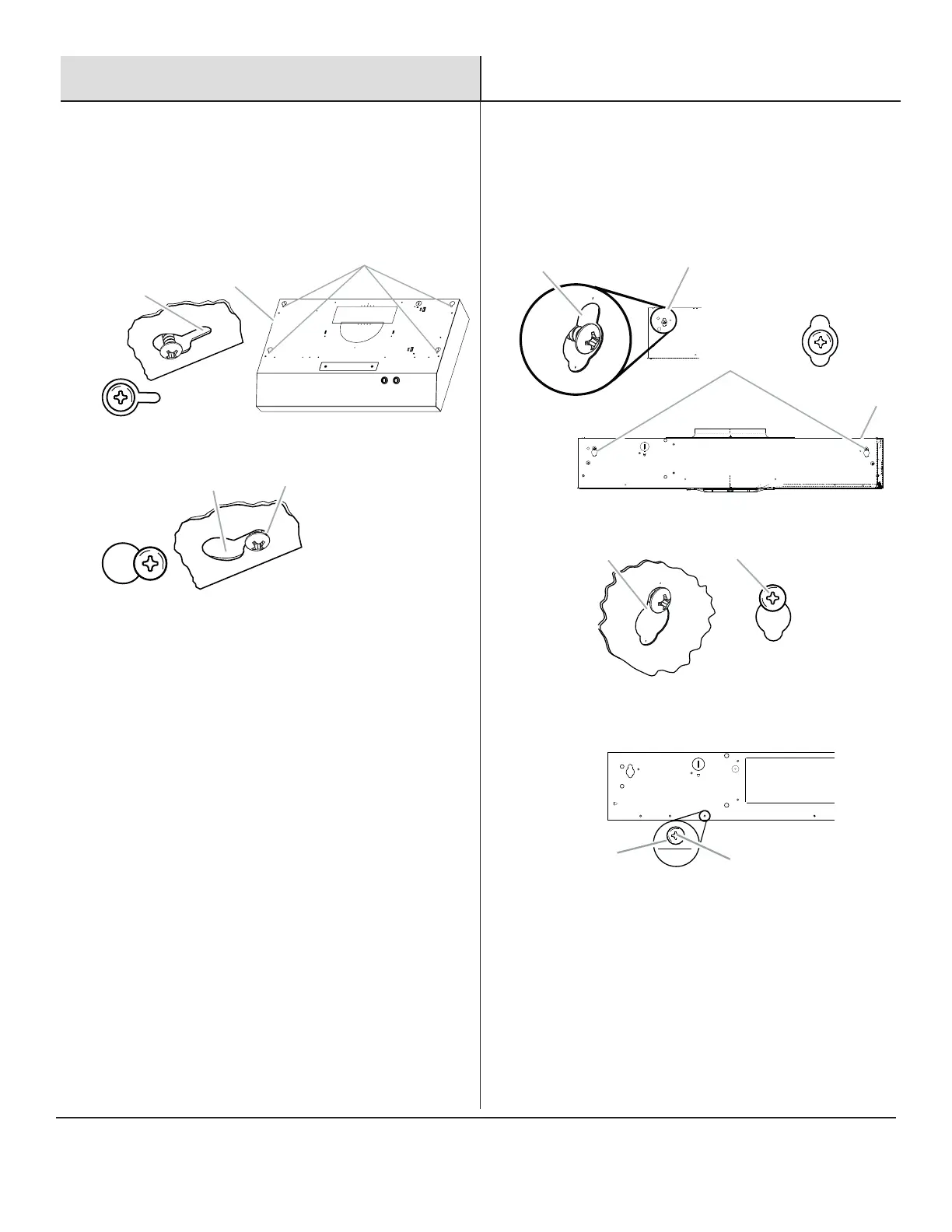

Installing via cabinet mounting
□ Lift the range hood (A) up under cabinet.
□ Position the range hood (A) so that the large end of the keyhole
slots (1) are over the mounting screws (AA).
1
A
AA
□ Then push the hood toward the wall so that the upper
mounting screws (AA) are in the neck of the slots (1).
1
AA
□ Tighten the mounting screws, making sure are in the narrow
neck of slots.
12
Installing via wall mounting
□ Lift the range hood (A) up under cabinet.
□ Position the range hood (A) so that the large end of the keyhole
slots (1) are over the mounting screws (CC).
1
1
A
□ Then push the hood down so that the upper mounting screws
(CC) are in the neck of the slots (1).
1
CC
□ Tighten mounting screws (CC).
□ Insert the two remaining upper mounting screws (CC) into the
security slots (2) to secure the hood.
CC
2
□ Replace the hood cover starting from the bottom.
□ Install the 4 screws securing the cover to the hood.
□ Finally, put the grease lter in place, the retaining clip and the
screw that secures the grease lter.
