Pre-Installation (continued)

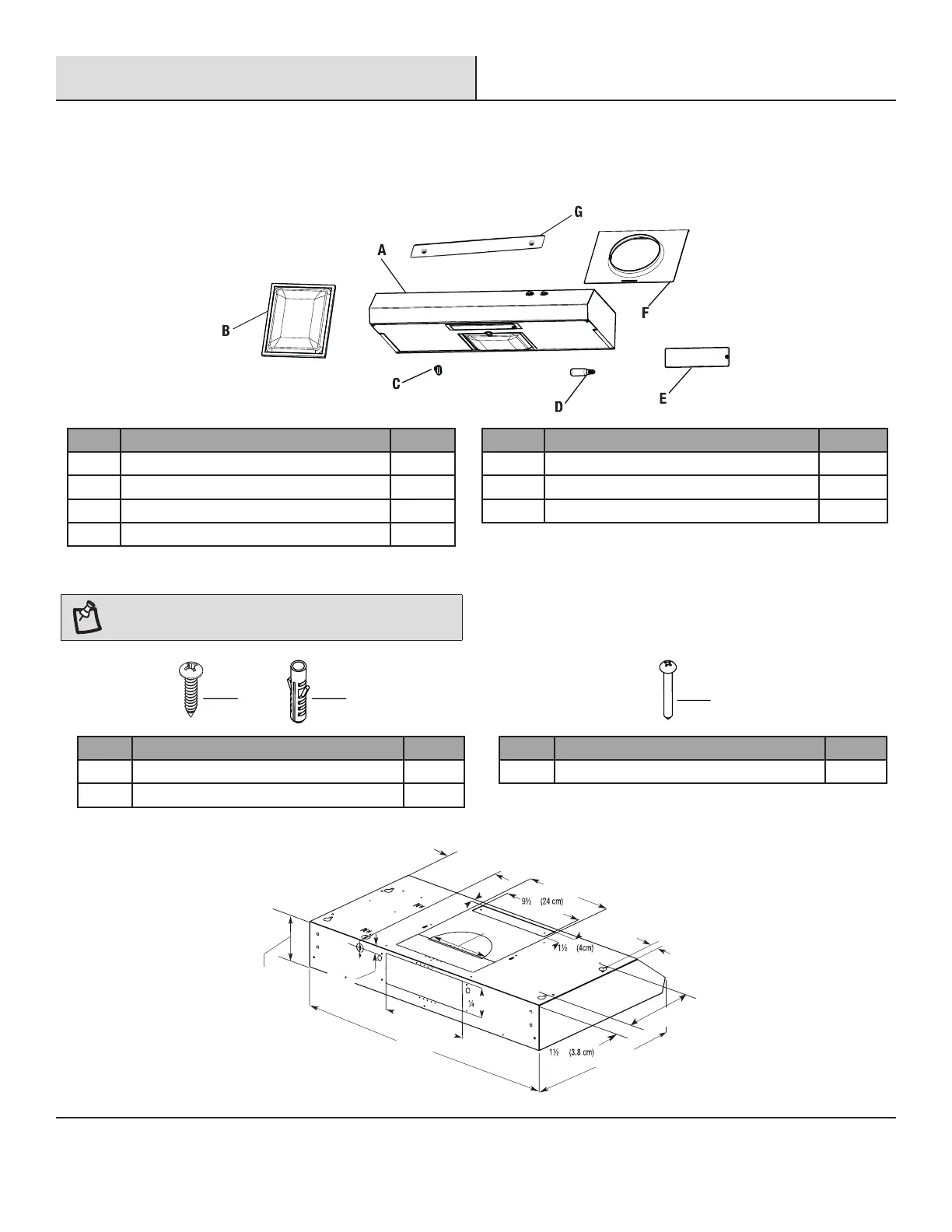

PACKAGE CONTENTS
Carefully check the range hood for damage and for missing parts prior to installation. If there is any damage or if you are missing parts,
do not proceed with the installation. Report damage and missing parts immediately. Do not dispose of packaging before you are satised
with your new range hood.
Part Description Quantity
A Range hood 1
B Filter 1
C Plastic retainer clip 2
D Lightbulb 1
Part Description Quantity
E Plastic lens cover 2
F Round adapter (located inside the hood) 1
G Recirculating vent cover 1
HARDWARE INCLUDED
NOTE: Parts not shown in actual size.
AA
BB
CC
Part Description Quantity
AA Upper mounting screws (4.5 mm x 13 mm) 4
BB Wall anchor (8 mm x 40 mm) 4
Part Description Quantity
CC Rear mounting screws (5 mm x 45 mm) 4
PRODUCT DIMENSIONS
6
9
/
16
(16.7 cm)
30 in.
(76.2 cm)
3
in.
(
8
.25 c
m
)
10 in. (25.4 cm
recirculating cover
recirculating cover
)
10 in. (25.4cm)
7 in.
(17.8 cm)
9
/ 16
(1.4 cm)
1in. (2.5 cm)
typical both sides
9 in. (22.9 cm)
typical both sides
18
5
/8 in.
(47.3 cm)
7
/
8
(2.2cm )
4
15
/
16
in.
(12.5cm)
typical both sides
in.
in.
in.
in.
in.
in.
