• SISI test
o Adjust time intervals and hearing level.
4.9.5 Audiogram and results table options

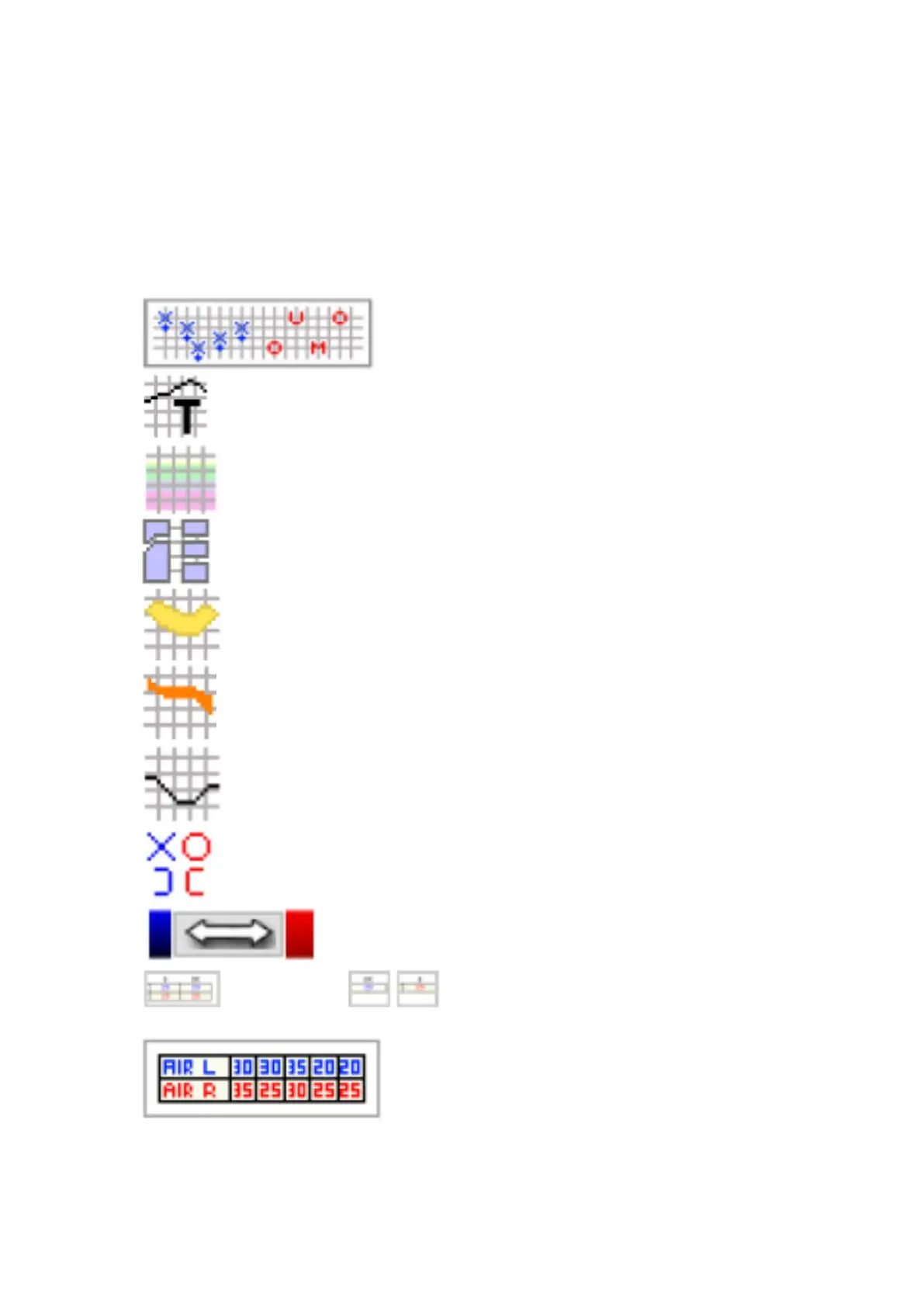

The following buttons within the Audiogram test screen/view screen changes the visual
appearance of the audiogram and results table:
Select the curve types to show in audiograms
Show or hide the Tomatis reference curve
Show or hide the ANSI 69 colour graph
Show or hide an overlay based on the audiogram
classification by Klockhoff/Dretner/Svedberg
Show or hide the speech banana
Show or hide the age graph
dB hearing level limit line
Show or hide the dB hearing level limit line
Show audiogram symbol legend
Swap left and right side of a measurement
Change the appearance of the audiogram table.
The table can appear either as one combined left/right-
table or as two individual tables
Select/deselect details to be displayed
Select or deselect details to be displayed in the table
4.9.6 Printing an Audiometry report
To print the audiometry report for a subject:
