Vitec Multimedia MGW Ace Decoder OG User Manual

MGW Ace Decoder OG
User Manual, Version 2.0 5
I/O Specifications
MGW Ace Decoder OG Rear Module (DEC-RM1)

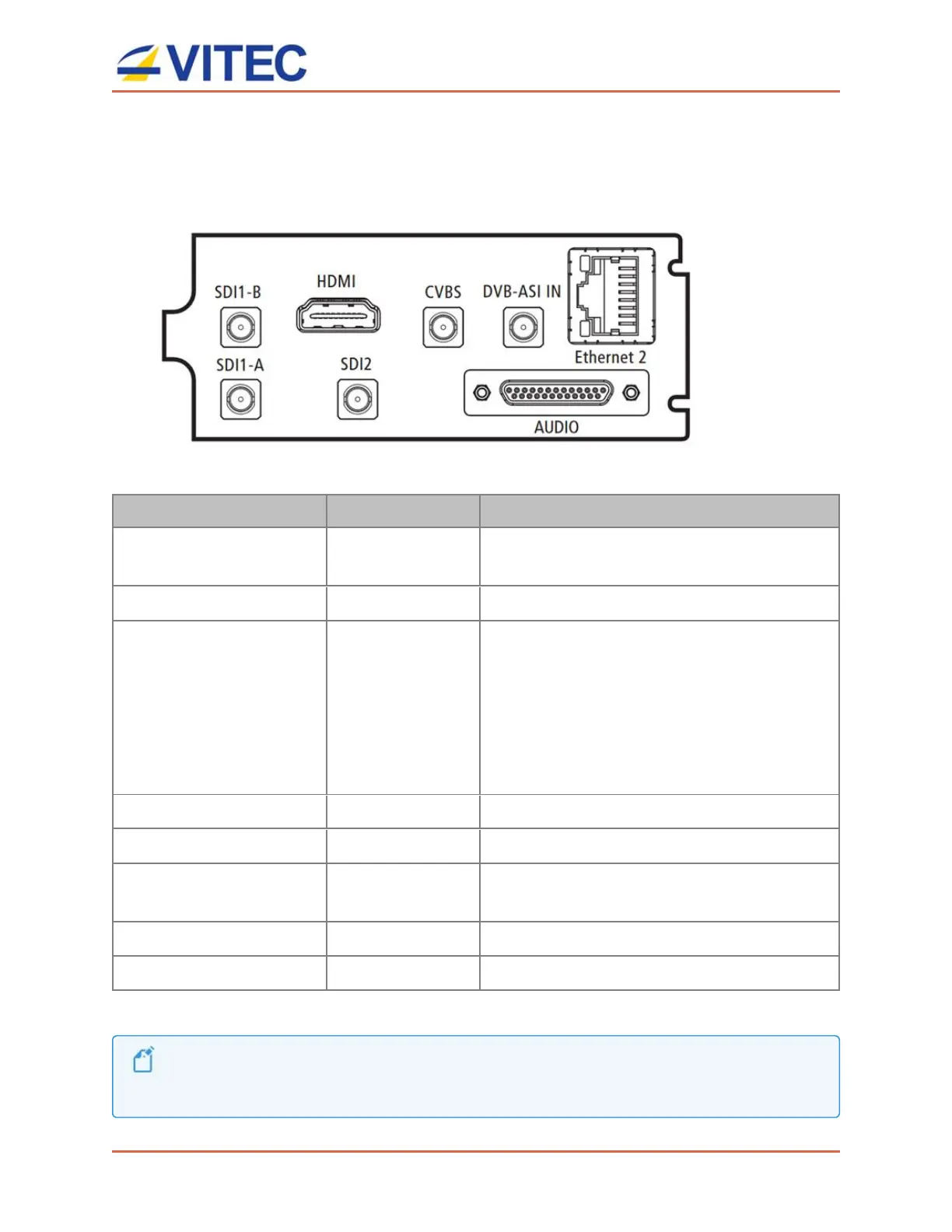

Figure 3-1: MGW Ace Decoder OG Rear Module (DEC-RM1)
Connector Label Connectors Description
Ethernet 2 RJ-45 Gigabit Ethernet for streaming and
management.
DVB-ASI IN BNC DVB ASI input
Serial/Audio/Genlock Multi-pin
connector
Breakout cable available (16647) with :
Digital Audio AES x2
Balanced Analog Stereo Audio
Unbalanced Analog Stereo Audio
Genlock 3
Serial (future)
CVBS BNC Composite output
SDI1-A BNC 12G-SDI output (up to 4Kp60)
SDI1-B BNC 12G-SDI output (up to 4Kp60) mirroring
SDI1-A
SDI2 BNC Secondary SDI output
HDMI HDMI Type A HDMI2.0 output (up to 4Kp60)

MGW Ace Decoder OG Ethernet 1 port isavailable through openGear shared Gigabit Ethernet port

Genlock reference inputs (1&2) from openGear chassisare connected to MGW Ace Decoder OG Genlock 1 and 2
(frame)
