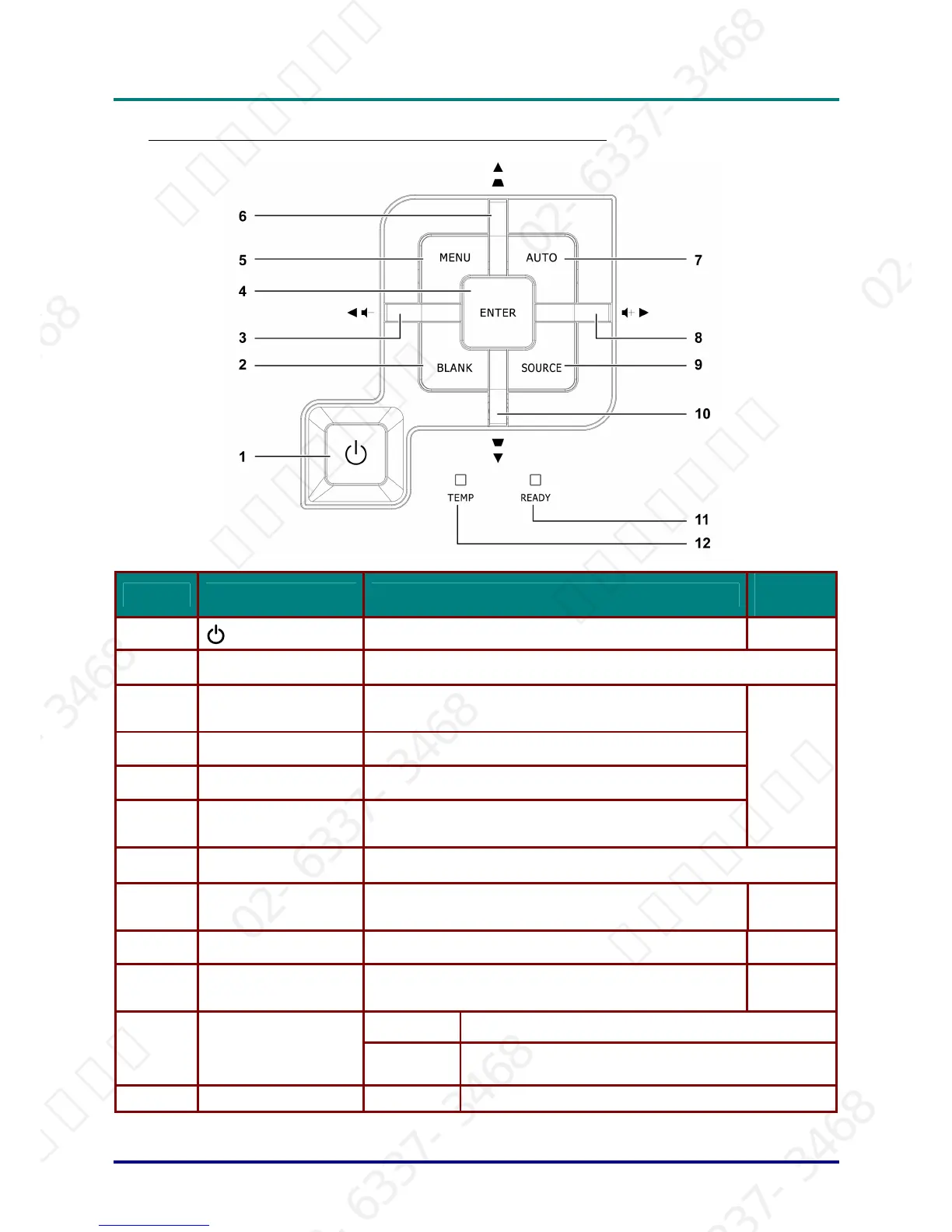

Top view—On-screen Display (OSD) buttons and LEDs
ITEM LABEL DESCRIPTION
SEE
PAGE:
1.
(Power button)
Turns the projector On or Off.
11
2.
BLANK Displays a blank screen and mutes audio
3.
◄ (Left cursor) /
Volume-
Navigates and changes settings in the OSD
Quick Menu – For Volume
4.
Enter Enter or confirm highlighted OSD menu item
5.
MENU Opens and exits OSD menus
6.
▲ (Up cursor) /
Keystone+
Navigates and changes settings in the OSD
Quick Menu – For Keystone
16
7.
AUTO Optimizes image size, position, and resolution
8.
► (Right cursor) /
Volume+
Navigates and changes settings in the OSD
Quick Menu – For Volume
16
9.
SOURCE Enter the Source menu
10
10.
▼ (Down cursor) /
Keystone-
Navigates and changes settings in the OSD
Quick Menu – For Keystone
16
Red Lamp is ready to be powered-on.
11.
READY LED
Flashing
Lamp is not ready (warming up/shutting down/cooling)
(see LED Error Messages on page 42)
12.
TEMP LED Flashing Error code
– 3 –
