Bottom view

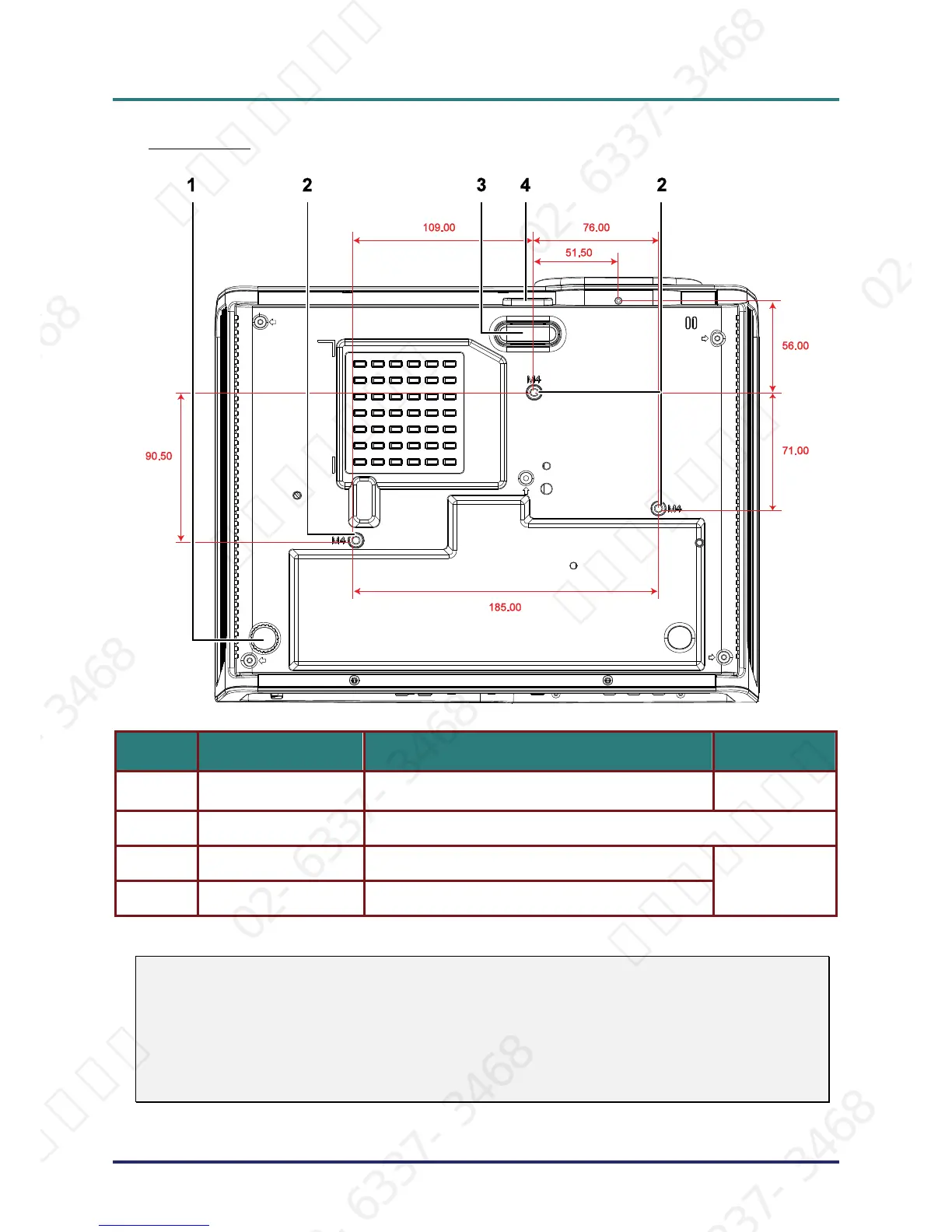

ITEM LABEL DESCRIPTION SEE PAGE:
1.
Tilt adjustor Rotate adjuster lever to adjust angle position.
13
2.
Ceiling support holes Contact your dealer for information on mounting the projector on a ceiling
3.
Height adjustor Adjuster drops down when adjuster button is pushed.
4.
Height adjustor button Push to release adjustor.
13
Note:
When installing, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 6 mm (0.23 inch).
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount
load capacity must exceed the weight of the installed equipment, and as an additional precaution
be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a
period of 60 seconds.
