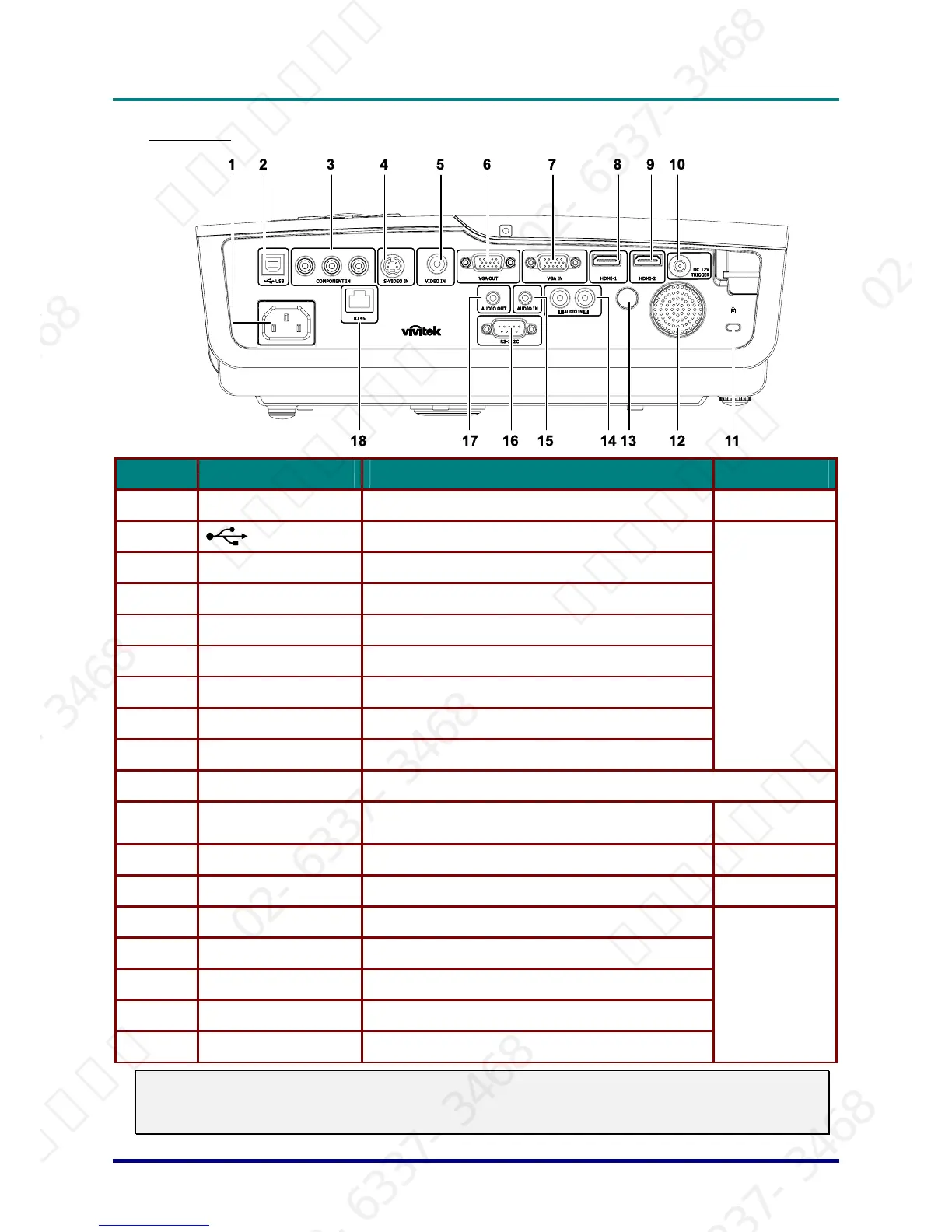

Rear view
ITEM LABEL DESCRIPTION SEE PAGE:
1.
AC IN Connect the POWER CABLE
11
2.
(USB)
For servicing purpose only
3.
COMPONENT IN Connect a component video enabled device
4.
S-VIDEO IN Connect the S-VIDEO CABLE from a video device
5.
VIDEO IN Connect the COMPOSITE CABLE from a video device
6.
VGA OUT Connect the RGB CABLE to a display
7.
VGA IN Connect the RGB CABLE from a computer
8.
HDMI – 1 Connect the HDMI
TM
CABLE from a HDMI
TM
device
9.
HDMI – 2 Connect the HDMI
TM
CABLE from a HDMI
TM
device
10
10.
DC 12V TRIGGER Connect the 12V OUT
11.
Kensington Lock
Secure to permanent object with a Kensington® Lock
system
40
12.
Speaker Outputs audio sound
10
13.
IR receiver Receive IR signal from remote control
6
14.
AUDIO IN (L and R) Connect the AUDIO CABLES from a audio device
15.
AUDIO IN Connect an AUDIO CABLE from the input device
16.
RS-232C Connect RS-232 serial port cable for remote control
17.
AUDIO OUT Connect an AUDIO CABLE for audio loop through
18.
RJ – 45 Connect a LAN CABLE from Ethernet
10
Note:
If your video equipment has various input sources, it is recommended to connect in priority of
HDMI
TM
, component, S-Video, Composite for better picture quality.
