Vivitek DU6771 - Terminal Configurations

DU6771 DLP Projector User Manual
54
UN67711216EN00

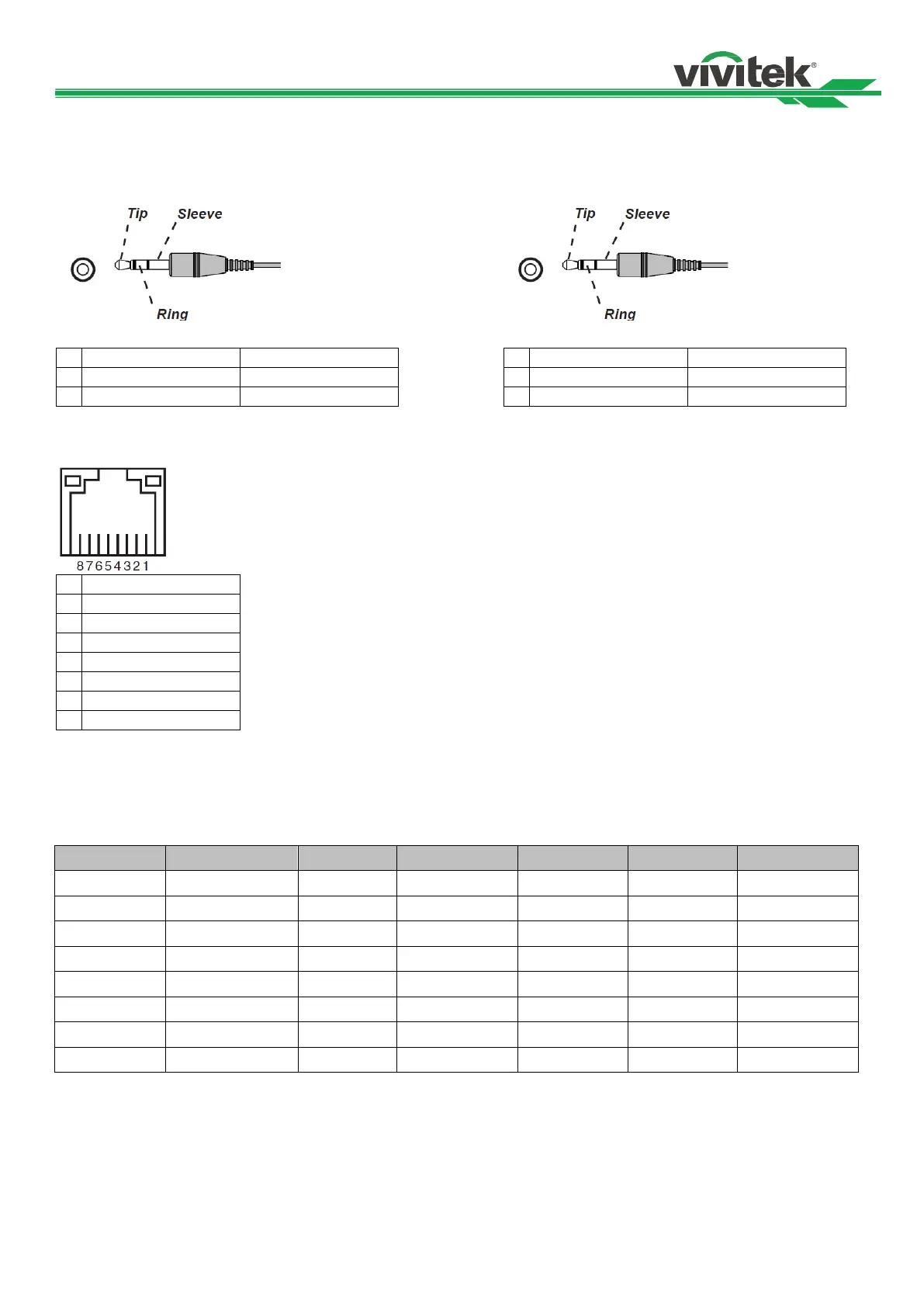

Screen Trigger
1
Tip
VCC(12V)
2
Sleeve-
Ground
3
Ring
Signal
Wired Remote
1
Tip
VCC(3.3V)
2
Sleeve-
Ground
3
Ring
Signal
HDBaseT/LAN Terminal (RJ-45)
1
TX+
2
TX-
3
TXC
4
Ground
5
Ground
6
RXC
7
RX+
8
RX-
DU6771 Lens Series
Eight types of optional electric lenses are available for the projector as below table. Contact the authorized dealer of
Vivitek for details.
Part Number Lens Name F Number Focal Length Zoom Ratio Screen Size Throw Ratio
D88-UST01 Ultra Short Throw 2.0 5.64mm --- 100”-350” 0.377:1
D88-UWZ01 Ultra Wide Zoom 1.96-2.3 11.3-14.1mm 1.25:1 40"-500" 0.75-0.93:1
D88-WF18501 Wide Fix 1.85 11.6mm --- 40"-500" 0.76:1
D88-WZ01 Wide Zoom 1.85-2.5 18.7-26.5mm 1.41:1 40"-500" 1.25-1.79:1
D88-ST001 Standard Lens 1.7-1.9 26-34mm 1.3:1 40"-500" 1.73-2.27:1
D88-SMLZ01 Semi Long Zoom 1.86-2.48 32.9-54.2mm 1.65:1 40"-500" 2.22-3.67:1
D88-LOZ101 Long Zoom 1 1.85-2.41 52.8-79.1mm 1.5:1 40"-500" 3.58-5.38-1
D88-LOZ201 Long Zoom 2 1.85-2.48 78.5-121.9mm 1.55:1 40"-500" 5.31-8.26:1
 The best performance of above zoom lenses is within vertical shift 0-50%, horizontal shift ±10%, the projector may
support to wider adjustable shift range for flexibility in installation.
 D88-WF18501 and D88-UST01 are fixed lens, the vertical and horizontal shift range of the projection lenes are 0%,
the corners of the projected image may appear shadows or distortion if lens is shifted horizontally or vertically.
 For best projection performance, support kits for D88-UST01 lens is required, please refer to the installation manual
of D88-UST01 for the details.
