STEP 5
STEP 6

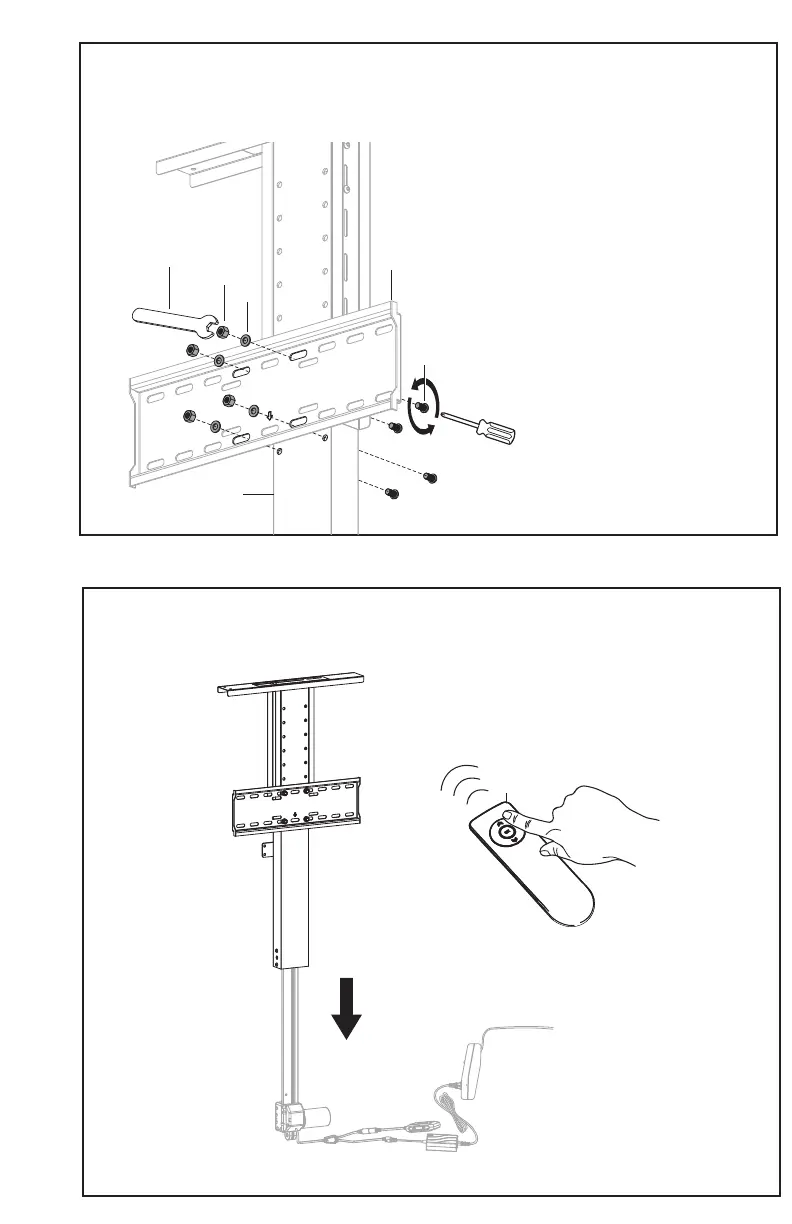

Attach VESA Plate (B) to Li Column (A) using M8x15mm Screws (S-E), M8 Washer (S-F), M8 Nut
(S-G), 13mm Wrench (T-A), and a Phillips screwdriver. Make sure the arrow on VESA Plate (B) is
facing towards the motor.
NOTE:
The nuts and washers MUST be installed
on the front of the VESA plate to prevent
the column from binding.
T-A
S-G
S-F
B
H
S-E
Retract the mount by pressing the up arrow or the “OK” button on RF Remote (H).
A
To Next Page
