STEP 7

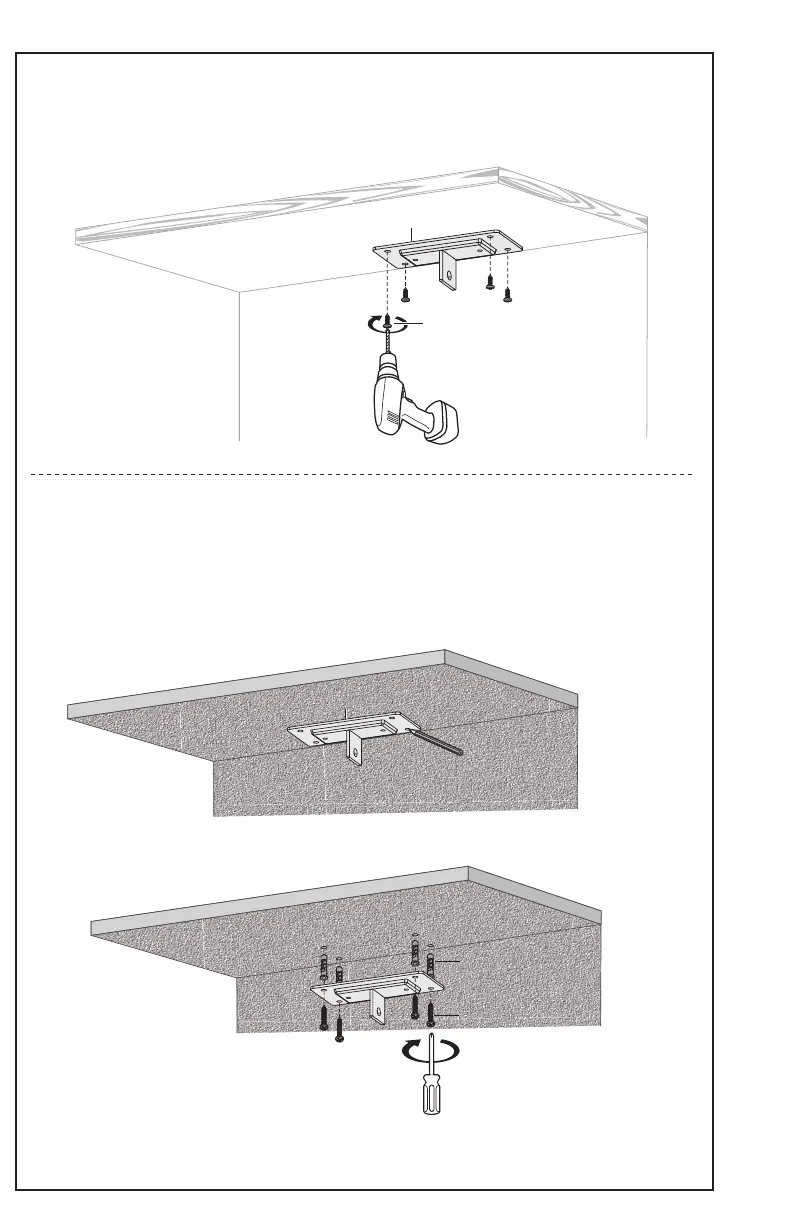

Wood Installation:
Hold Ceiling Plate (I) up to desired mounting location making sure one of the long edges is making
contact with the back support wall. Secure Ceiling Plate (I) using ST5.5x16mm Screws (W-A) and a drill.
Concrete/Brick Installation:
Hold Ceiling Plate (I) up to desired mounting location making sure one of the long edges is making
contact with the back support wall. Mark hole locations using a pencil or marker. Drill 1.8” (45mm)
deep holes using a 5/16” (8mm) drill bit. Insert Concrete Anchors (W-C) and install Ceiling Plate (I)
using ST5.5x38mm Screws (W-B) and a Phillips screwdriver.
W-A
I
II
W-CW-C
W-BW-B
