VIVOTEK

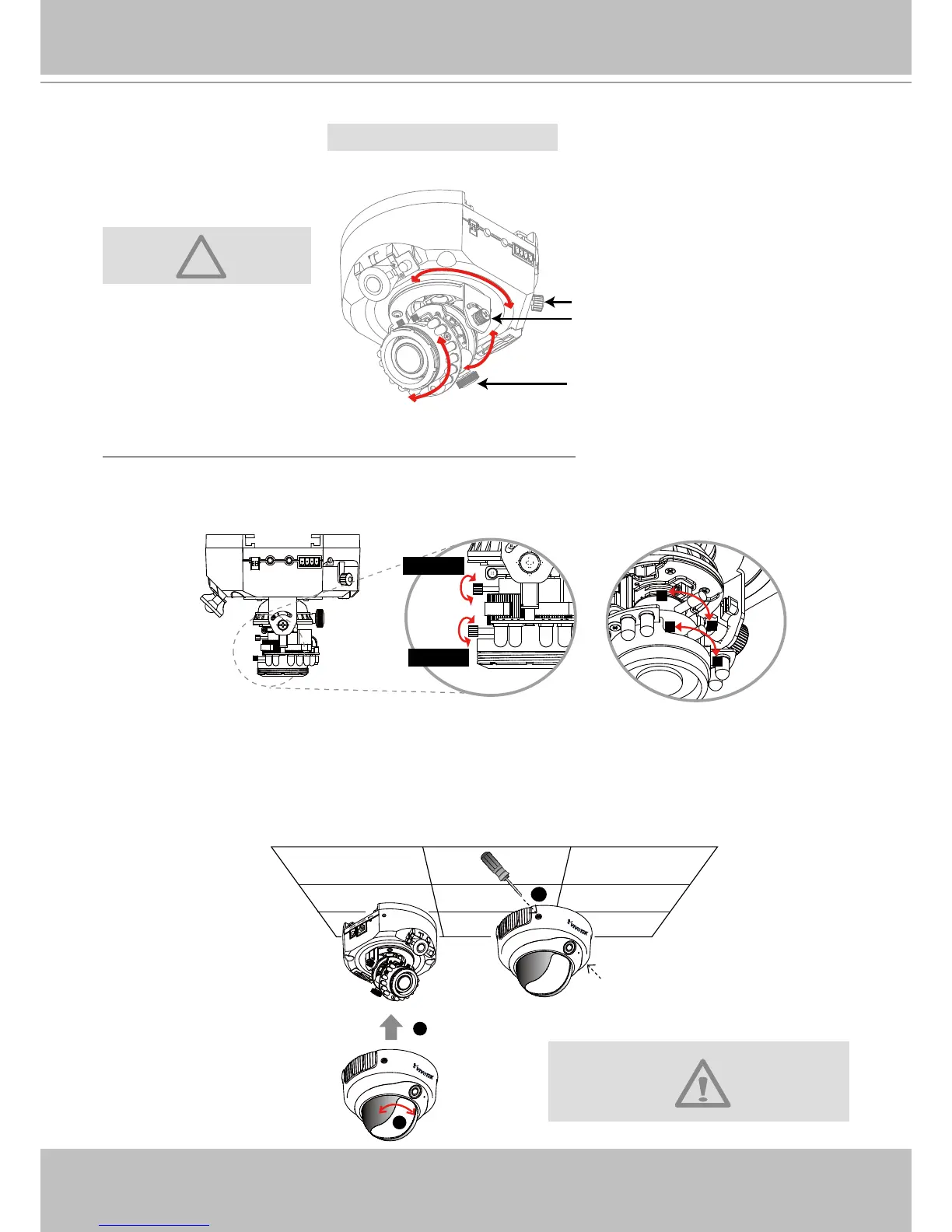

12 - User's Manual
The sophisticated 3-axis mechanism design offers very exible, easy hardware installation for
either ceiling or wall mount�
To adjust the zoom factor and focus range
1� Loosen the zoom controller to adjust the zoom factor� Upon completion, tighten the zoom
controller�
2� Loosen the focus controller to adjust the focus range� Upon completion, tighten the focus
controller�
Completion
1. Rotate the black cover inside the dome cover to t the lens shooting direction.
2� Attach the dome cover to camera�
3� Secure the two dome screws with a screwdriver� Finally, make sure all parts of the camera are
securely installed�
3-axis Mechanism Design
Pan 350°
Rotate 350°
Tilt 85°
Pan Adjustment Screw
Tilt Adjustment Screw
Rotation Adjustment Screw
DO NOT over rotate the lens� Doing
so will damage the camera lens
module
Audio In
1 2 3 4
AV Out
ON
Int. NTSC
1 2
Ext PAL
W
T
8
N
Loosen
Tighten
2
3
1
The supplied screwdriver is exclusively
designed to match the dome screws� In case
you will need to adjust the lens later, do not
discard the screwdriver�
