VIVOTEK
4 - User's Manual

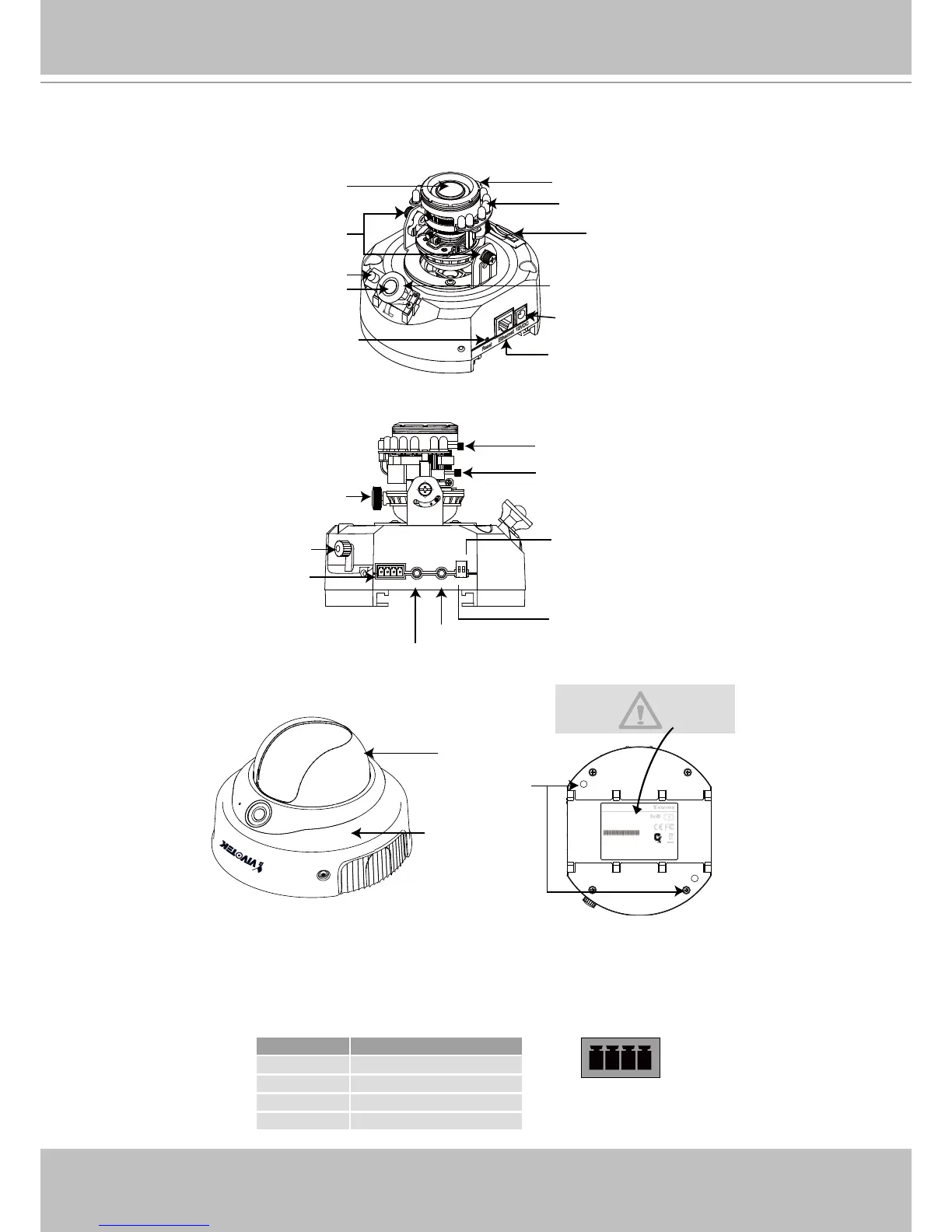

Physical Description
General I/O Terminal Block
This Network Camera provides a general I/O terminal block which is used to connect external
input / output devices. The pin denitions are described below.
1 2 3 4
Pin Name
1 Power +12V
2 Digital Output
3 Digital Input
4 Ground
Audio In
1 2 3 4
AV Out
ON
Int. N TSC
1 2
Ext PA L
Focus Controller
Zoom Controller
General I/O
Terminal Block
Audio/Video Out
Audio In
External/Internal Microphone
Switch
Pan Adjustment
Screw
Rotation Adjustment
Screw
NTSC/PAL Switch
Lens
Tilt Adjustment Screw
Built-in Microphone
PIR Sensor
IR LEDs
Power Cord Socket
Ethernet 10/100 RJ45 Socket
Recessed Reset Button
Status LED
Light Sensor
SD/SDHC Card Slot
Keep a note of the MAC address
before installing the camera�
Network Camera
Model No: FD8161
Made in Taiwan
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Pat. 6,930,709
RoHS
C I
MAC:0002D107258A
Drill Holes
Dome Cover
Black Cover
