Network Deployment
Setting up the Network Camera over the Internet
This section explains how to congure the Network Camera to an Internet connection�
1. If you have external devices such as sensors and alarms, connect them to the general I/O
terminal block�
2� Connect the camera to a switch via Ethernet cable�
3� Connect the power cable from the Network Camera to a power outlet�
There are several ways to set up the Network Camera over the Internet� The rst way is to set
up the Network Camera behind a router� The second way is to utilize a static IP� The third way is
to use PPPoE�
Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below�

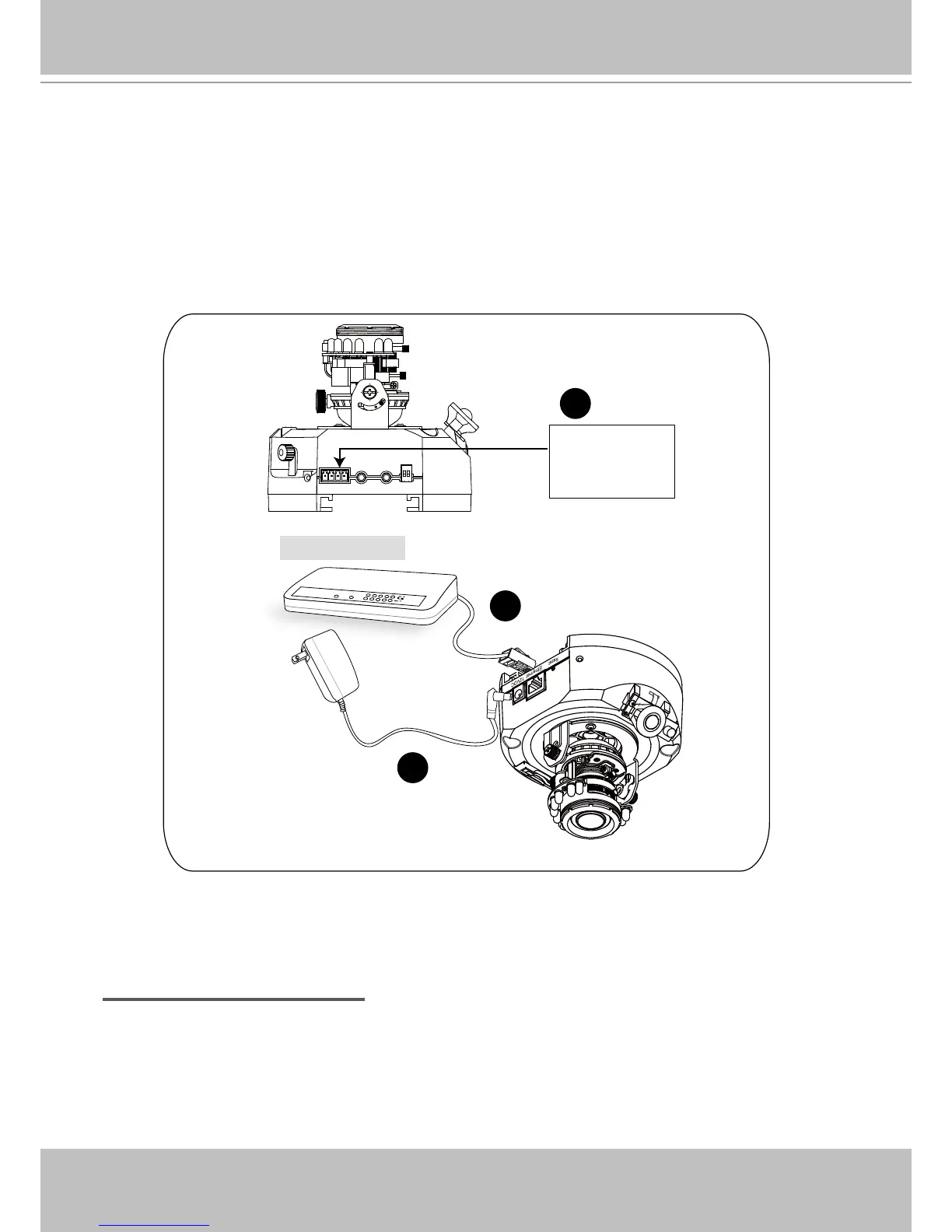

1� Connect your Network Camera behind a router, the Internet environment is illustrated below�
Regarding how to obtain your IP address, please refer to Software Installation on page 10 for
details�
POW ER
COLLISION
LINK
RECEI VE
PARTITI ON
1
2
3
4
5
2
3
Ethernet Switch
1: Power
2: Digital output
3: Digital input
4: Ground
Audio In
1 2 3 4
AV Out
ON
Int. NT SC
1 2
Ext PAL
1
