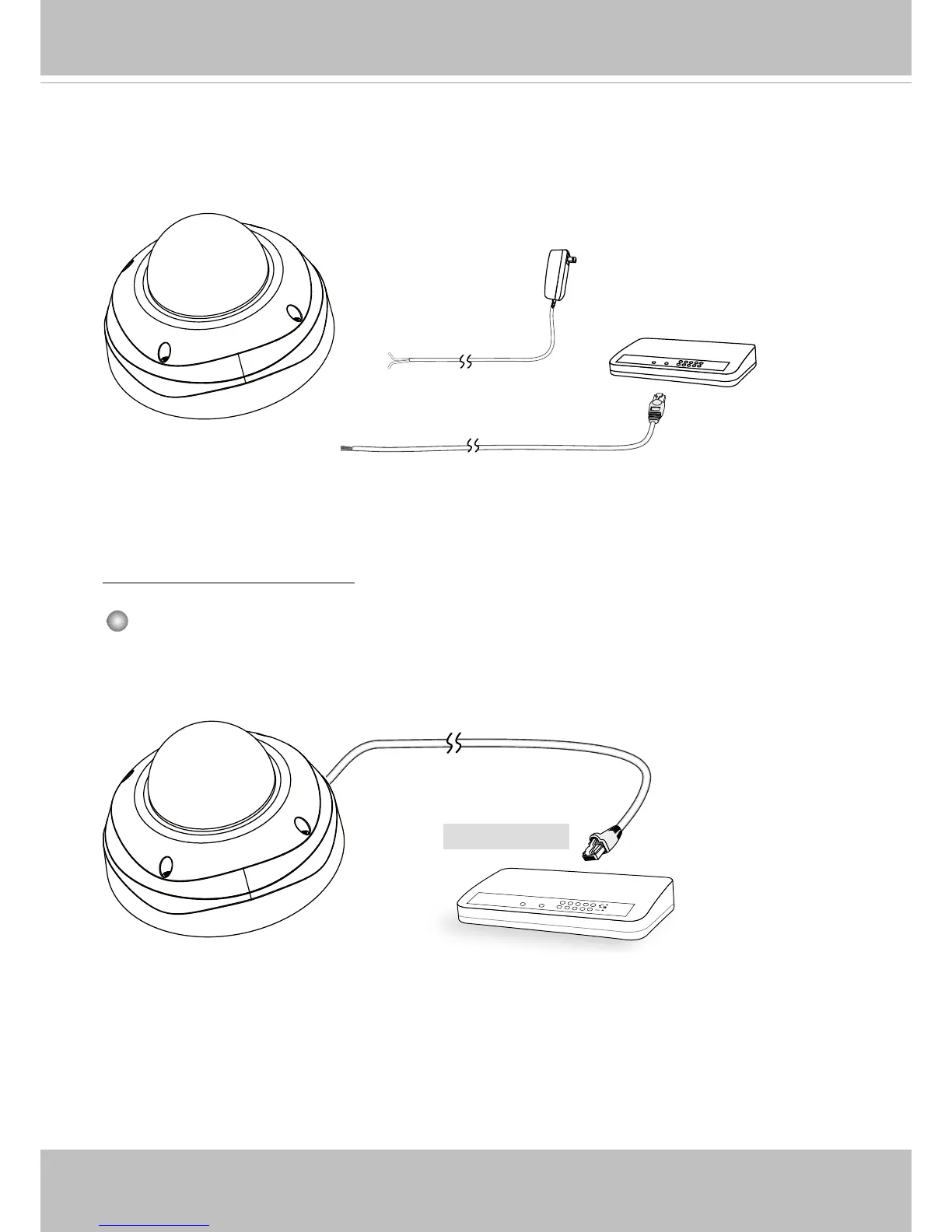

Network Deployment
General Connection (without PoE)
POW
ER
C
O
LL
I
S
ION
L
I
N
K
RE
CEIVE
PARTITIO
N
1
2
3
4
5
1� Connect RJ45 Ethernet cable to a switch�
Use a Category 5 Cross Cable when your
network camera is directly connected to
PC�
2� Connect the AC cables from the terminal
block as an alternate power source� The
IO cables are user-supplied�
Ethernet
Non-PoE Switch
Pin 1
Pin 2
AC 24V±10%
Black
Red
Power over Ethernet (PoE)
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
PoE Switch
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data via a sin-
gle Ethernet cable� Follow the below illustration to connect the Network Camera to a PoE-
enabled switch via Ethernet cable�
