VIVOTEK
User's Manual - 9
IMPORTANT!
Connect power lines and if you have external devices such as sensors and alarms, make
the connection from the general I/O terminal block�
Cabling Assembly
Power and IO cables pass through a waterproof
connector� The Ethernet cable should be routed
through a rubber seal plug� All cables are user-
supplied�
The dome cover should be removed rst because if it should fall during the installation
process, physical injury could occur to your co-workers�
Top View
Dome Cover
Dome Cover Retainer
For Ethernet Cable
For Power & IO Cables
Top View

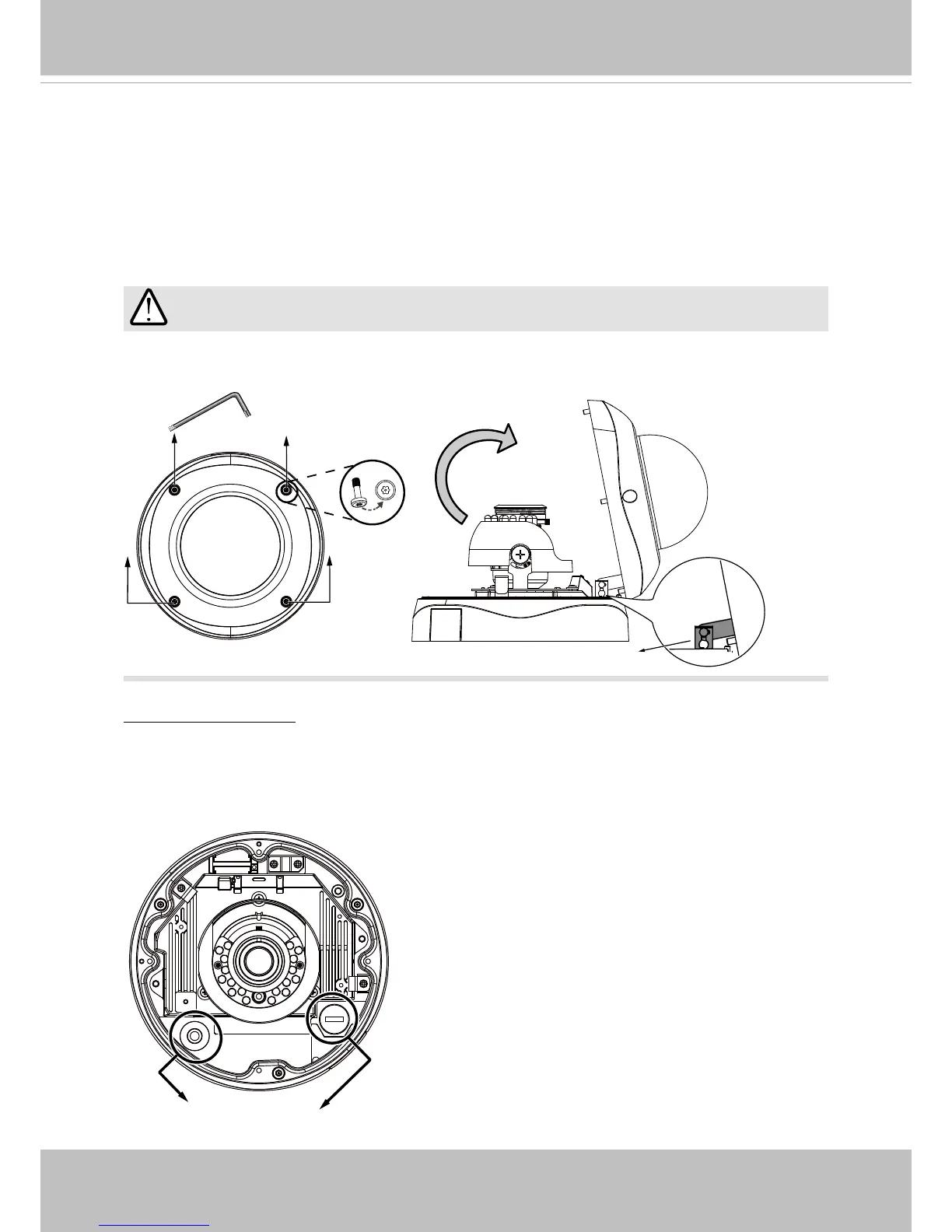

Installation
Removing Dome Cover
First, use the included T20 hex key wrench to loose the four screws and detach the dome
cover from the camera base� Follow the steps below to install the camera either to a ceiling
or a wall�
To Next Page
