Vivotek ND8322P User Manual

VIVOTEK - Built with Reliability
User's Manual - 141
root

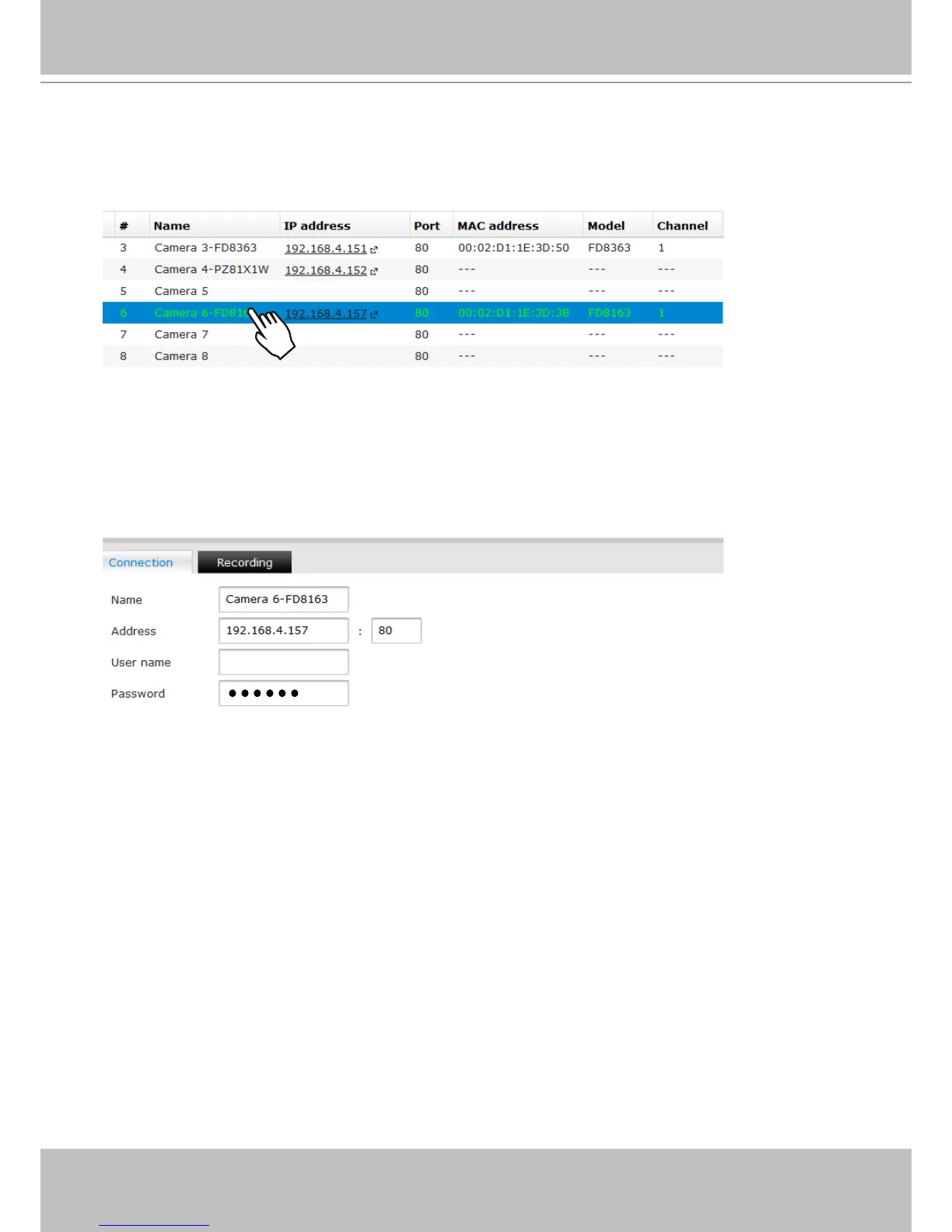

Left-click to select a camera, and edit the Connection and Recording conguration below:
1. Connection - You can rename the camera, and if your camera comes with password
protection, enter its User name and Password here. Otherwise, you will not be able to
manage or access the camera.
If preferred, the acceptable characters for a new camera name can be: [0-9][a-z][A-Z][_][-][ ].
The max. number of alphabetic and numeric characters is 64.
For a user name, the acceptable characters for a camera name can be: [0-9][a-z][A-Z][_][^][-][.]
[@][~][!][$][%]. The max. number of characters is 64.

Vivotek ND8322P Specifications

General

Card reader integrated	-
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
HDD capacity	6144 GB
Maximum storage capacity	12288 TB
Number of HDDs installed	2
Total installed storage capacity	12288 GB
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	8 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	1 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
