158 - User's Manual
The access control applies to the access from a web client over HTTP and RTSP protocols.
Three access conguration options are available:
1. Allow all: Allows access from all IP addresses.
2. Allow only: Allows access only from the listed IPs. You should manually enter the IPs for
computers that need to access the NVR.
Note that you can use the asterisk (*) mark to represent all decimal numbers in each
individual octet of the range of IP address: such as using 172.16.0.* for addresses ranging
from 172.16.0.1 to 172.16.0.254.
A decimal number between two asterisks, e.g., <172.*.10.*>, is considered as invalid.

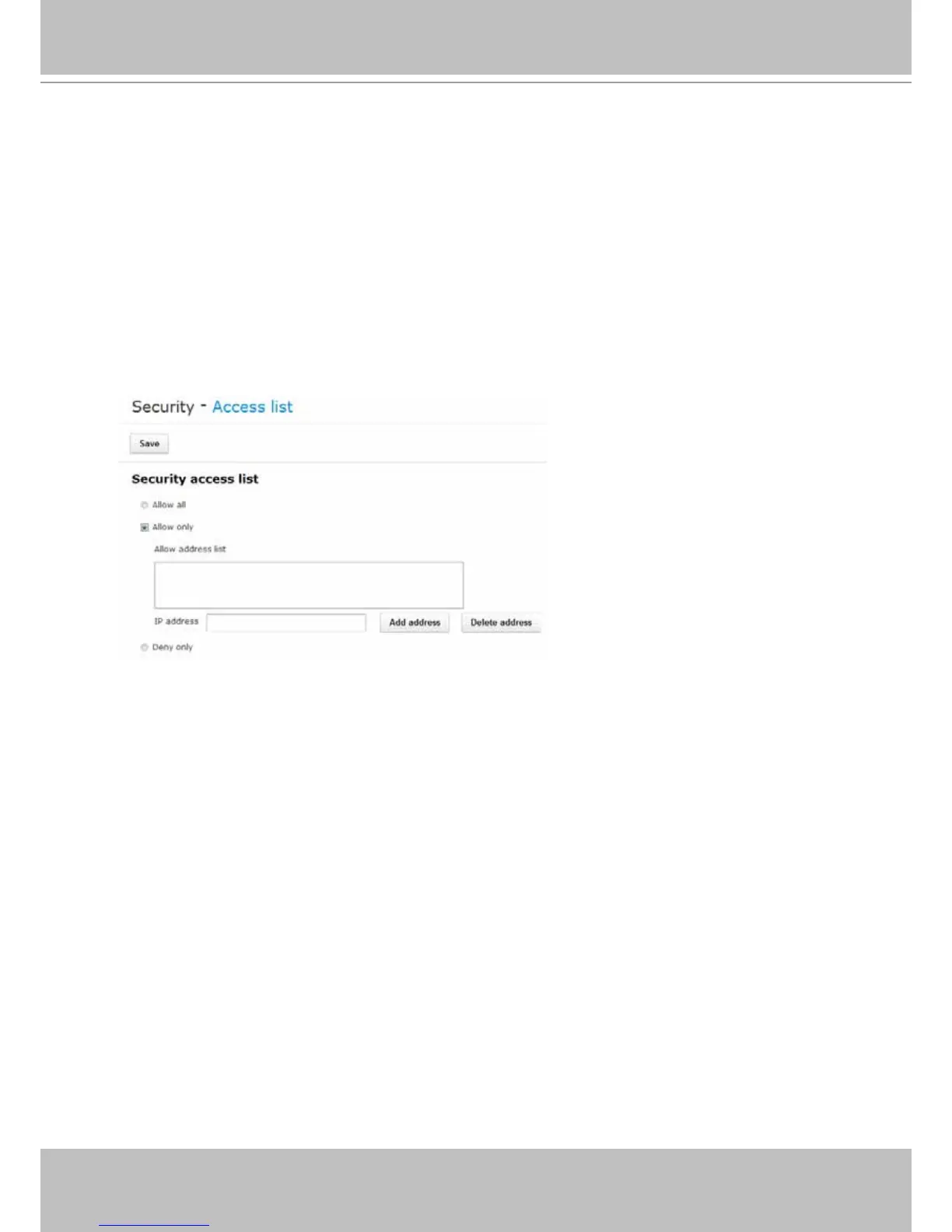

5-5-2. Access list
3. Deny only: Denies the access from the listed IPs. You should manually enter the IPs for
computers that will be blocked out from the access. The conguration details is the same as
those for the Allow only methodology.

Vivotek ND8322P Specifications

General

Card reader integrated	-
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
HDD capacity	6144 GB
Maximum storage capacity	12288 TB
Number of HDDs installed	2
Total installed storage capacity	12288 GB
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	8 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	1 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
