Vivotek ND8322P User Manual

VIVOTEK - Built with Reliability
42 - User's Manual
Chapter Three
Configuation Using the Local Console
The Main Control Portal

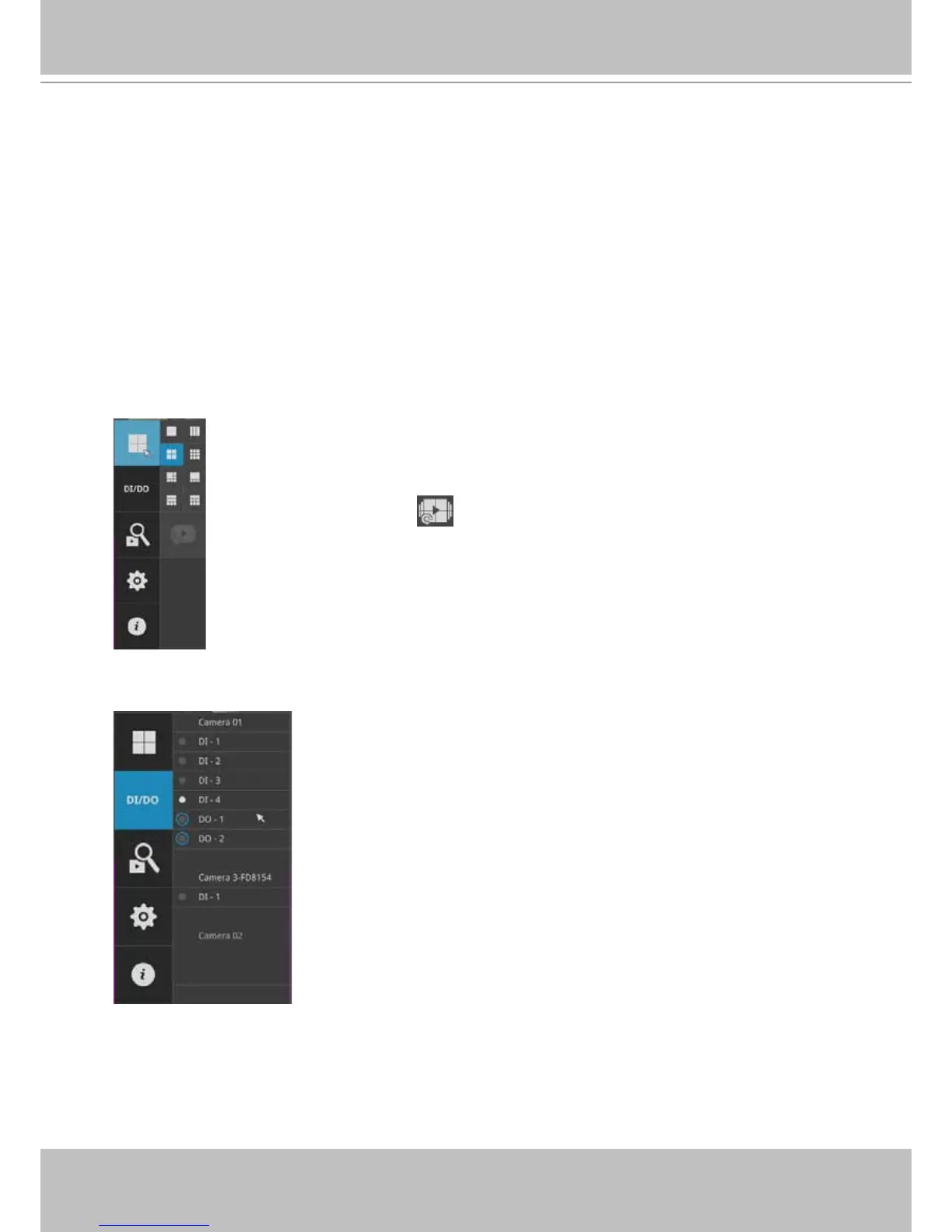

3-1. Layout
The rst functional button is Layout. You can select the 1x1, 1x3, 2x2, 3x3, 1+5,
1+3, 1+1+3, or 1+3+3 layout as the screen display. If you select the single view
layout, the rotation button
will appear. Click the rotation button below to
let the system swap the display of different cameras by every 10 seconds. The
rotation speed is congurable via Settings > System > Display.
Move your mouse cursor across the screen to display the portal.
3-2. DI/DO
Click on the DI/DO button to display the full list of all DI and DO
signals (whether they are connected or not) from all cameras in the
conguration. If a digital input signal is triggered, e.g., the DI-4 on the
left, its indicator will turn solid white.

Vivotek ND8322P Specifications

General

Card reader integrated	-
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
HDD capacity	6144 GB
Maximum storage capacity	12288 TB
Number of HDDs installed	2
Total installed storage capacity	12288 GB
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	8 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	1 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
