168 - User's Manual
1
2
3

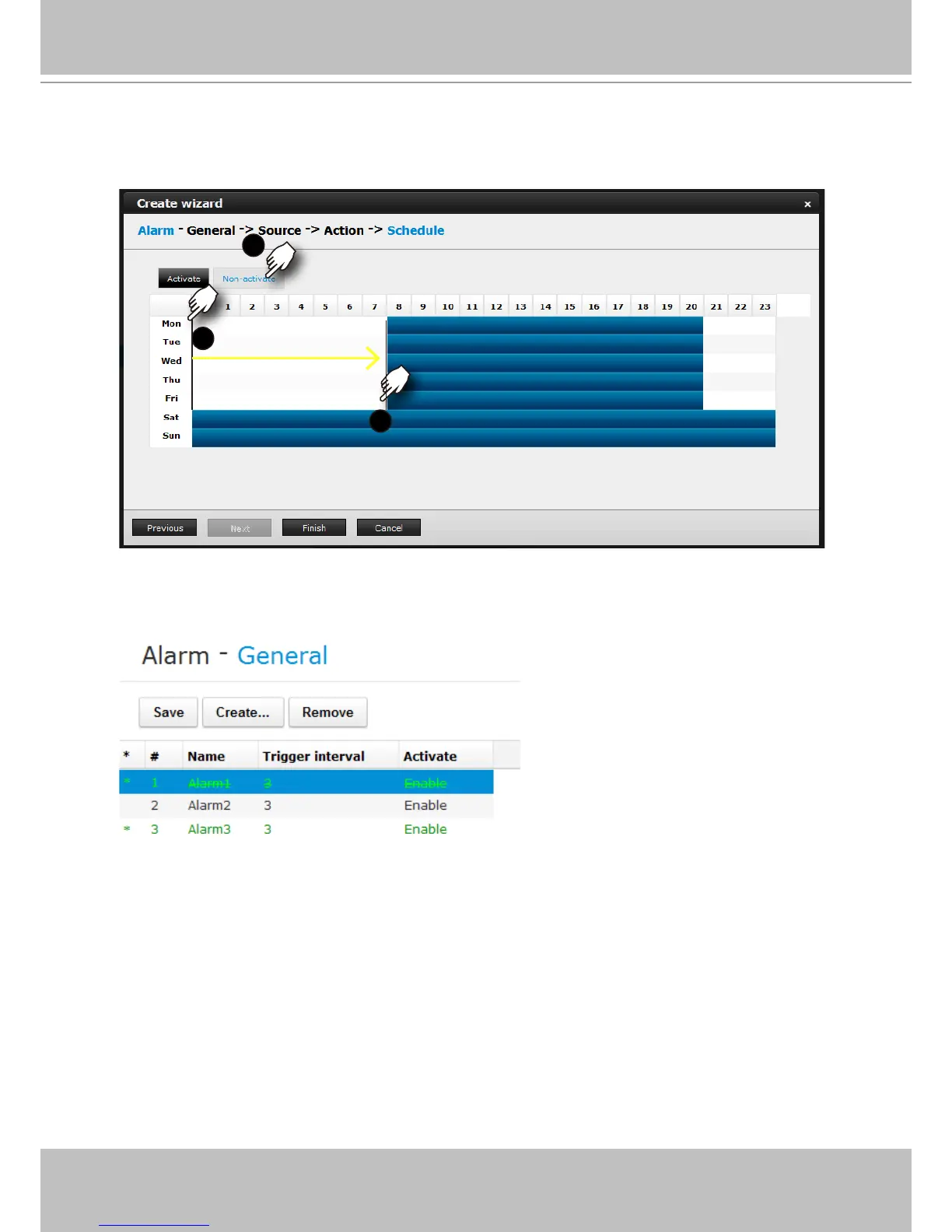

5. On the Schedule page, you can select to activate or de-activate alarm triggers throughout a
specic time. For example, in some situations you can disable the alarm triggers during the
ofce hours, and choose to enable the triggers only during the off-ofce hours.
6. Click Finish to end the conguration. A congured instance will appear in lighter color and an
asterisk mark in front to distinguish it as a changed entry that has not been applied.
7. Click Save to preserve and enable your alarm setting.
8. Repeat the process above to create more alarms according to the needs in your surveillance
deployment.

Vivotek ND8322P Specifications

General

Card reader integrated	-
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
HDD capacity	6144 GB
Maximum storage capacity	12288 TB
Number of HDDs installed	2
Total installed storage capacity	12288 GB
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	8 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	1 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
