VIVOTEK - Built with Reliability
172 - User's Manual

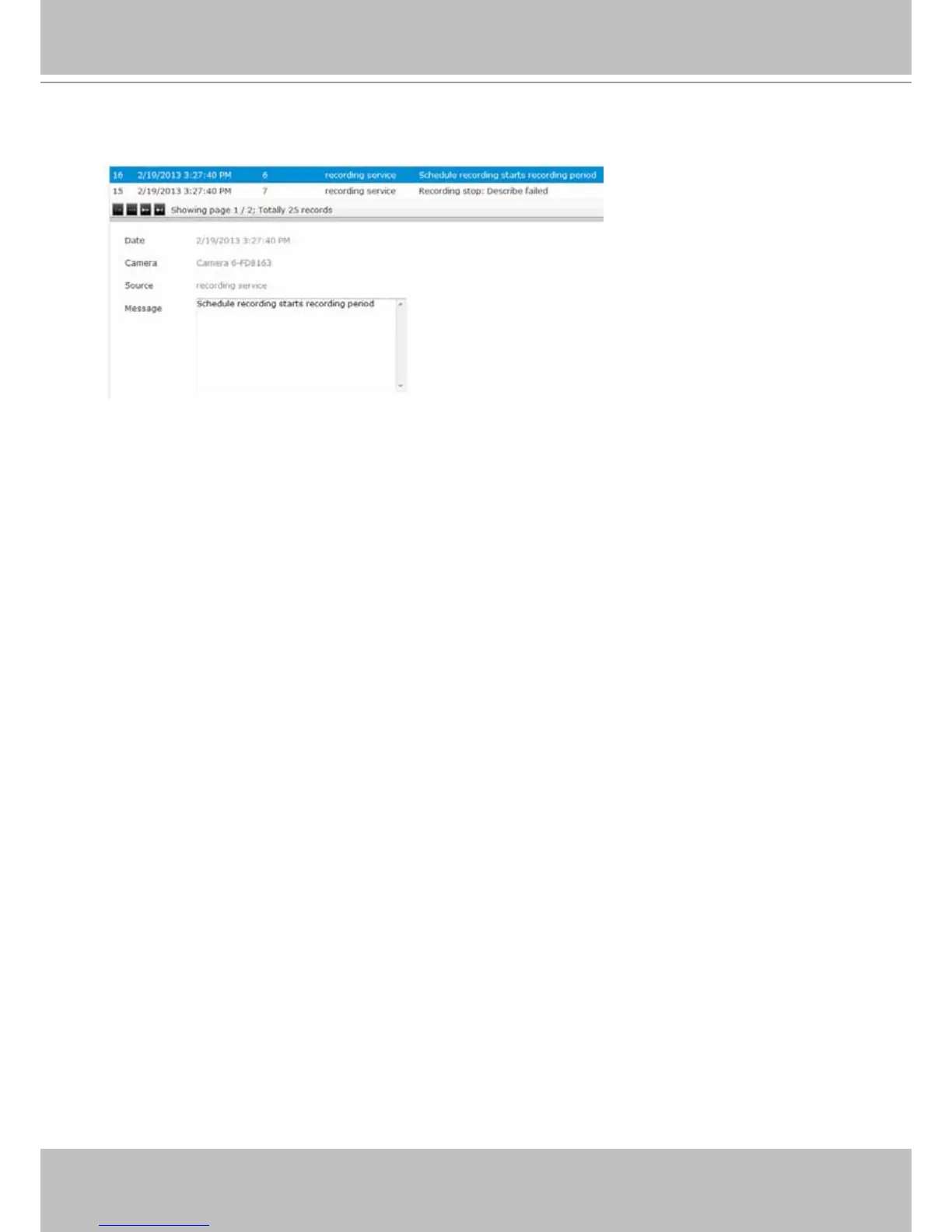

The following information is shown with each event log:
1. Level: The following severity level can be applied to an event.
1-1. Error: Conguration errors such as lack of system memory or a faulty camera password.
1-2. Info: General information such as acquiring an IP from DHCP server.
1-3. Warning: Conguration and operation errors such as re-starting server service.
1-4. Cong: Events that are generated due to conguration changes, such as a change in
address or that to a camera conguration.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Vivotek ND8322P and is the answer not in the manual?

Vivotek ND8322P Specifications

General IconGeneral
Card reader integrated-
USB 2.0 ports quantity3
Ethernet LAN data rates10, 100, 1000 Mbit/s
Power over Ethernet (PoE)Yes
Ethernet LAN (RJ-45) ports1
HDD capacity6144 GB
Maximum storage capacity12288 TB
Number of HDDs installed2
Total installed storage capacity12288 GB
Power consumption (max)120 W
CertificationCE, LVD, FCC, VCCI, C-Tick, UL
LED indicatorsHDD, Power, Status, eSATA
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95 %
Maximum resolution2560 x 1920 pixels
Alarm input channels8
Video input channels8 channels
Alarm output channels4
Video formats supportedH.264
Resolution at capture speed1920x1080@120fps
Minimum RAM1 GB
Weight and Dimensions IconWeight and Dimensions
Depth311 mm
Width360 mm
Height44 mm
Weight2700 g
