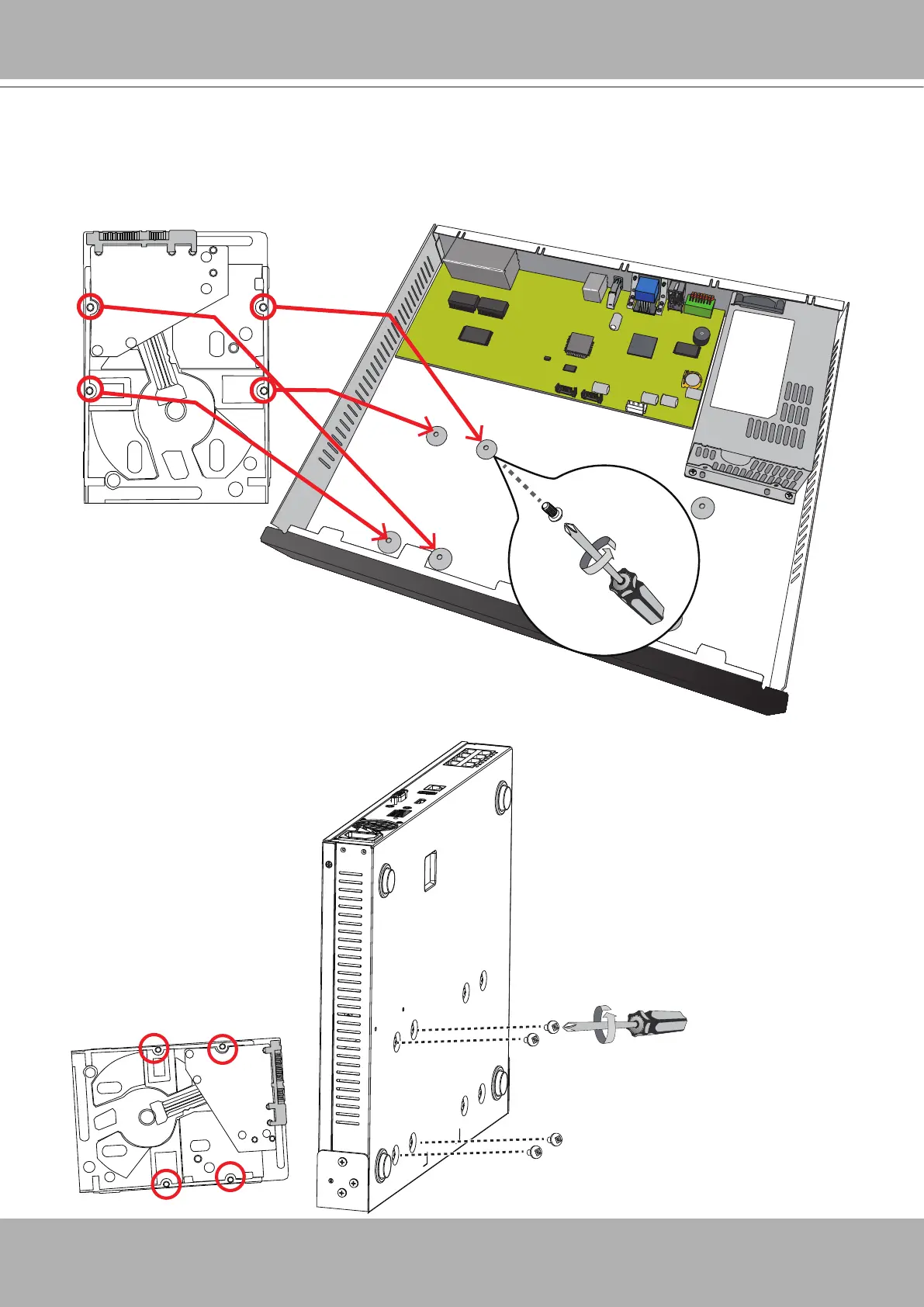

5. Install hard drives to the chassis. Note that the screws pass through the bottom of the chas-
sis and secure the hard drives using the mounting holes at the bottom of hard drives. When
installing hard drives, their label side should be facing up, and the connector side facing the
inside of the chassis.
When matching the screws and mounting holes on hard
drives, you can let the enclosure stand on its side. Install
two hard drives from the bottom of the chassis.
