Vivotek ND9322P User Manual

VIVOTEK - Built with Reliability
22 - User's Manual

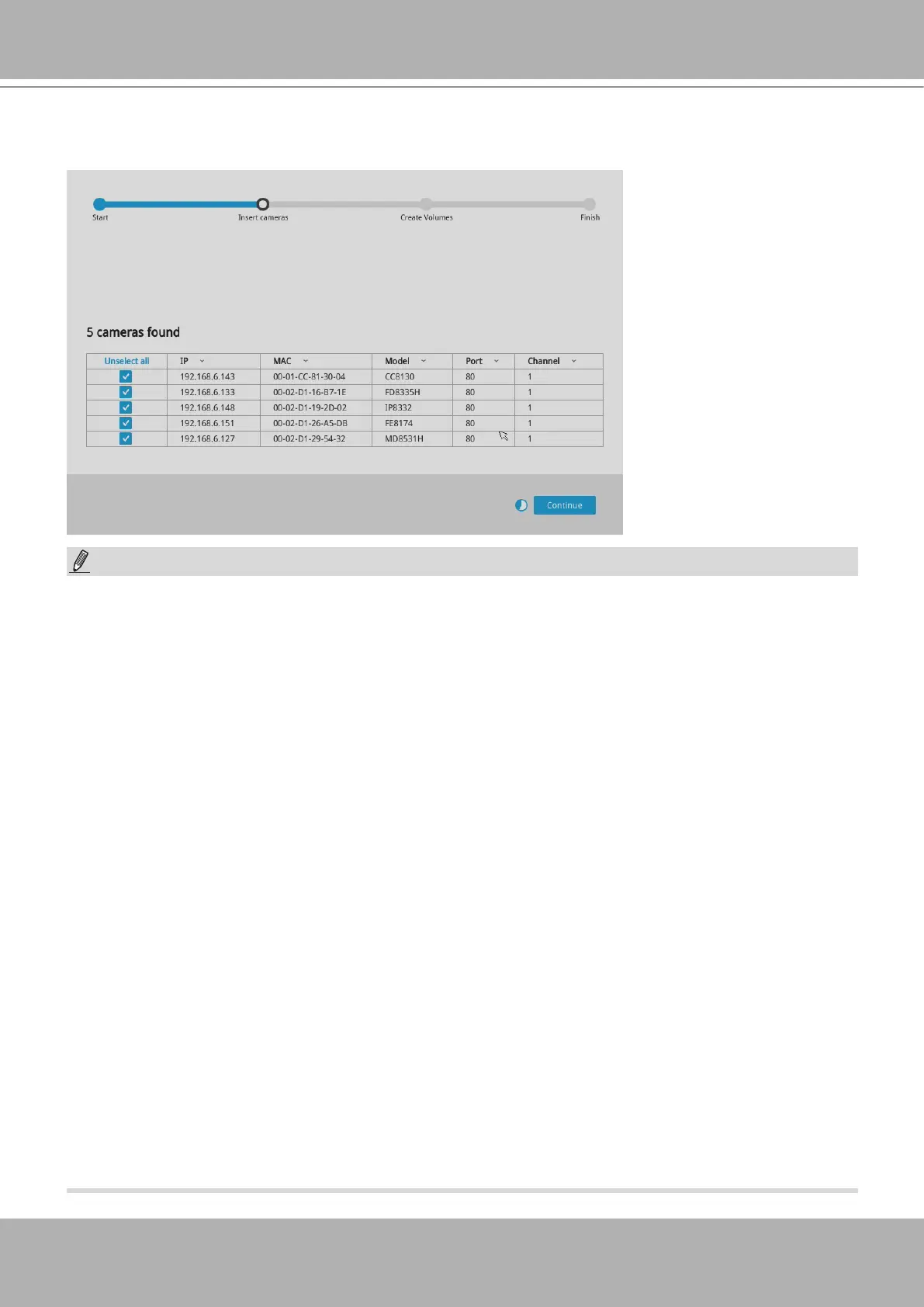

3. All cameras detected on the network will be automatically selected. If necessary, deselect the
cameras you want to exclude from the conguration. Click
Continue
to proceed.
1. The maximum decoding bandwidth is
H.265
3840x2160@30fps 1 CH
1920x1080@120fps 4 CH
H.264
3840x2160@30fps 1 CH
1920x1080@120fps 4 CH
Recording throughput:
64Mbps (ND9322P); 96Mbps (ND9424P)
Pre-recording: 5 seconds (max. 10)
Post-recording: 20 seconds (max. 300)
When cameras are recruited into the conguration, their stream 1 is used as the recording
stream.
The resolution and fps (frame rate per second) of stream 1 may vary depending on the
specications of different cameras.
2. If there are less than 8 or 16 cameras, the Auto Setup will automatically move to the next
conguration step.
NOTE:

Vivotek ND9322P Specifications

General

Brand	Vivotek
Model	ND9322P
Category	Network Hardware
Language	English
