Vivotek ND9425P User Manual

VIVOTEK - Built with Reliability
128 - User's Manual

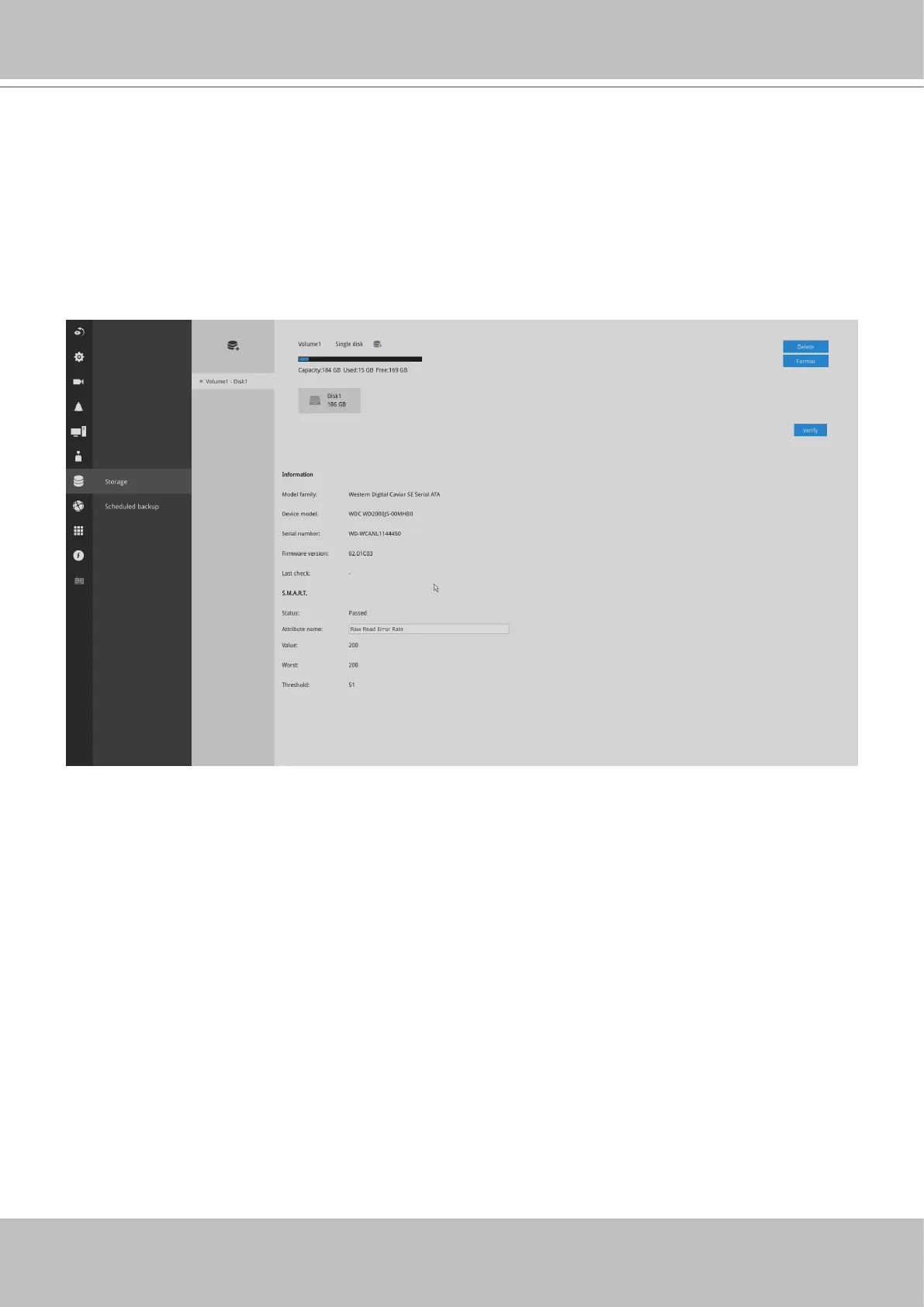

3-5-22. Settings–Storage
The storage page displays the volume information including physcial position, total capacity,
used and free space, and associated commands such as Format and Delete. Since each
volume contains only 1 hard drive, detailed information about the hard drive is also displayed on
this page.
You can format an existing storage volume in situations such as when you need to re-deploy the
system elsewhere.
Disk Information:
Model family: The brand name of the HDD manufacturer.
Device model: The disk model name.
Serial number: Serial number assigned to the disk drive.
Firmware version: The version of rmware running on this disk drive.
Last check: The bad block check or S.M.A.R.T. test previously executed on this drive.
Status: S.M.A.R.T. status polled from the disk drive. This is not the results from a manually-
executed S.M.A.R.T. test.

Vivotek ND9425P Specifications

General

PTZ control	Yes
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Audio formats supported	G.711, G.726
Video formats supported	H.264, H.265
Operating system installed	Embedded LINUX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
VGA (D-Sub) output ports	1
HDD size	3.5 \
RAID levels	0, 1
HDD capacity	0 GB
HDD interface	USB 3.2 Gen 1 (3.1 Gen 1)
Maximum storage capacity	16 TB
Number of HDDs installed	0
Product color	Black
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	255 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	320.3 mm
Width	366 mm
Height	46 mm
Weight	2500 g
