80 - User's Manual
3-5-3. Settings–Camera–Recording
Recording options
On the camera Recording page, you can congure the following:
1. Congure the duration of camera events, for the concern that camera can be too
frequently triggered.
2. Enter the Pre- and Post-event recording time. The triggering events can be DI,
DO, Motion detection, PIR, or Tampering detection.
3. The default recording stream is Main Stream, and the system automatically adjusts
the frame rate, resolution, etc. for optimum performance.
4. Watermark password: Congure a password in a length of 16 to 64 characters.
You can use it to verify the authenticity of exported videos using the included video
player.

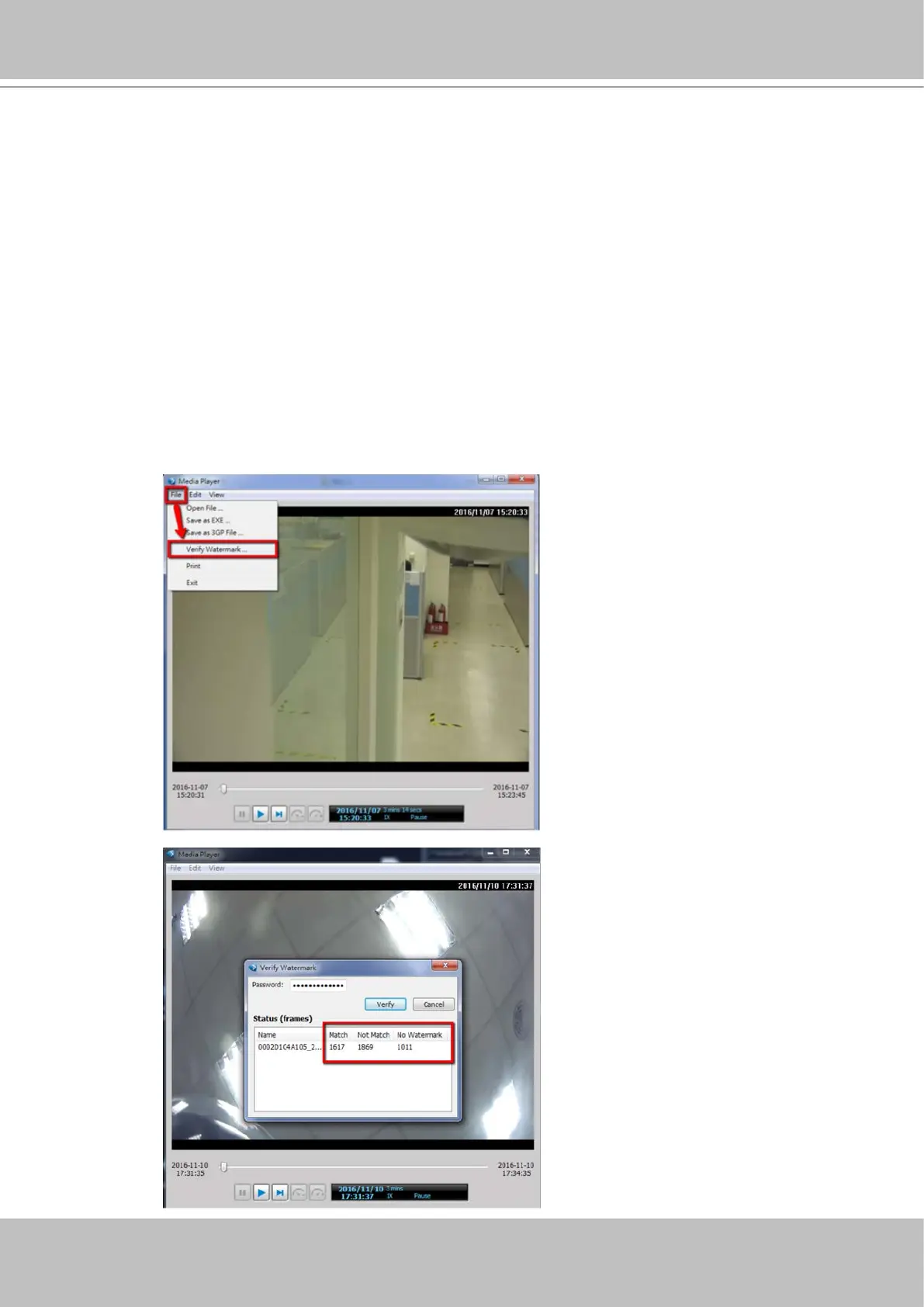

Select File > Verify Watermark.
Enter the password to verify. If the
Not match value is 0, the video is the
original and has not been tampered
with.

Vivotek ND9425P Specifications

General

PTZ control	Yes
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Audio formats supported	G.711, G.726
Video formats supported	H.264, H.265
Operating system installed	Embedded LINUX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
VGA (D-Sub) output ports	1
HDD size	3.5 \
RAID levels	0, 1
HDD capacity	0 GB
HDD interface	USB 3.2 Gen 1 (3.1 Gen 1)
Maximum storage capacity	16 TB
Number of HDDs installed	0
Product color	Black
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	255 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	320.3 mm
Width	366 mm
Height	46 mm
Weight	2500 g
