170 - User's Manual
Chapter Five System Settings
Since this revision, the System Settings pages are made identical to those on the local console.
Since the Setting pages are identical, the following pages will be omitted. Please refer to page
72 for the description of System Settings via a local console.

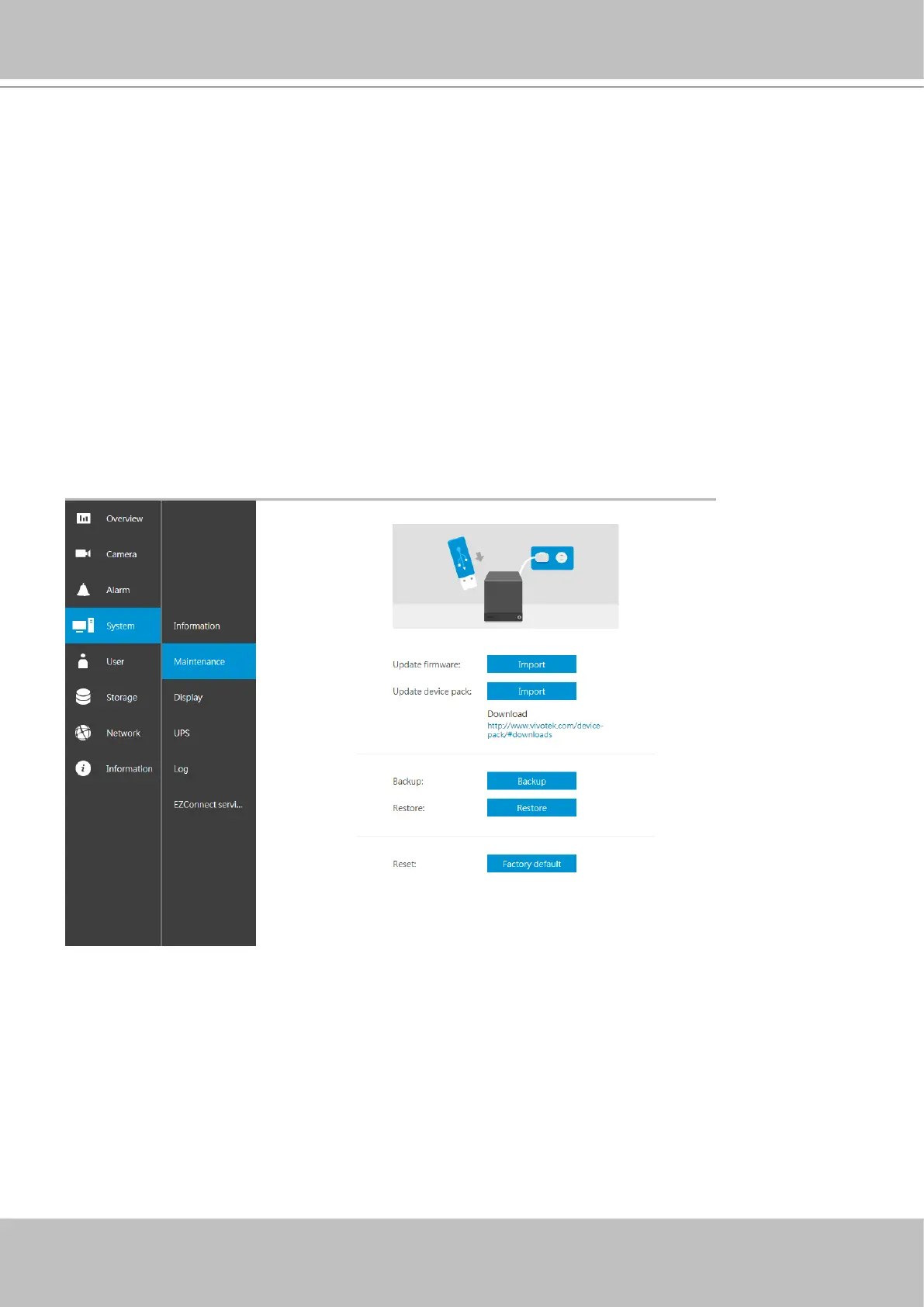

Some minor di󰀨erences between the web console and local console exist. One is the Restore
Factory default function. It is only available on the web console.
The restore function is not available on the local console, for users can use the reset button to
perform the system default restoration.

Vivotek ND9425P Specifications

General

PTZ control	Yes
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Audio formats supported	G.711, G.726
Video formats supported	H.264, H.265
Operating system installed	Embedded LINUX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
VGA (D-Sub) output ports	1
HDD size	3.5 \
RAID levels	0, 1
HDD capacity	0 GB
HDD interface	USB 3.2 Gen 1 (3.1 Gen 1)
Maximum storage capacity	16 TB
Number of HDDs installed	0
Product color	Black
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	255 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	320.3 mm
Width	366 mm
Height	46 mm
Weight	2500 g
