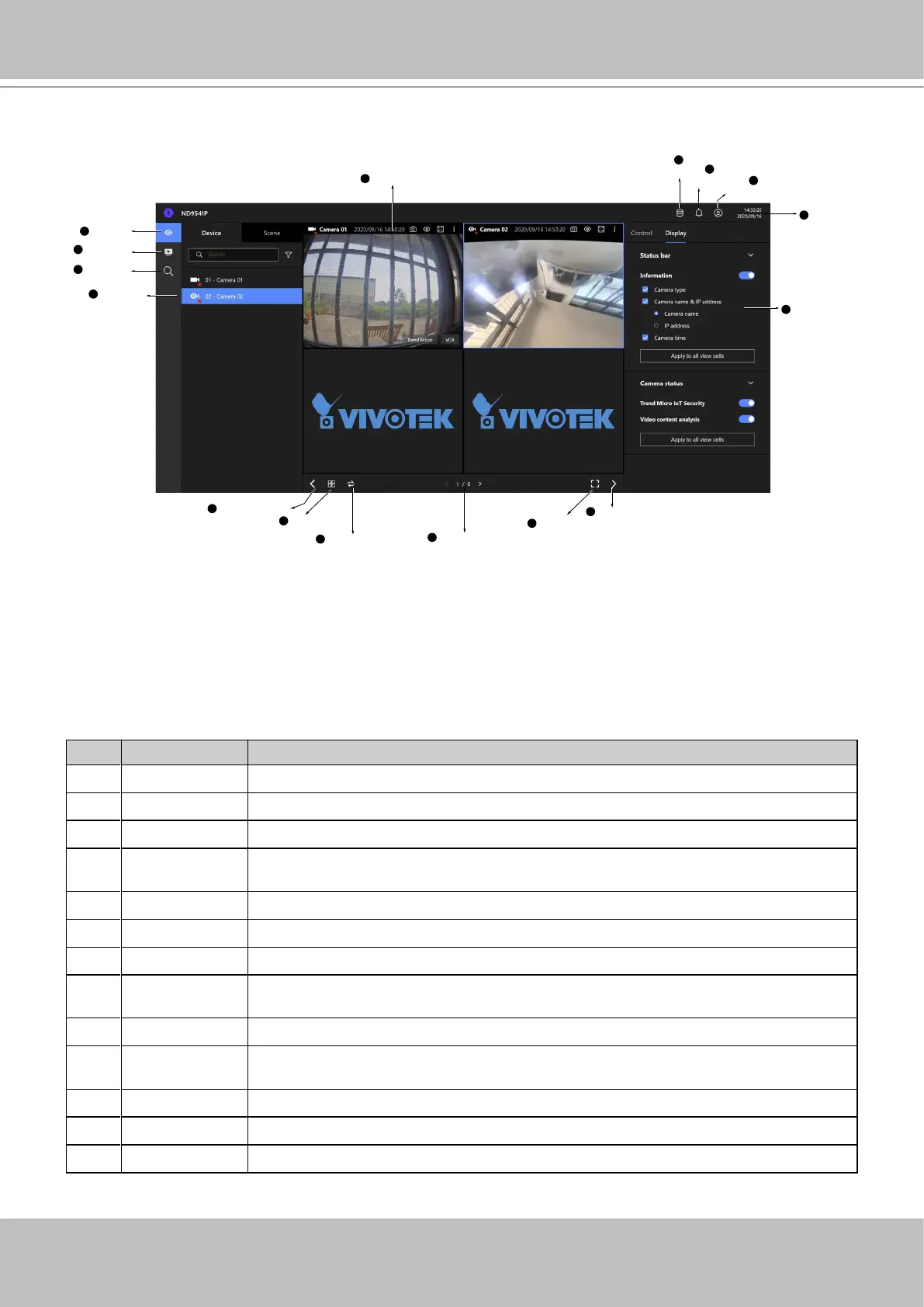

4-2. Graphical Layout and Screen Elements - Liveview
Once you log in, the system defaults to the Liveview page, which provides access to other
conguration utilities, live view screen, and other functional panels. The screen elements are
described as follows:
Item Name Description
1 Live view Provides a glimpse of all cameras inserted into your conguration.
2 Playback Provides access to camera recordings.
3 Search Provides access to the Alarm search panel.
4 Device list All devices (cameras / video servers) that have been recruited into the
conguration will be listed.
5 View cell panel The video feeds from cameras will be placed into view cells.
6 Storage Provides a glimpse of current storage usage.
7 Notication System notications including system events and alarm notications.
8 Login/Log out You can log out and log in again using another user role. You can switch to the
original interface from here, too.
9 Date & Time Displays date and time. You can click to enter the date and time setting page.
10 Control &
Display pane
When a view cell is selected, the camera-specic control (such as PTZ) and
display options will be available here.
11 Shrink / Expand You can display or hide the side panes.
12 Layout Provides functions to extend, rotate, and redo the layout.
13 Rotation mode Click to enter the Rotation mode.
Item Name Description
14 Page changer Cick to move to the other layout page when your live views are distributed over
many pages.
15 Full screen Enters the full screen with only the live views.

Vivotek ND9425P Specifications

General

PTZ control	Yes
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Audio formats supported	G.711, G.726
Video formats supported	H.264, H.265
Operating system installed	Embedded LINUX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
VGA (D-Sub) output ports	1
HDD size	3.5 \
RAID levels	0, 1
HDD capacity	0 GB
HDD interface	USB 3.2 Gen 1 (3.1 Gen 1)
Maximum storage capacity	16 TB
Number of HDDs installed	0
Product color	Black
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	255 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	320.3 mm
Width	366 mm
Height	46 mm
Weight	2500 g
