Vivotek ND9425P User Manual

VIVOTEK - Built with Reliability
User's Manual - 163

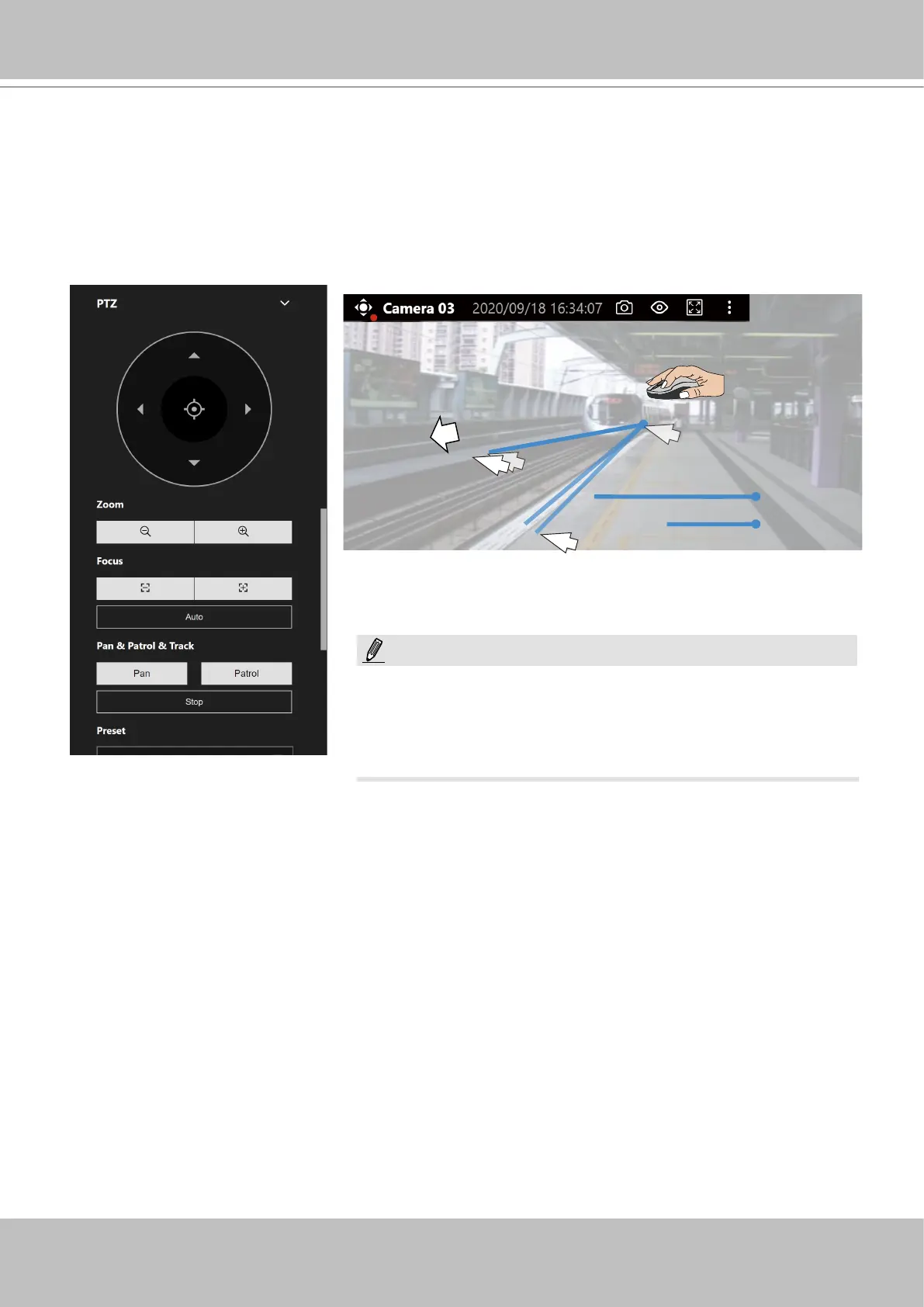

* For a PTZ camera, scroll down to display the PTZ control panel where you can zoom, focus,
pan, patrol, or move the camera lens.
On a live view of a PTZ camera, you can hold down the mouse button and move the cursor
towards the direction you want to move. The mouse control is automatically enabled for PTZ
cameras. As depicted below, the farther you move along the screen, the faster the lens module
moves.
Fast
Slow
Camera move directi
on
Bookmarks will be erased if the user/system erases the
video clips they were appended to. For example, system will
recycle storage space by deleting old videos along with their
bookmarks.
NOTE:
Auto pan/patrol controller: These buttons provides pan and patrol functions provided that
preset locations have been congured on the camera. For a speed dome camera, the pan
command tells the camera to continuously pan 360 degrees until it is stopped by a user
command.
The Stop button ends a pan or patrol tour.

Vivotek ND9425P Specifications

General

PTZ control	Yes
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Audio formats supported	G.711, G.726
Video formats supported	H.264, H.265
Operating system installed	Embedded LINUX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
VGA (D-Sub) output ports	1
HDD size	3.5 \
RAID levels	0, 1
HDD capacity	0 GB
HDD interface	USB 3.2 Gen 1 (3.1 Gen 1)
Maximum storage capacity	16 TB
Number of HDDs installed	0
Product color	Black
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	255 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	320.3 mm
Width	366 mm
Height	46 mm
Weight	2500 g
