74 - User's Manual
Note the following when using RTSP connections:
1. RTSP cameras do not support event recording in the Schedule settings.
2. RTSP cameras do not support FTP, Camera DO, and PTZ as the Alarm
action.
3. RTSP cameras do not support camera's related settings such as Network,
Video, Audio, and Display congurations.
4. RTSP cameras will be indicated by an RTSP tag in the device list.
5. RTSP cameras do not support Motion detection conguration.
6. RTSP cameras can not be selected as an alarm trigger.
For legacy cameras, the NVR supports RTSP connections since rmware
release revision 2.6.x.

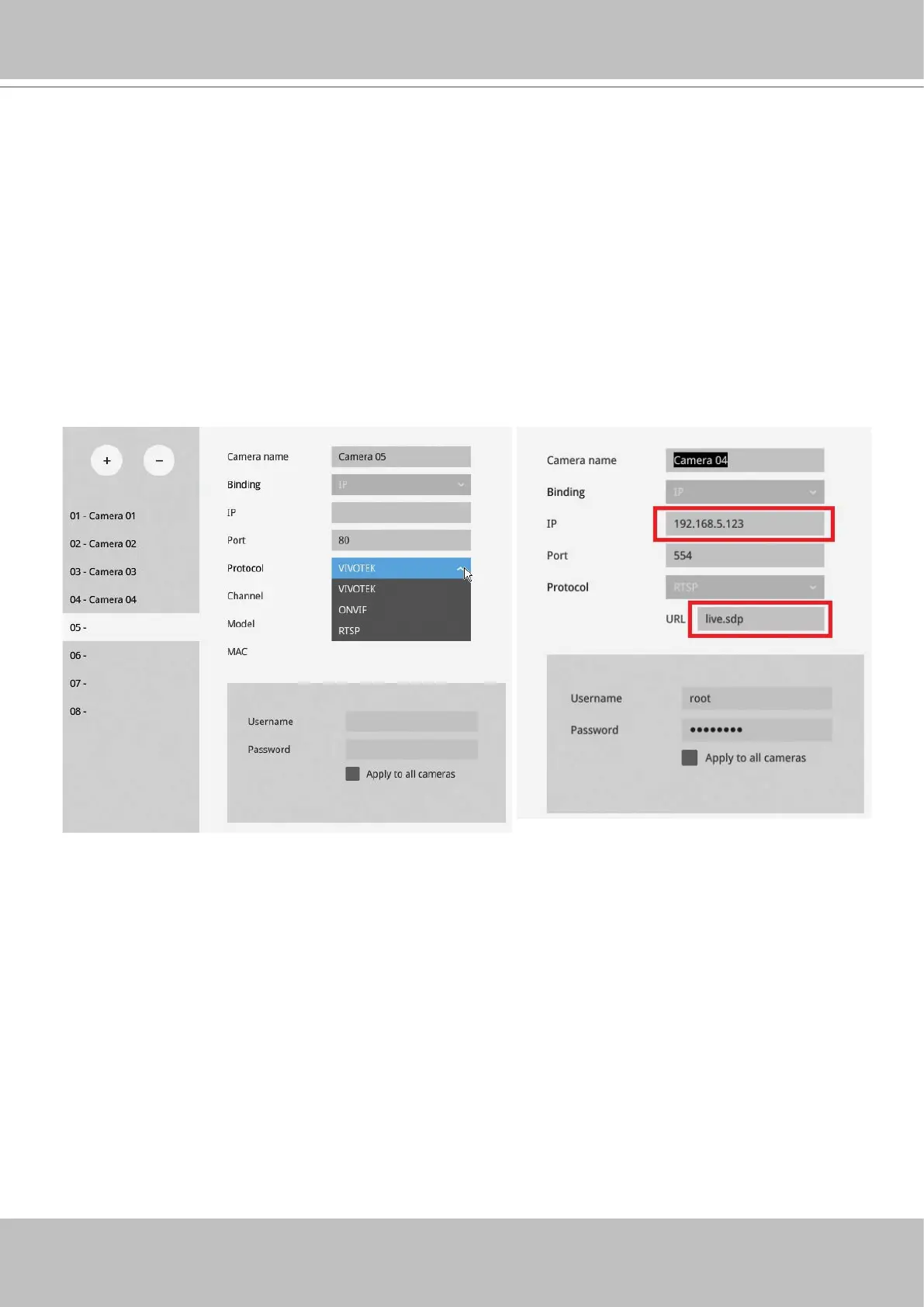

To manually add a legacy camera,
1. Select an empty camera entry,
2. Click the Add button,
3. Select RTSP as the protocol.
4. The original rtsp address is: rtsp://<ip address>:<rtsp port>/<access name
for stream 1 to 3>. For example, when the access name for stream 1 is set
to live.sdp: rtsp://192.168.5.151:554/live.sdp.
However, you only need to enter IP address and "live.sdp" in the URL eld.
The system automatically lls in the other parameters.

Vivotek ND9425P Specifications

General

PTZ control	Yes
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Audio formats supported	G.711, G.726
Video formats supported	H.264, H.265
Operating system installed	Embedded LINUX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
VGA (D-Sub) output ports	1
HDD size	3.5 \
RAID levels	0, 1
HDD capacity	0 GB
HDD interface	USB 3.2 Gen 1 (3.1 Gen 1)
Maximum storage capacity	16 TB
Number of HDDs installed	0
Product color	Black
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	255 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	320.3 mm
Width	366 mm
Height	46 mm
Weight	2500 g
