Controls and Connections
USB: Connect a USB thumb drive to view photos.
HDMI (1,2,3): Connect HDMI devices.
RCA Stereo
Audio Out:
Connect RCA cable to output audio to another device.
Component/
Composite:
Connect component or composite device.
Cable/Antennal: Connect RF/Coaxial connector from cable, antenna, or
satellite box.
RGB PC: Connect RGB cable from computer. Use 3.5mm port to
connect PC audio.
3.5mm PC
Audio In:
Connect 3.5mm cable from PC audio out when using
RGB PC port to display PC output.
Optical Digital
Audio Out:
Connect SPDIF/Optical audio device (soundbar, re-
ceiver, etc).

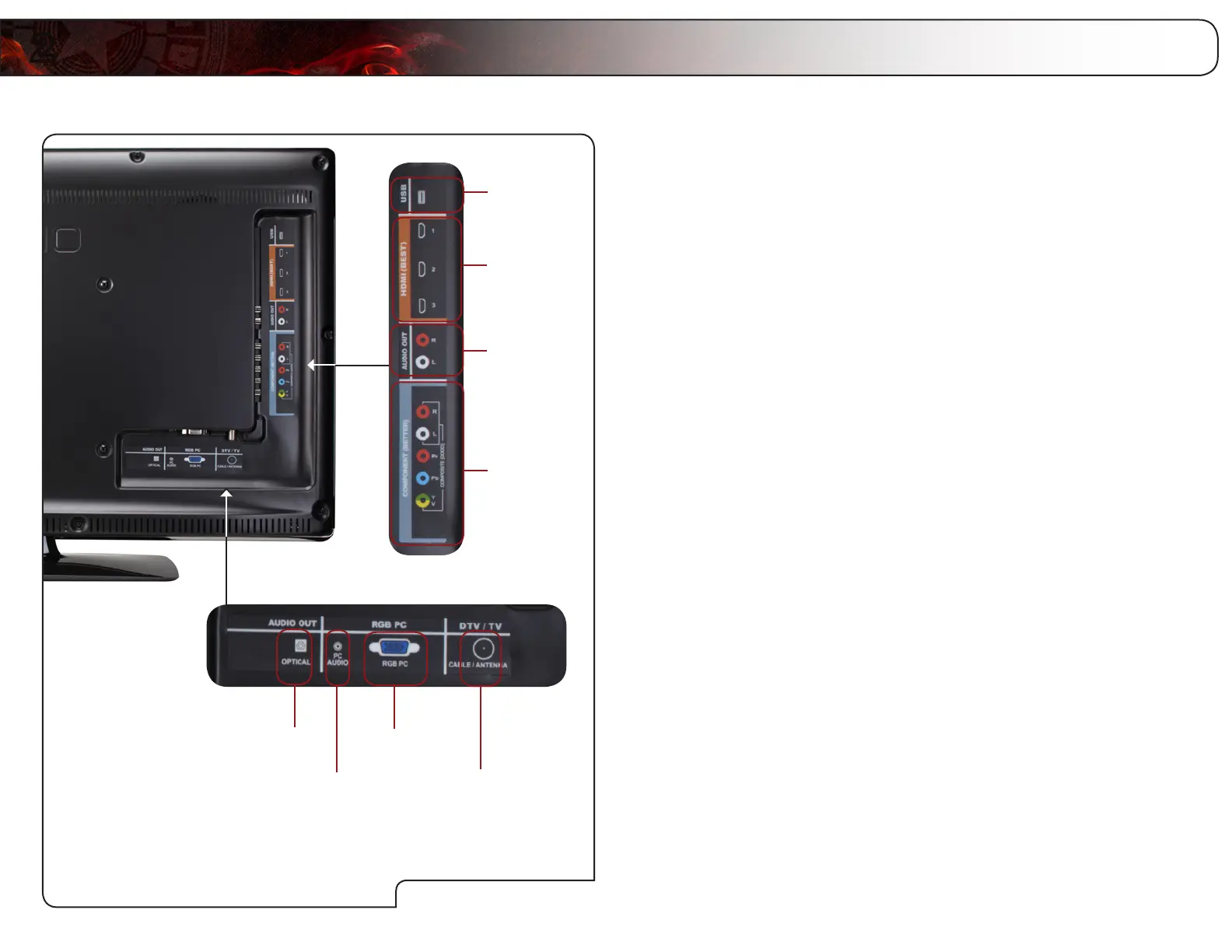

Rear Panel
Rear Panel
RGB PC
Cable/Antenna
USB
HDMI (1,2,3)
Component/
Composite
Optical Digital
Audio Out
3.5mm PC Audio In
RCA Stereo
Audio Out
