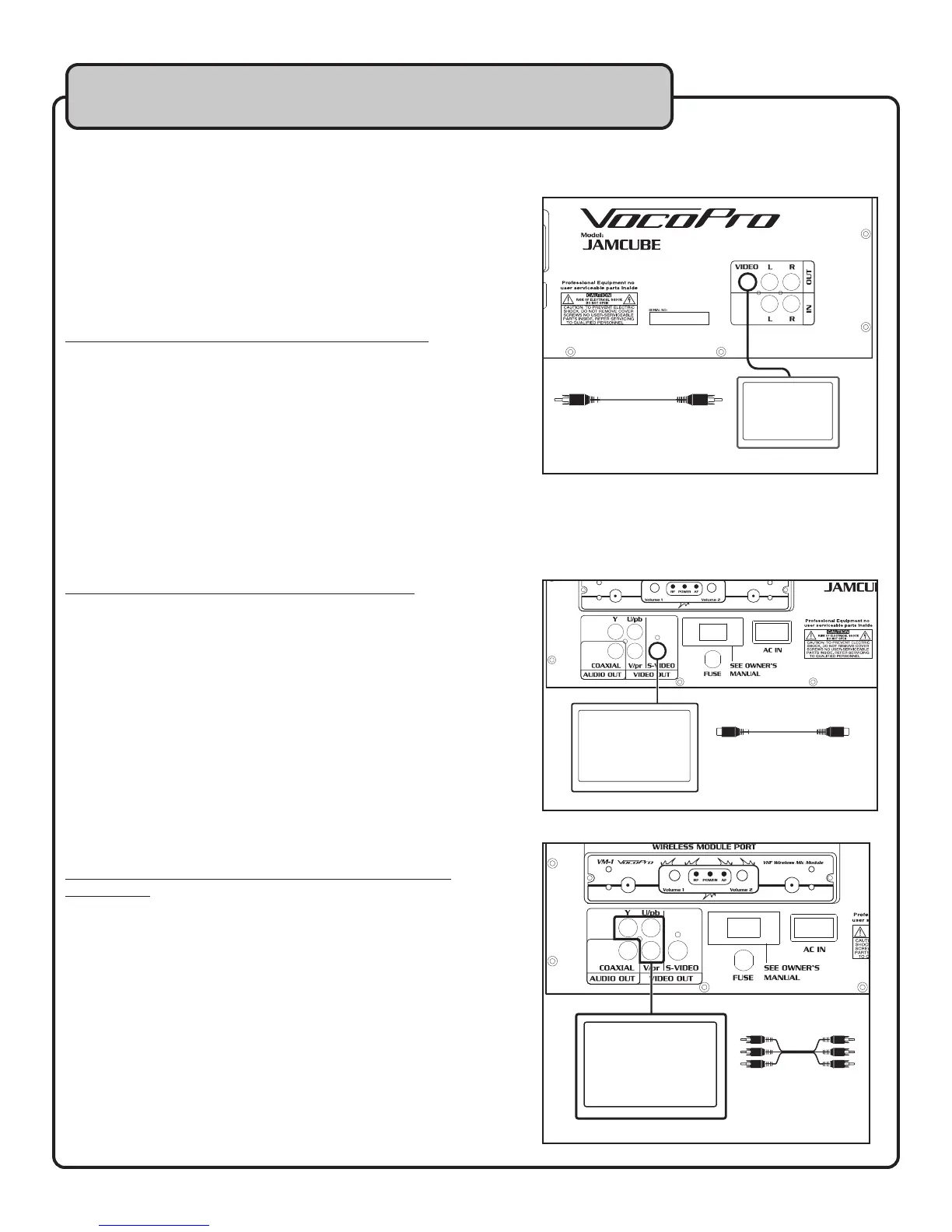

Connecting a TV or Monitor to the JAMCUBE
The JAMCUBE has three ways to output video. Choose the method
that best suits your needs.
Using RCA video output
What you will need:
• RCA video cable
• TV or Monitor with RCA inputs
To connect to a TV or Monitor using RCA video output:
1. Connect one end of the RCA cable to the VIDEO
output on the rear panel of the JAMCUBE.
2. Connect the other end of the RCA cable to the VIDEO
INPUT jack on your TV or Monitor.
NOTE: While some TVs automatically switch when
a video signal is detected, you may need to manually
switch your TV to the correct video input. On most
TVs, the INPUT jack is labeled A/V, AUX or VIDEO IN.
Using S-Video output
What you will need:
• S-Video cable
• TV or Monitor with an S-Video input
To connect to a TV or Monitor using S-VIDEO output:
1. Connect one end of the S-Video cable to the S-VIDEO
output on the rear panel of the JAMCUBE.
2. Connect the other end of the S-Video cable to the
S-VIDEO INPUT jack on your TV or Monitor.
NOTE: While some TVs automatically switch when
a video signal is detected, you may need to manually
switch your TV to the correct video input. On most
TVs, the INPUT jack is labeled A/V, AUX or VIDEO
IN.
Using Component (YPBPR) video output
What you will need:
• Component (YPBPR) video cable
• TV or monitor with component (YPBPR) video inputs
To connect to a TV or Monitor using Component (YPBPR)
video output:
1. Connect one end of the component (YPBPR) cable to
the Y, PB, PR outputs on the rear panel of the
JAMCUBE.
2. Connect the other end of the Component (YPBPR)
cable to the Component (YPBPR) jack on your TV or
Monitor.
NOTE: While some TVs automatically switch when
a video signal is detected, you may need to manually
switch your TV to the correct video input. On most
TVs, the INPUT jack is labeled A/V, AUX or VIDEO
IN.
Getting Connected
RCA - RCA
Cable
TV
HD TV
S-VIDEO Cable
HD TV
RCA Component
Video Cable
