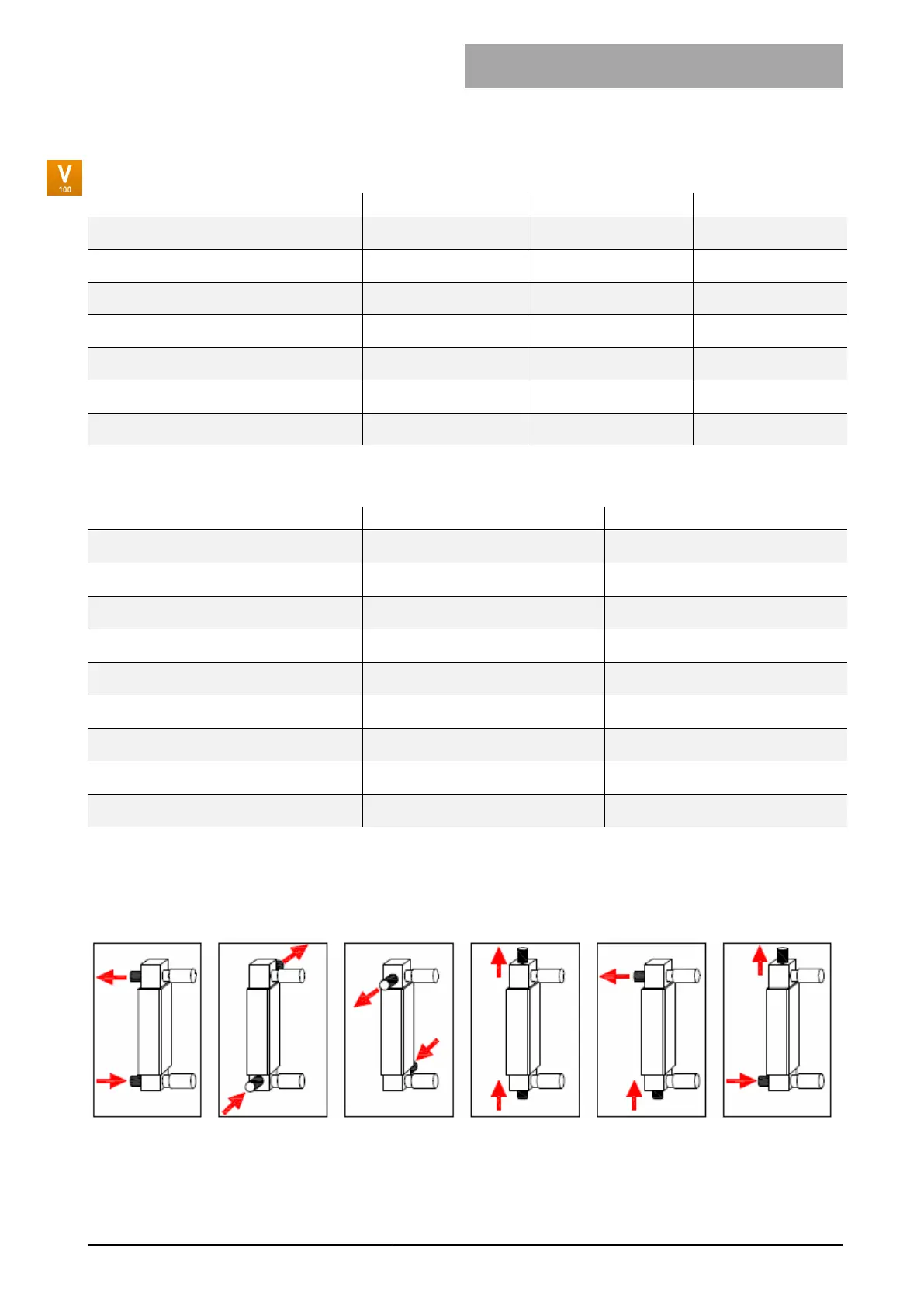

Technical data V-100
Type
V-100 55
V-100 80
V-100 140
Turndown ratio
10:1
10:1
10:1
Accuracy in % of full scale
± 5 %
± 4 %
± 2 %
Measuring tube length
55 mm
80 mm
140 mm
Scale length
40 mm
65 mm
120 mm
Float
spherical
spherical
spherical
Max. pressure
20 bar
20 bar
16 bar
Max. pressure drop
100°C
100°C
100°C
Materials V-100
Component
Aluminium
Stainless steel
Top and base sections*
Anodized aluminum
Stainless steel 1.4305
Mounting plate
Anodized aluminum
Anodized aluminum
Measuring cylinder*
Borosilicate glass
Borosilicate glass
Connections*
Nickel-plated brass
Stainless steel 1.4305
Float*
SS 316 L / Glass / Ceramic
SS 316 L / Glass / Ceramic
Valve*
Nickel-plated brass
Stainless steel 1.4305
Seals*
FKM
FKM/EPDM
Front cover
Makrolon (Polycarbonate)
Makrolon (Polycarbonate)
Shock absorbing limit stop*
Stainless steel 1.4305 / PTFE
Stainless steel 1.4305 / PTFE
*Wetted parts
Setups V-100 (position of the process connection)
Standard Setup L Setup R Setup A* Setup T* Setup O*
*A, T and O-Type in stainless steel only
