Vogtlin V-Flow Series User Manual

V-Flow Line
Manual
Version
Page
V-Flow Line
vflow_E4_7
© Vögtlin Instruments AG
30

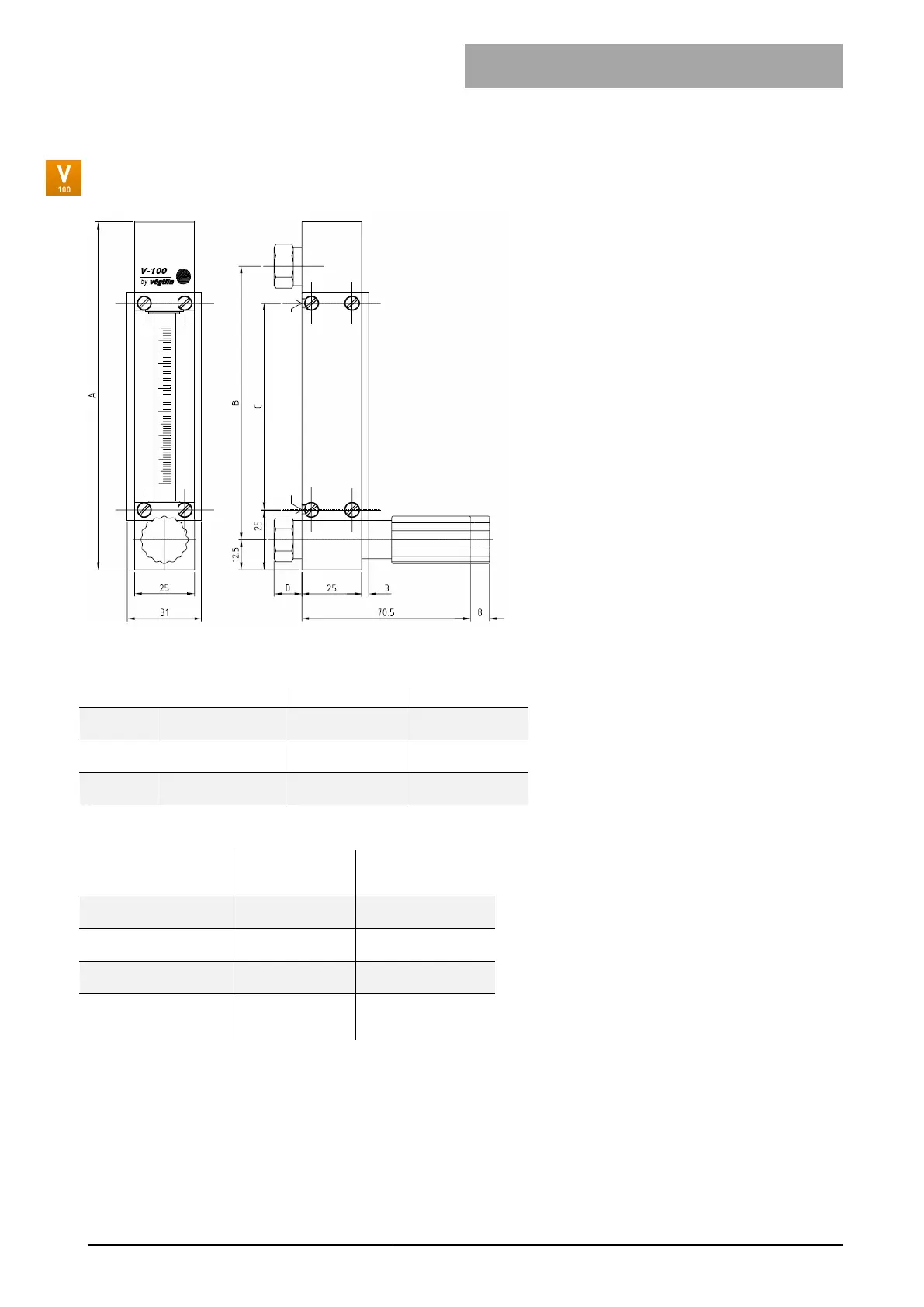

Dimensions V-100
Type
Dimensions in mm
A
B
C
V-100 55
120.5
89.5
61.5
V-100 80
145.5
114.5
86.5
V-100 140
205.5
174.5
146.5
Fitting
D
Thread depth
G 1/4“ female
12
7
G 1/8“ female
12
8
NPT 1/4“ female
16
9
G 1/4“ female for
compression fittings
17
12
2xM4 distance 17mm
2xM4 distance 17mm
