Appendix

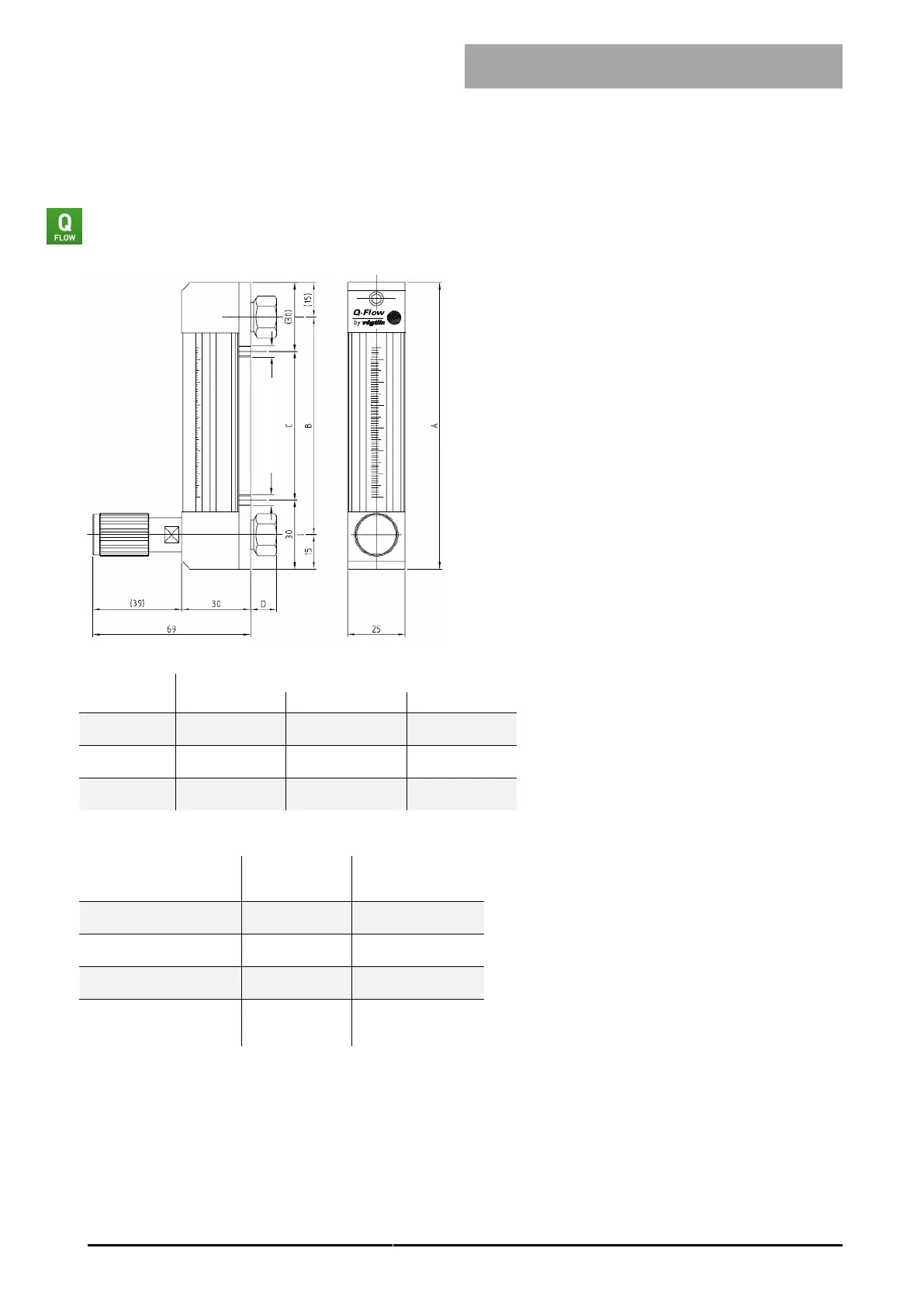

Dimensions Q-Flow
Type
Dimensions in mm
A
B
C
Q-Flow 55
100
70
40
Q-Flow 80
125
95
65
Q-Flow 140
185
155
125
Fitting
D
Thread depth
G 1/4“ female
12
7
G 1/8“ female
12
8
NPT 1/4“ female
16
9
G 1/4“ female for
compression fittings
17
12
M5, depth 5mm
