Vogtlin V-Flow Series User Manual

V-Flow Line
Manual
Version
Page
V-Flow Line
vflow_E4_7
© Vögtlin Instruments AG
19

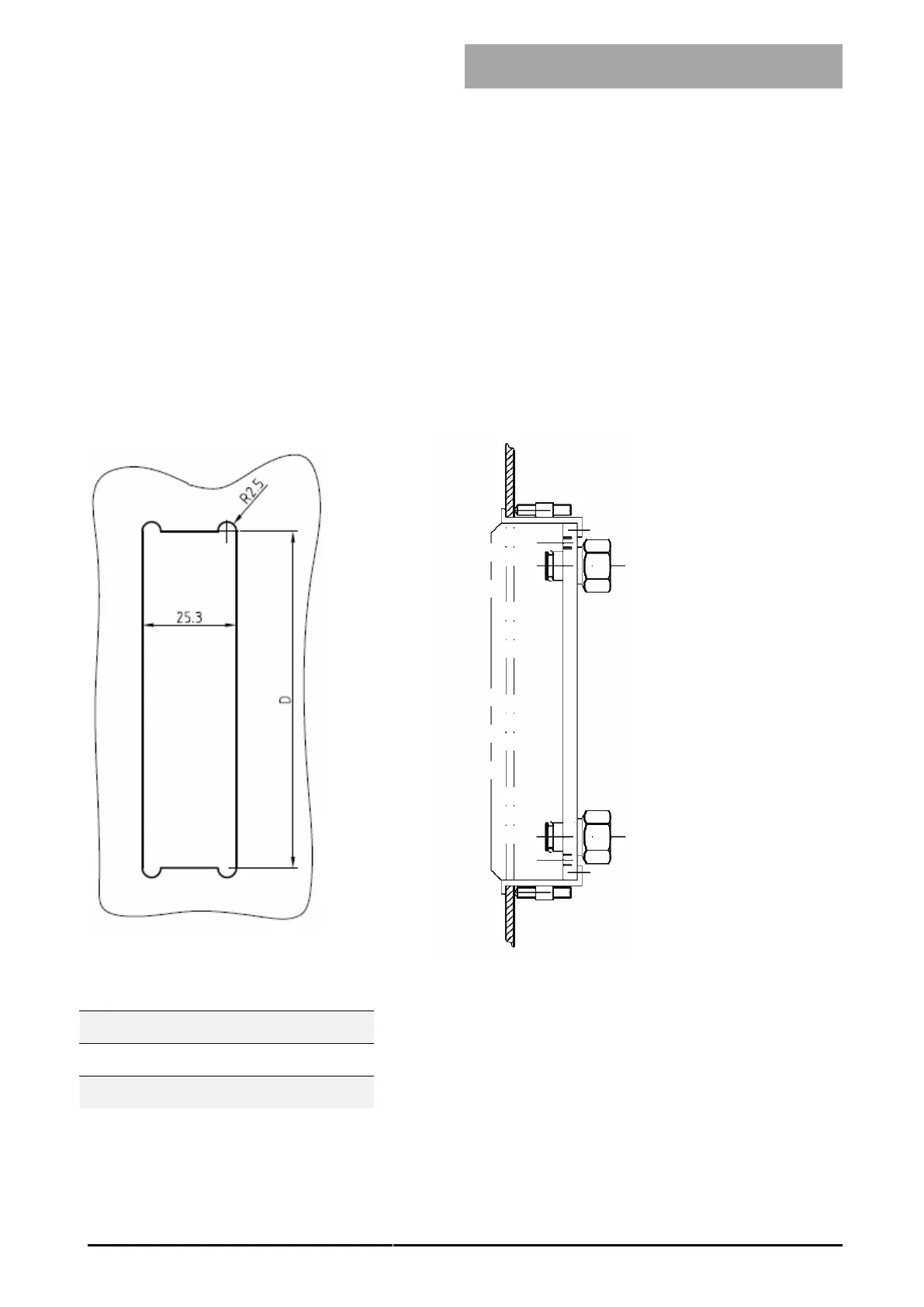

Panel mounting Q-Flow
 For mounting, the panel opening must be prepared according to the diagram
 Screw the two mounting brackets onto the instrument as shown
 Screw the setscrew supplied into the connector and insert the instrument into the aperture from
the front
 From the other side, hang the connectors in the openings of the mounting brackets
 The instrument can be secured by careful tightening of the setscrews.
Panel aperture: Mounting-Kit:
Dimensions in mm
Type
D
Q-Flow 55
104.3
Q-Flow 80
129.3
Q-Flow 140
189.3
