Vogtlin V-Flow Series User Manual

V-Flow Line
Manual
Version
Page
V-Flow Line
vflow_E4_7
© Vögtlin Instruments AG
20

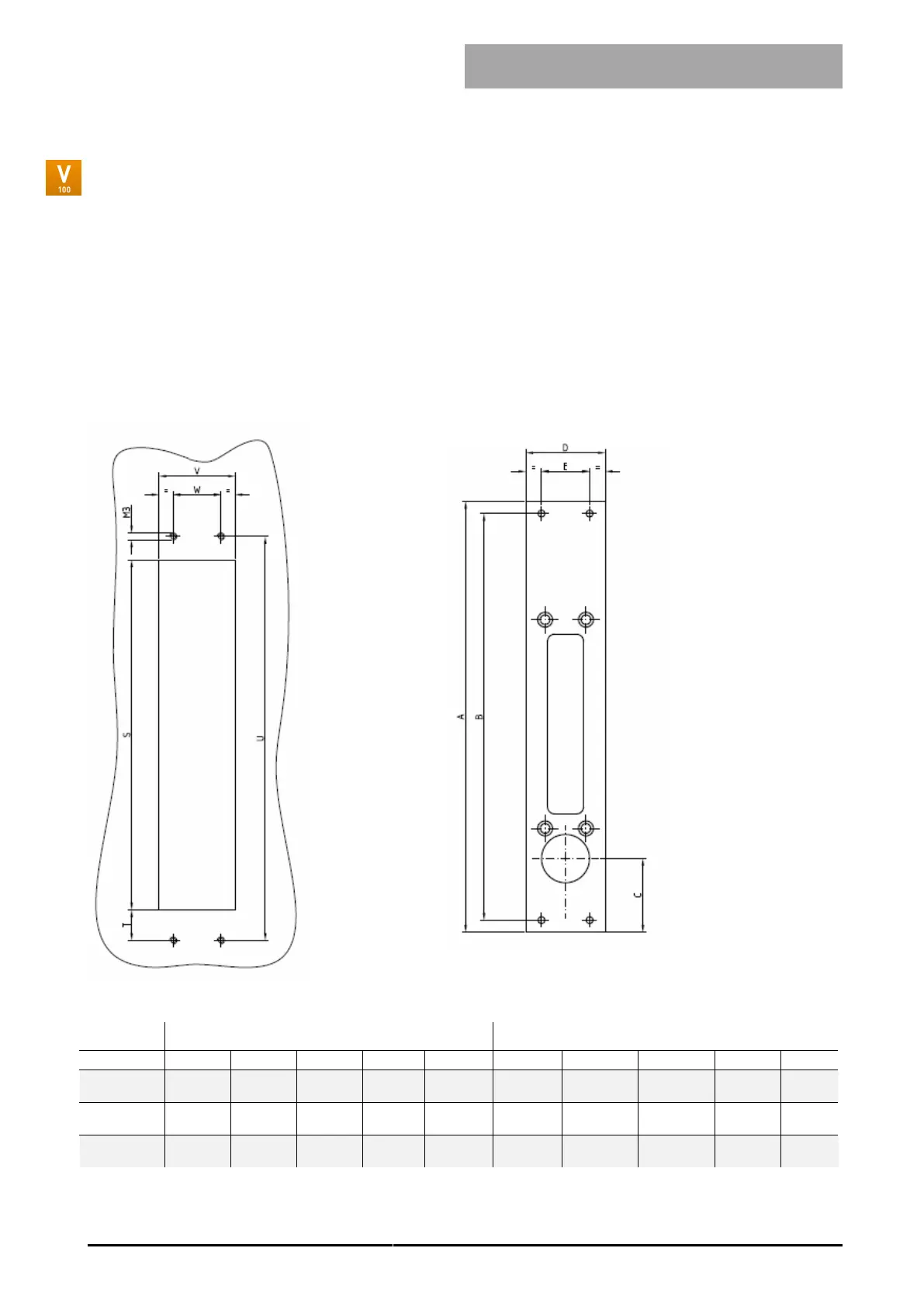

Faceplate mounting V-100
 For mounting, the faceplate must be prepared according to the diagram
 The instrument is supplied with mounted plate and inserted into the aperture from the front.
Screw the plate to the control cabinet using suitable M3 screws
 For retrofit installation, unscrew the glass front of the instrument and fit the plate in place of this
and install as described above
Panel aperture: Mounting-Kit:
Dimensions in mm:
Panel
Panel aperture
Type
A
B
C
D
E
S
T
U
V
W
V-100 55
133.5
123.5
19.5
33
20
121
1.5
123.5
32
20
V-100 80
178
168
30.5
33
23
146
13
168
32
23
V-100 140
262
252
45
33
23
206
27.5
252
32
23
