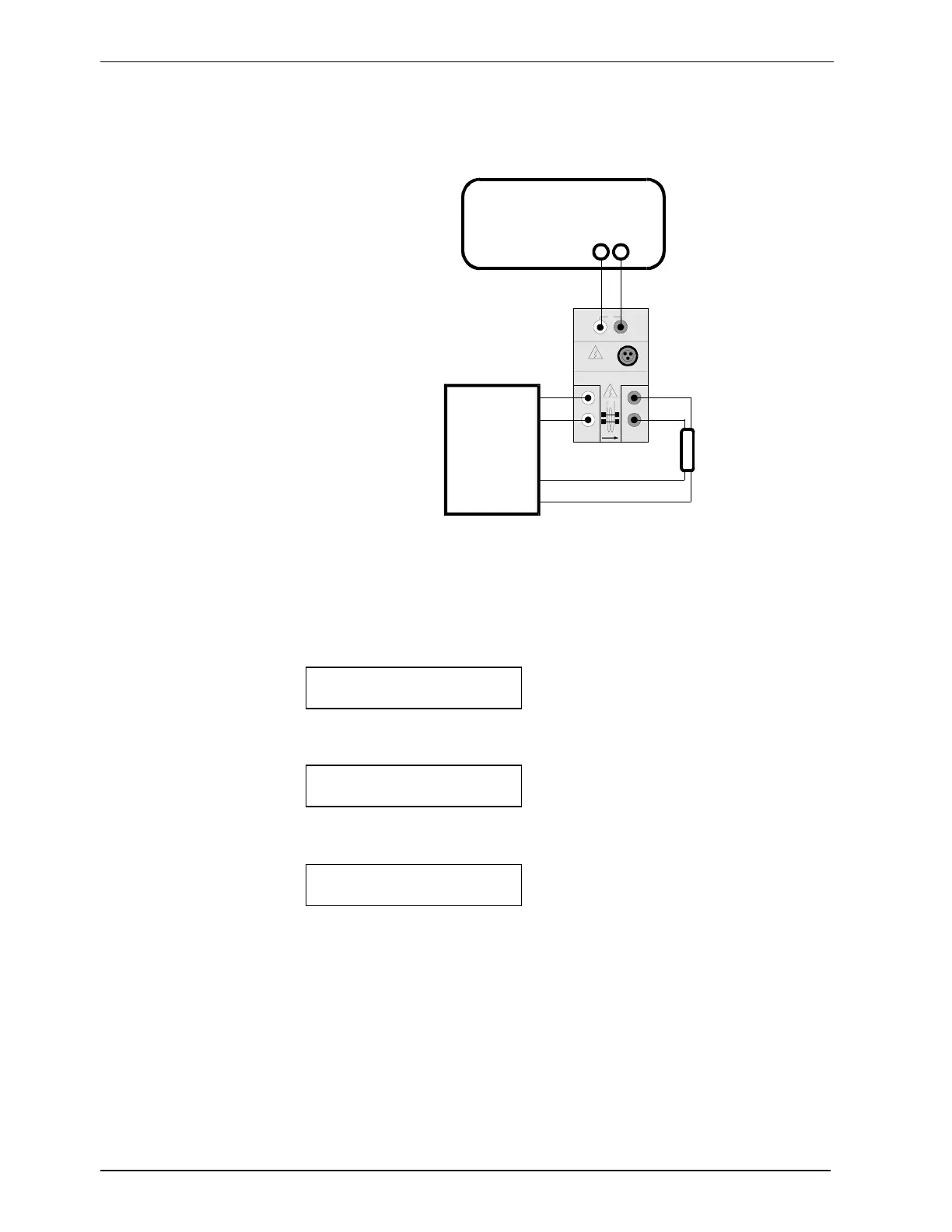

To give the best measurement accuracy, it is recommended that the Voltech
Ballast CT (current transformer) be used where high common mode voltages are
present.
PM100
PM300
A
HI LO
Tub e
Electronic
Ballast
Harmonic Mode
Harmonic Amplitude may be displayed as a percentage (%) of fundamental or
in RMS terms as desired.
Press [MENU]
SELECT MENU
M[0] Outputs
Press [>] until you see;
SELECT MENU
M[2] Modes
Press [↵] until you see;
HARMONIC MODE
>%< V/A/W
Press [<] and [>] to make your selection.
Press [↵] to move to the next item in the menu system,
or, press [MENU] to exit the menu system and return to the measurement
display.
Waveform Display Mode
