15. Operation

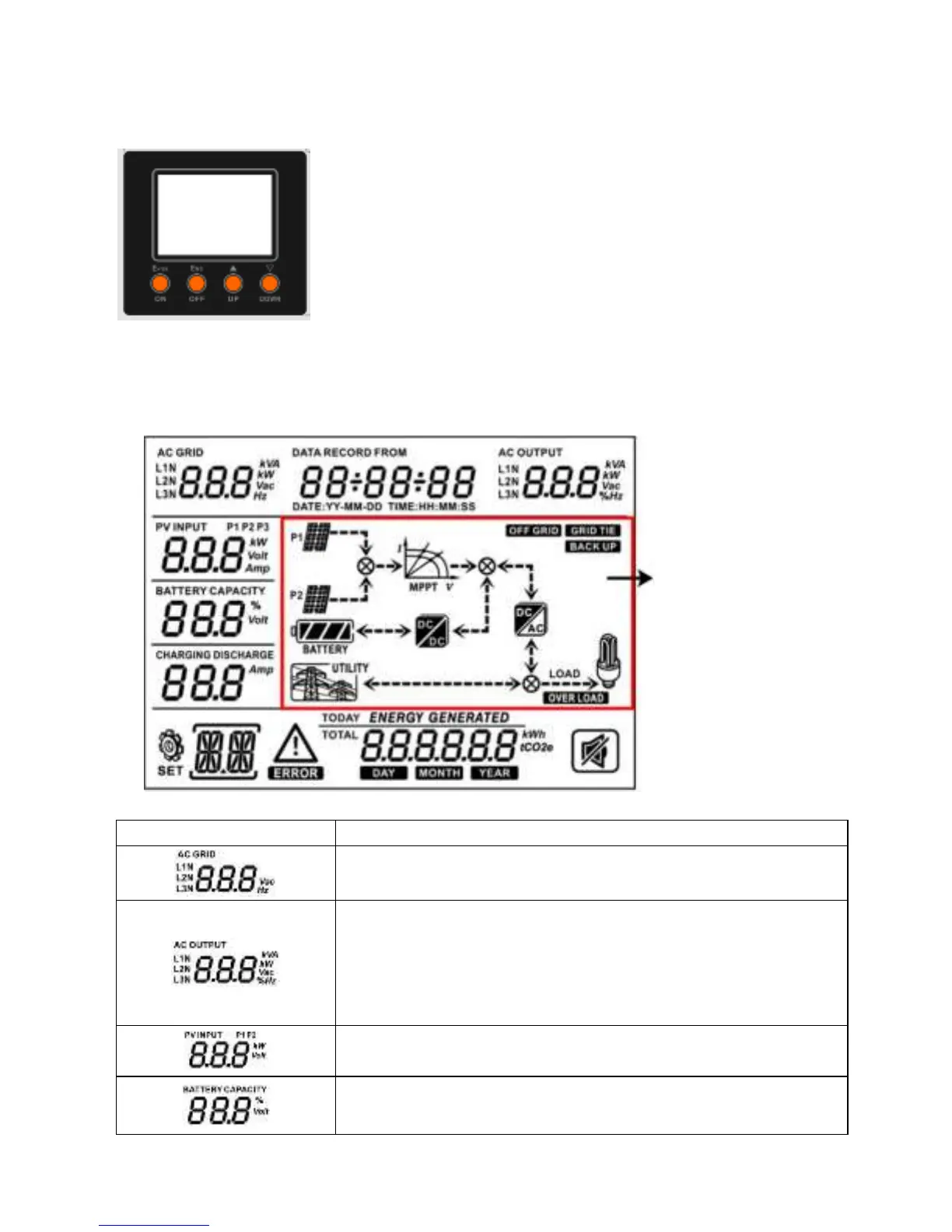

15-1. Interface
This display is operated by four buttons.
NOTICE: To accurately monitor and calculate the energy generation, please calibrate
the timer of this unit via software every one month. For the detailed calibration, please
check the user manual of bundled software.
15-2. LCD Information Define
Display
Function
Indicates AC input voltage or frequency.
Vac: voltage, Hz: frequency, L1N/L2N/L3N: Line phase
Indicates AC output power, voltage, frequency, or load
percentage.
KVA: apparent power, KW: active power,
Vac: Voltage, %: Load percentage, Hz: frequency,
L1N/L2N/L3N: AC output phase
Indicates PV input voltage or power.
Volt: voltage, KW: power, P1: PV input 1, P2: PV input 2
Indicates battery voltage or percentage.
Volt: voltage, %: percentage
Real-time operation
status
Section 12-5 describes
all operation conditions
when the inverter is set
up at “Grid-tie with
backup (I)” mode.
