6

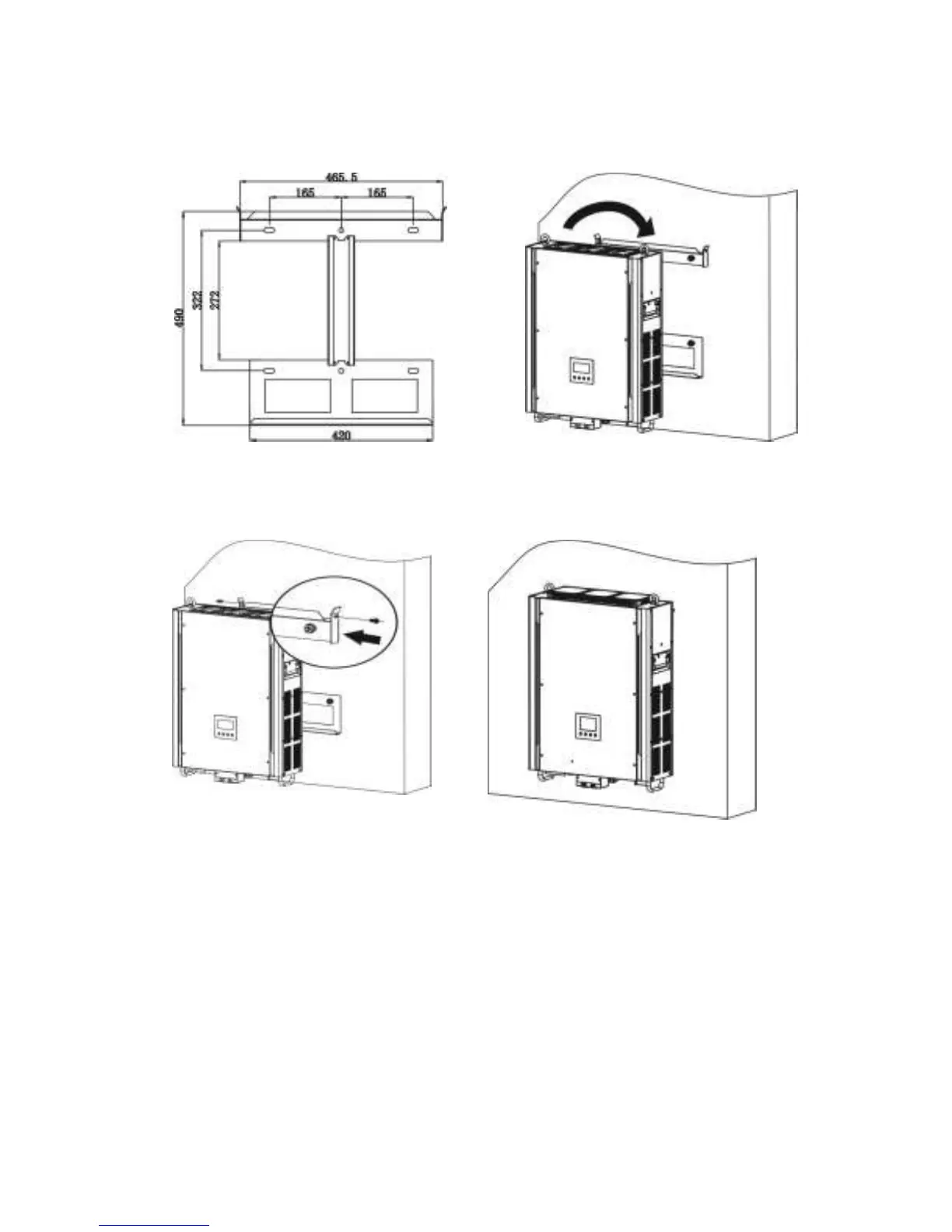

1. Drill six holes in the marked
locations with supplied six screws.
The reference tightening torque is
35 N.m.
2. Raise the inverter and place it over
the mounting plate.
3. Fix the inverter in position by
screwing the supplied two screws
(M4*12) located on the top two
sides of the inverter.
4. Check if the inverter is firmly secured.
