D5A TA KC Marine Genset (2-circuit)
The D5A TA KC is a turbocharged, aftercooled, in-line,
direct injection, 4-cylinder, 4-stroke marine genset. It
is fit-ted with connections for 2-circuit keel cooling.
An optimal combination of combustion chambers, fuel
injection system, effective turbocharger and charge
aircooling, provide excellent fuel consumption over the
whole range of power output.
The engine is mounted on a frame with a Stamford
single or double bearing marine generator. Different
startingand control systems are available.

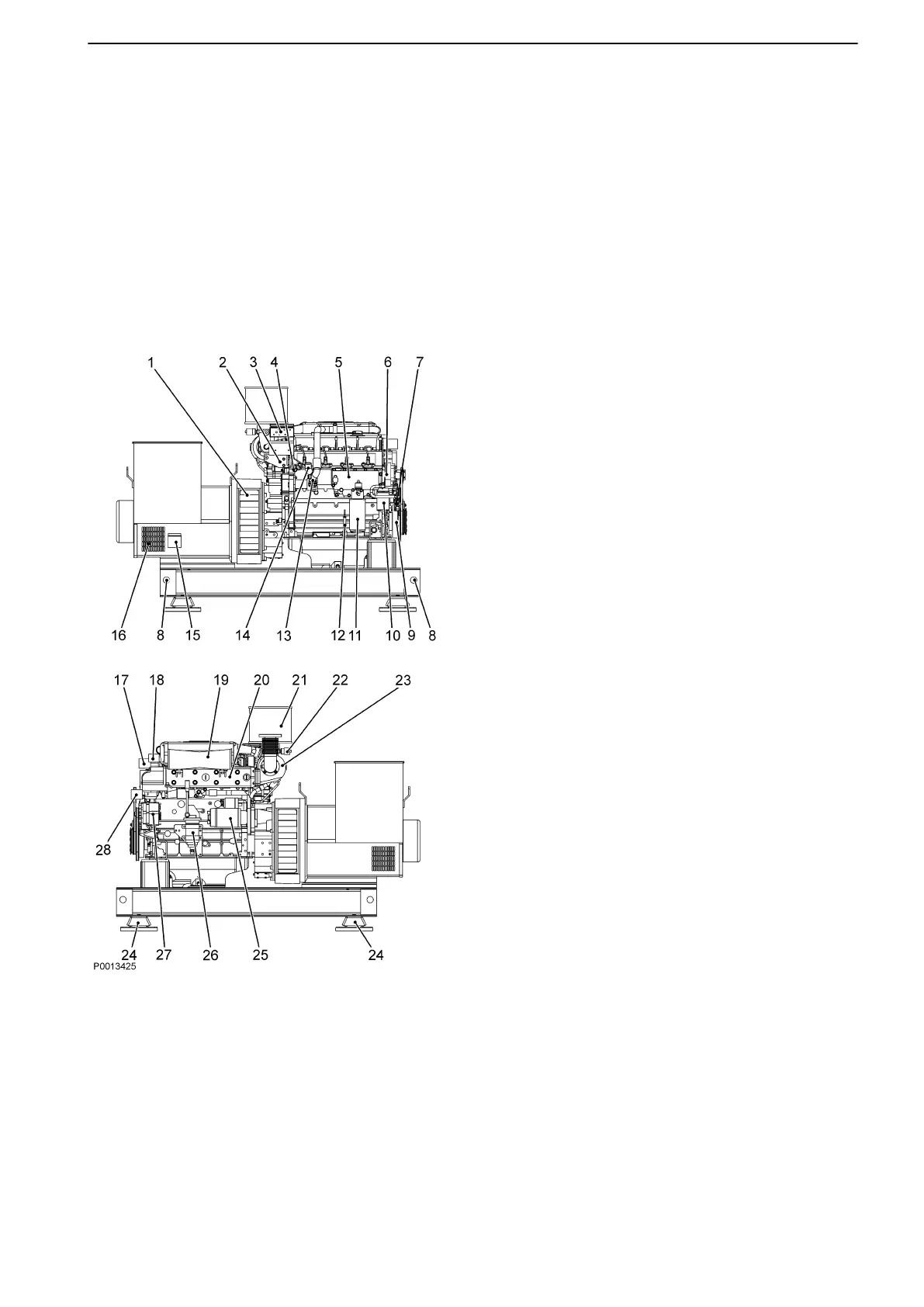

1 Air outlet generator
2 Governor & Stop solenoid
3 Electrical connection box
4 Fuel return
5 Oil cooler
6 HT-pump
7 Fuel pump & Fuel inlet
8 Lifting eyes
9 Vibration damper
10 Fuel filter
11 Oil filter
12 Oil dip stick
13 LT-pump
14 Coolingwater inlet (LT-circuit)
15 Electrical connection unit
16 Air inlet generator
17 Coolingwater inlet (HT-circuit)
18 Cooling water outlet (LT-circuit)
19 Charge air cooler
20 Exhaust manifold
21 Air filter
22 Air filter indicator
23 Turbocharger
24 Flexible mountings
25 Electrical starter
26 Engine oil drain pump
27 Alternator
28 Cooling water outlet (HT-circuit)
