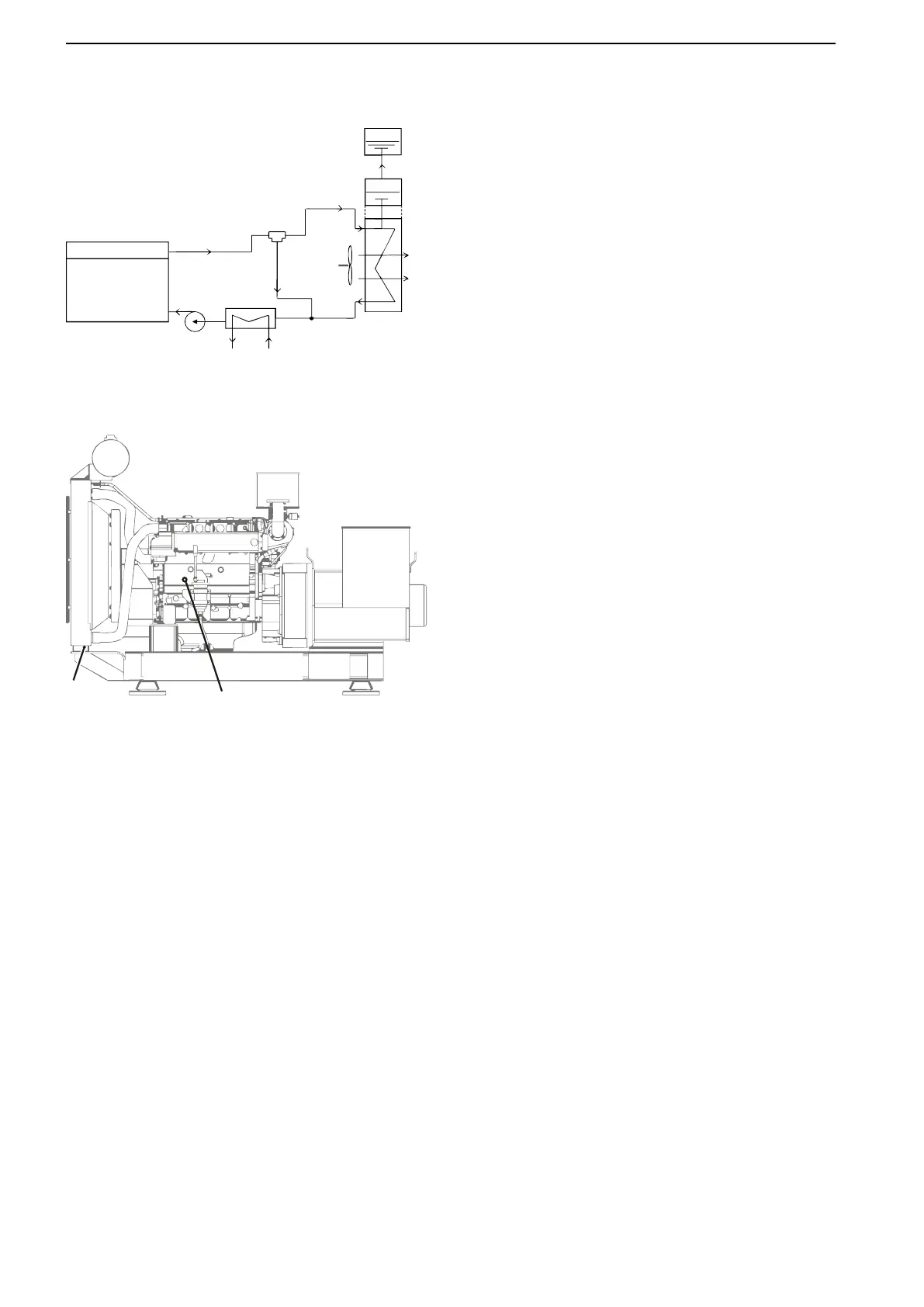

Volvo Penta D5A - D5 A T RC Cooling System Diagram

D5A T RC
P0013709
1
2
3
4
5
6
7
8
9
Drain points freshwater system
D
D
p0013710
The engine cooling water is cooled by a radiator in a
one-circuit cooling system. Air is forced through the
radiator by an engine driven cooling air fan. The
charge air is cooled in an air-to-air charge air cooler
mounted in front of the radiator and it make use of the
air flow from the engines cooling fan before it enters
the radi-ator.
1 Freshwater pump
2 Engine
3 Exhaust Manifold
4 Expansion tank
5 Fan
6 Radiator
7 Expansion tank
8 Expansion tank
9 Lubrication oil cooler
Maintenance
