Volvo Penta D5A - D7 A T HE Cooling System Diagrams

D7A T HE, D7A T KC, D7A T RC, D7A TA HE, D7A
TA KC

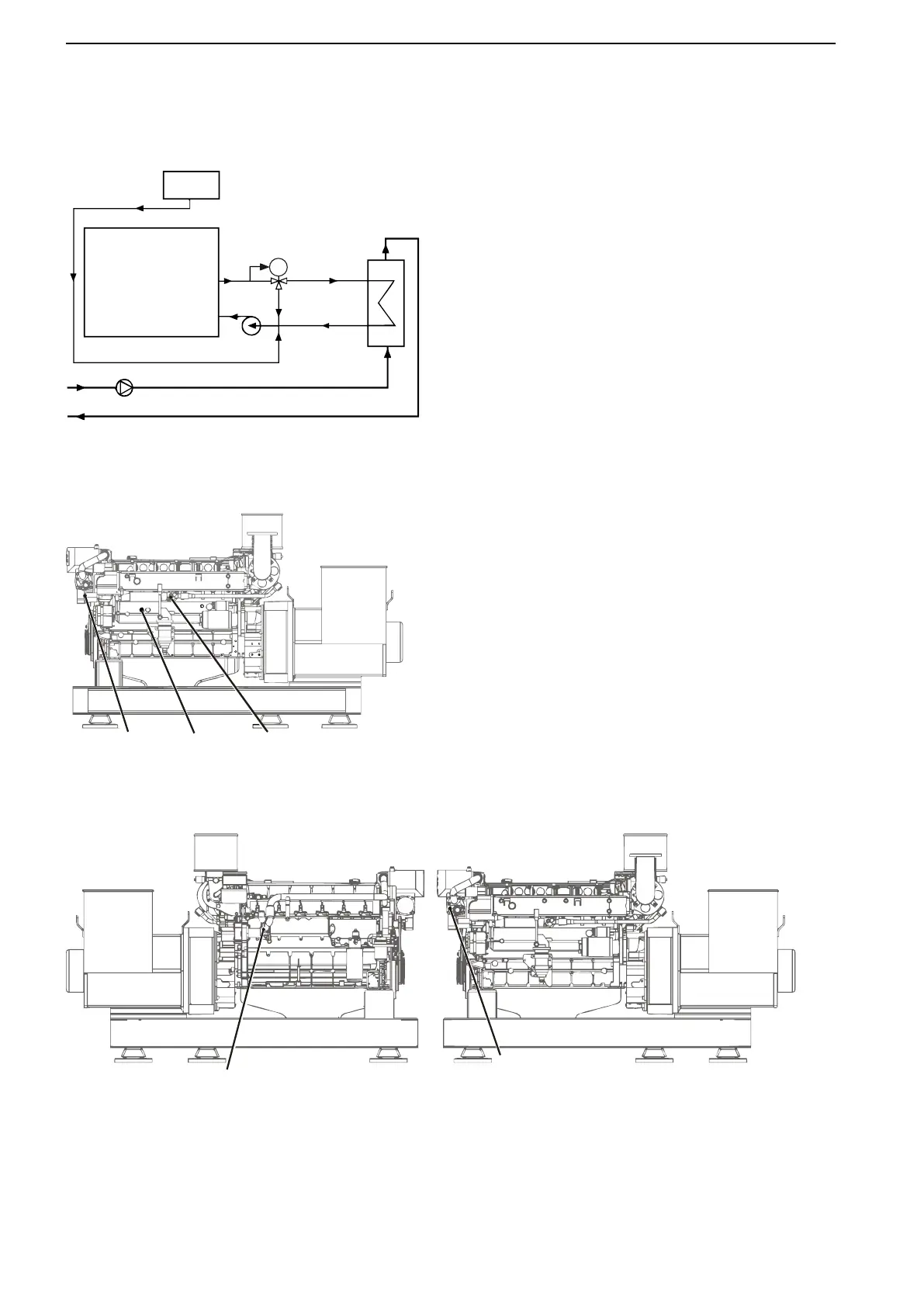

D7A T HE
1
2
3
4
5
6
7
8
T
P0013703
Drain points freshwater system
D
D
D
P0013807
Drain points raw water system
D
D
P0013808
The system includes two circuits. The freshwater
system is cooling the cylinder liners and the cylinder
heads. An engine driven cooling water pump circulate
the coolant through the heat exchanger and through
the engine. The rawwater system is cooling the
coolant in the freshwater cooling system. The
rawwater system is connected to a seawater inlet or
a central cooling system.
1 Engine
2 Freshwater pump
3 Thermostat valve
4 Expansion tank
5 Heat exchanger
6 Raw water pump
7 Freshwater circuit
8 Raw water circuit
Maintenance
74 47713337 03-2021 © AB VOLVO PENTA
