Volvo MD2010 - Presentation

General
The engines are in-line, 4-stroke, marine diesel engines
fitted with top valves. MD2010 has two cylinders, while
MD2020 , MD2030 and MD2040 have three cylinders.
The engines are of the pre-chamber type and equipped
with glow plugs which are activated before and during
starting.
The engines are fitted with thermostat regulated fresh
water cooling. The cooling system is divided into a
fresh water and a sea water system. The sea water
cools the fresh water system via a heat exchanger.
Lubricating takes place by means of an oil pressure
system where an oil pump presses oil to all the lubrica-
tion point. The oil system is provided with a replaceable
oil filter of the full-flow type.
The fuel system is protected from impurities by a re-
placeable fine filter.

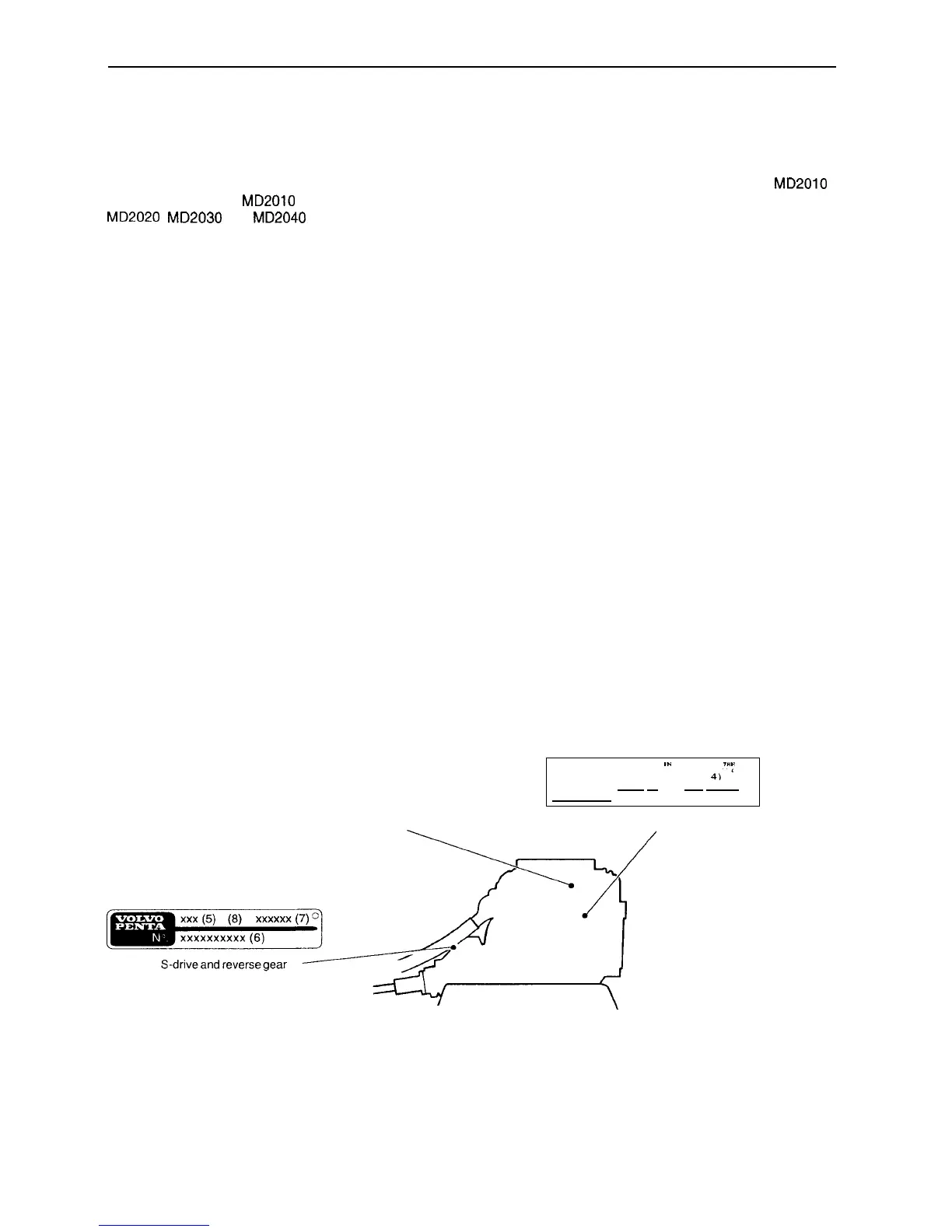

Positioning of rating plates
Presentation
VOLVO

a,usan asseraBLY
PENTA
Tx
XXXX ( 1)
XXXXXXXXXX(2)
XXX XXX (3)
XXXX (5)
XXXXXXXXXX(6)
XXX XXX (7)
Engine and transmission decal
Design differences, engine versions
This Workshop Manual applies to all engines MD2010 -
2040 A, B, C
The most important differences are:
MD2010-40A
=*
MD2010-40B
MD2010-40B has:
•

Unipolar electrical system
•

The fly wheel cover and the transmission (reverse
gear or S-drive) are electrically insulated from the
engine
MD2010-40B = MD2010-40C
MD2010-40C has:
•

Heat exchangers with improved cooling performan-
ce and extended expansion volume
•

Deeper and narrower oil sump
•

Reinforced generator mountings for 2010 and 2020
•

Common oil filter for 2010-40
vxUYeo ~x nCCOXnnxR' i0 •x x .
C.

nvvxoR
'
nl
n
TO;
XXXXXXX
'
XXX
'
( 4)
m.
~
..

0
VOLVO XXXX (1)  XXX XXX (3)
PEP7TA
XXXXXXXXXX (2)
Engine plate
1 9
1. Product designation
5. Product designation
2. Serial number
6. Serial number
3. Product number
7. Product number
4. Certification number
8. Gear ratio
