DESCRIPTION OF INDICATION

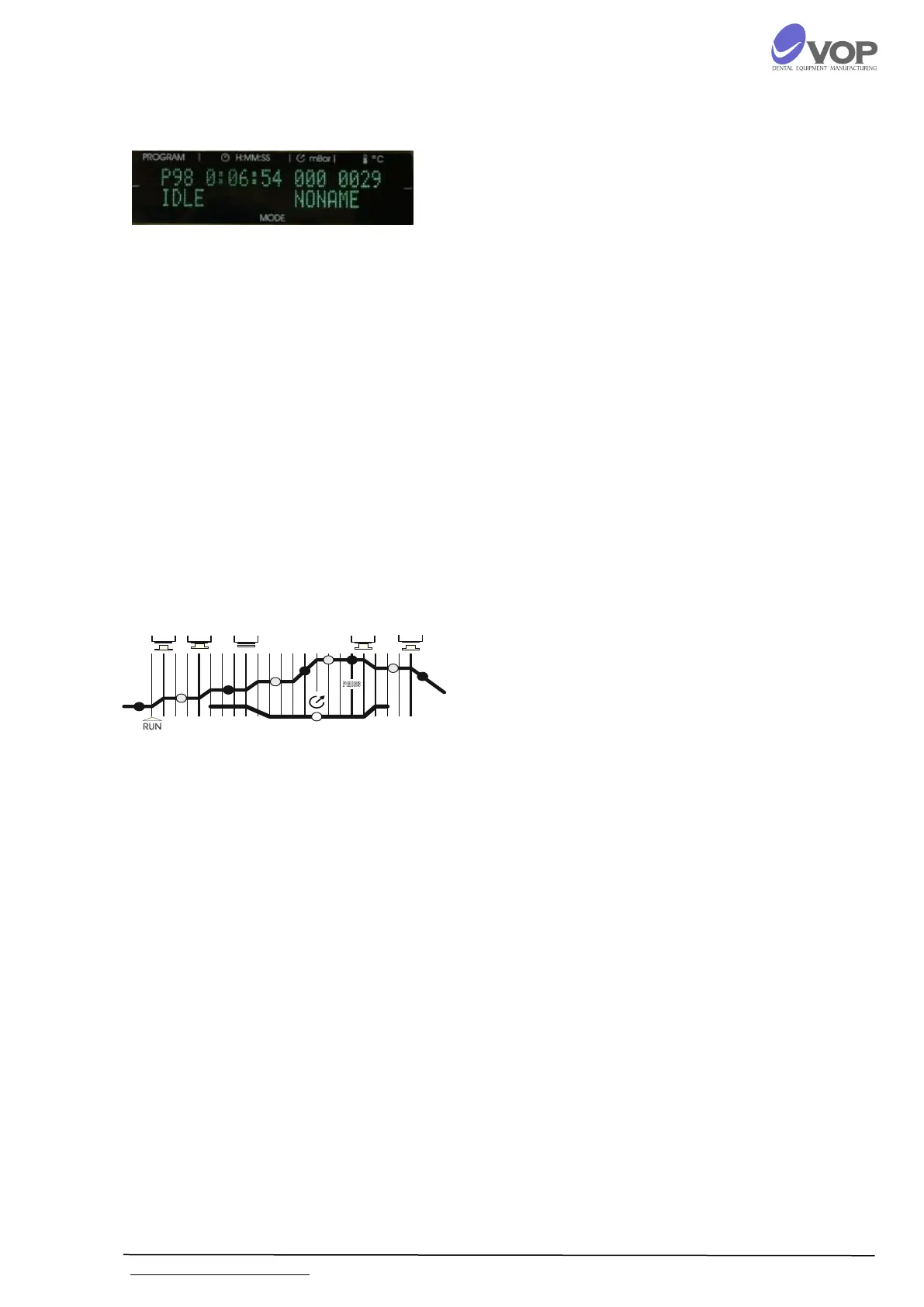

This furnace has 2 LINE VFD display.
The LINE 1 shows following information:
PROGRAM sector shows the number of the chosen
program for execution or the program for entering of
parameters.
Н:ММ:SS sector shows the time left till the end of the
executed program.
mbar sector shows vacuum value in the closed chamber.
°C sector shows the current temperature value in the firing
chamber.
MODE sector is on the second line
On the LEFT you can see information about current stage
and on the RIGHT it shows the name of current program.
Indicator 1: the furnace is in the phase when the
temperature increases until it reaches the
value at which the drying procedure starts.
Indicator 2: the furnace is in the phase of first drying.
Indicator 3: the furnace is in the phase of second drying.
Indicator 4: the furnace is in the phase of first firing.
Indicator 5: the furnace is in the phase when the
temperature increases to the value for
second firing.
Indicator 6: the furnace is in the phase of second firing.
Indicator 7: the furnace is in the phase of pressing.
Indicator 8: the furnace is in the phase of first cooling.
Indicator 9: the furnace is in the phase of second
cooling.
Indicator 10: the vacuum pump is switched on.
4
2
1
3
7
6
5
8
9
10
