Ceramic Master Е1000 en v3 21
11. AUTOCALIBRATION
Clean only with a dry or slightly moist cloth (no solvents!).
Change the safety locks with the announced valus only,
namely:
1.25A, slow (class T).
8A, slow (class T).
No repair activity by a service technician who is not
authorized by the manufacturer is allowed!
The lifting and carrying should be made only with the both
hands from below as the furnace stands on end.
No carrying and transportation in another state except for
vertical position is allowed!

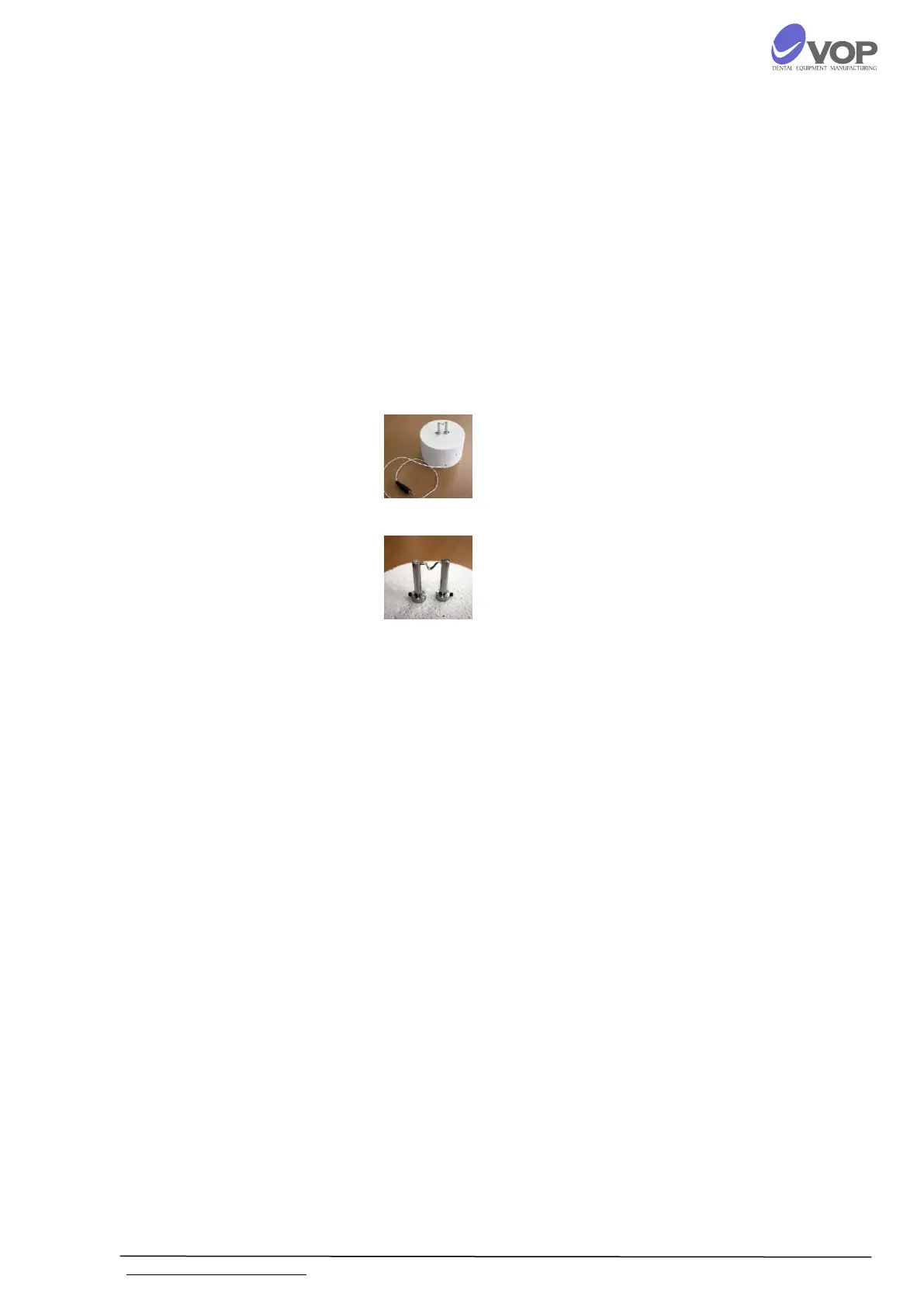

The furnace is optionally provided with a kit for
autocalibration, which is a ceramic table fitted with special
holders. A wire of pure silver 9999 is attached on them.
These holders are connected by wires to the other side of
which a special connector is mounted.
The auto calibration kit is put in place on the tray. The
connector is plugged in the socket labeled ACAL. This
socket is located at the rear side of the furnace.
After plugging on the upper left corner of the display the
sign * appears.
Start any program. After about 2 hours the program ends.
If during the execution of the program there was a problem
and the silver wire is disconnected, when calculating
coefficient was outside the normal range, the display
shows:
Err: Bad value = KKKKK
TTTTT RRR AAAAA,
Where
ККККК is the wanted coefficient
ТТТТ.Т is the temperature at break
RR.R is the ambient temperature
ААААА is the value measured by ADC
(the normal range of the coefficient is between 10000 and
12000)
If during the execution of the program there was no
problem and autocalibration has proceeded normally, the
display shows:
Old = OOOOO New = KKKKK
TTTTT RRR AAAAA,
Where
OOOOO is the old coefficient
KKKKK is the new coefficient
ТТТТ.Т is the temperature at break
RR.R is the ambient temperature
