11
WWW.VORONDESIGN.COM

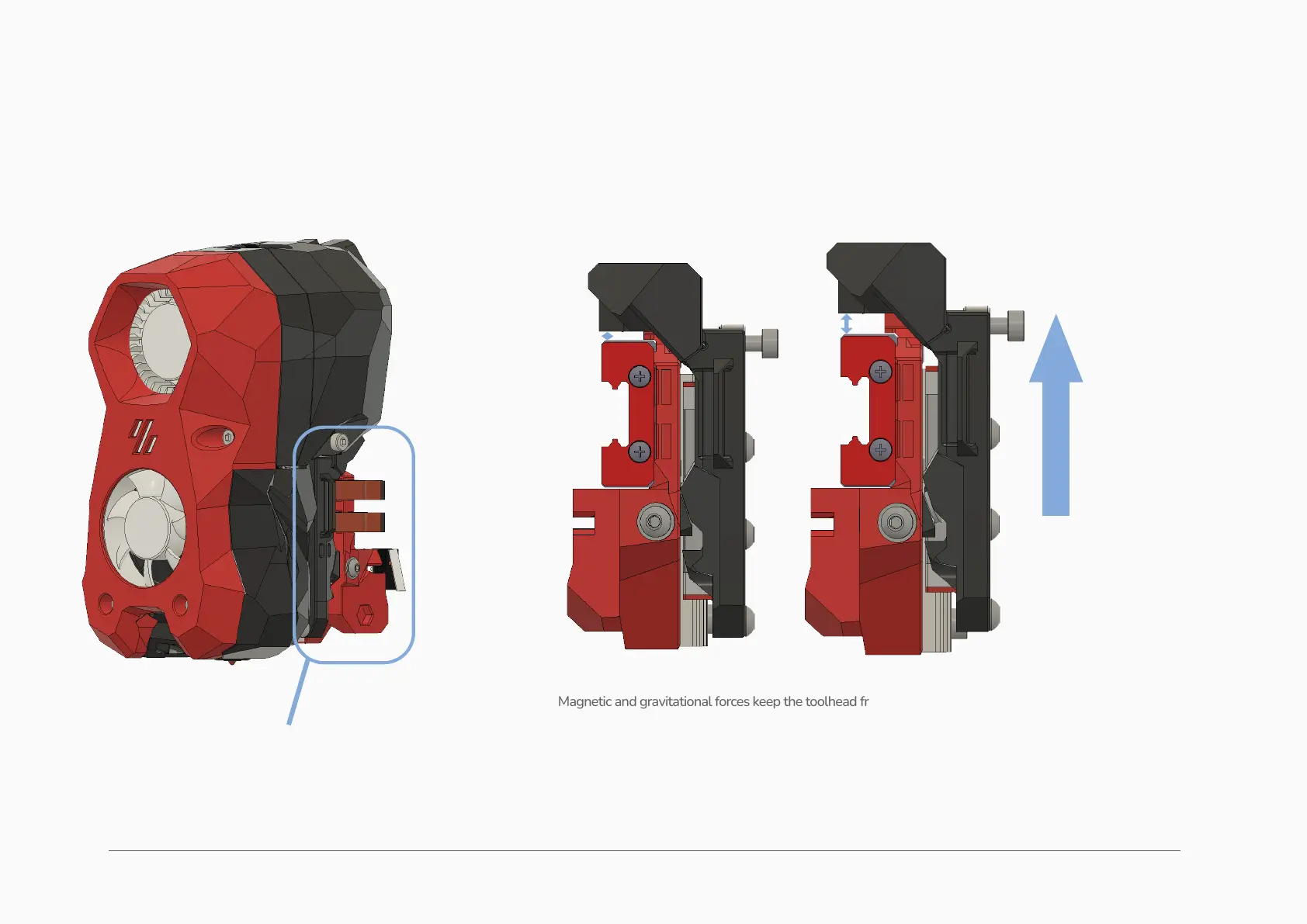

SIDE VIEW
NORMAL OPERATING POSITION TRIGGERED
Magnetic and gravitational forces keep the toolhead from shifting during printing. If the
nozzle contacts something solid (like the bed), the black section of Tap and toolhead move
up, and the optical sensor will trigger. There are stops built in to prevent it from moving too
far, unless you really want the front to fall off.
TAP REPLACES THE X CARRIAGE
Tap is a drop in replacement for the X Carriage.
The toolhead and extruder mount to Tap, which
is mounted to the MGN12 X axis.
