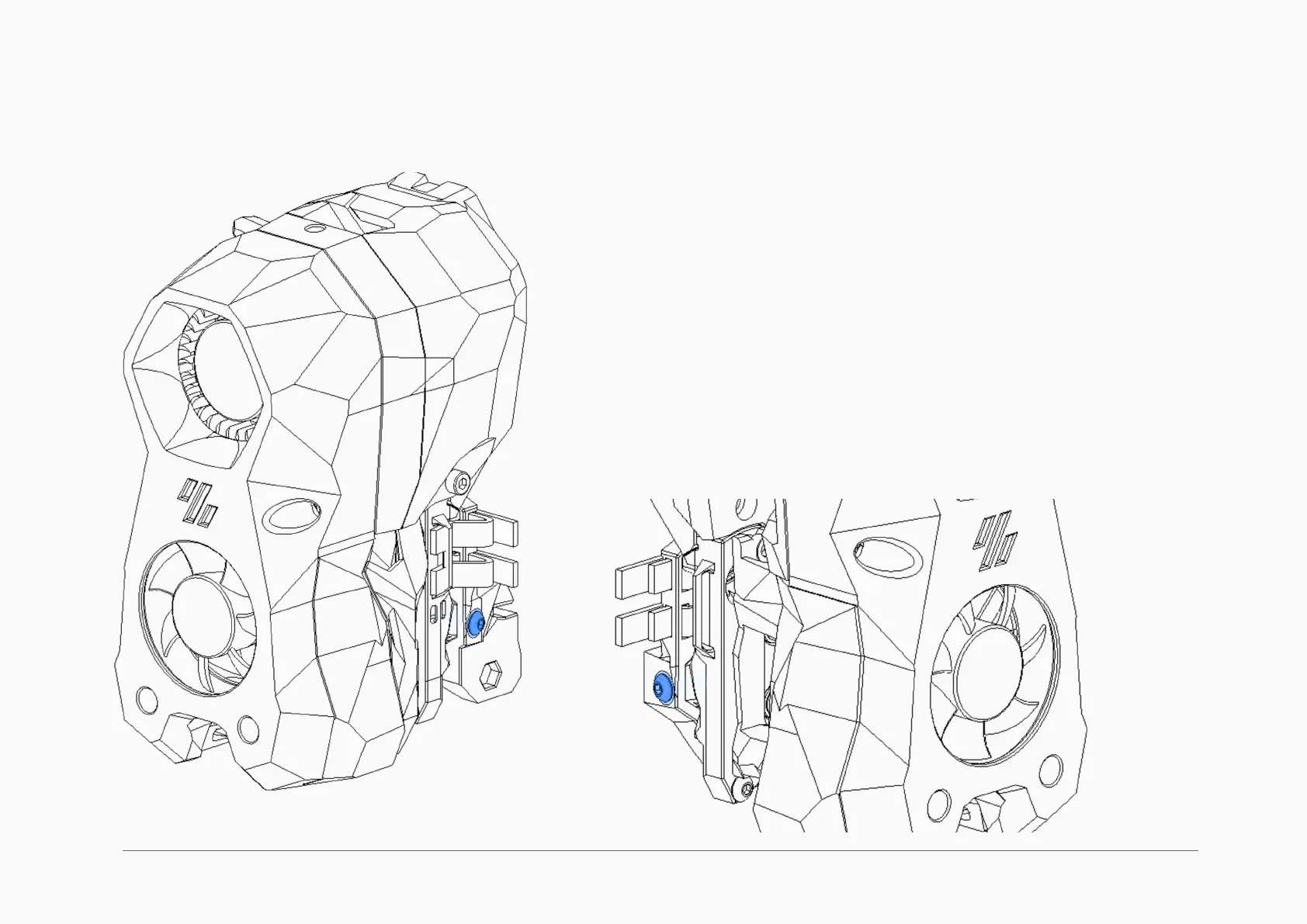

FINAL ASSEMBLY: RELEASE THE MAGNETS
WITH TOOLHEAD ASSEMBLED
Loosen the 2 magnet alignment screws (one on each side). The magnets
will pull themselves into alignment with the FHCS. Give the toolhead a
little shake, then tighten these down.
With the magnets aligned and screws tightened, you should be able to
push up on the entire toolhead, and it will move 1-2 mm before hitting
it’s stop. If your sensor has an indicator light and is connected, it should
change state when you push up on the toolhead by hand.
If you have an indicator and it doesn’t change state,
something is not right. Solve that before homing.
