CUTAWAY VIEW

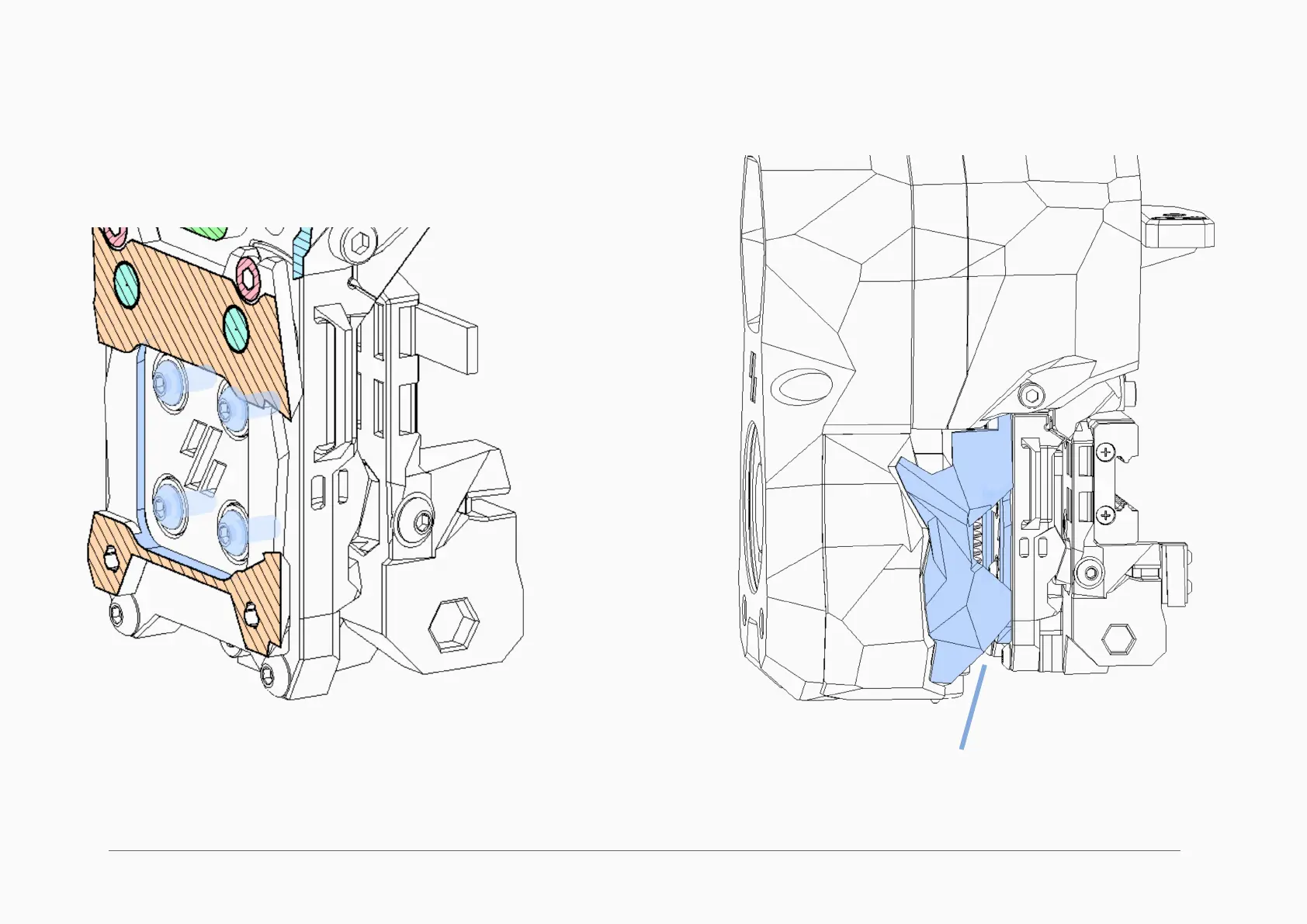

In blue are the four screws and the surface that may need to be trimmed back.
CORRECT INSTALLATION
Toolhead is at against Tap, and can be
rmly secured.
CHECK TOOLHEAD CLEARANCE
The toolhead rear rests on the lowermost 2 screws, but must clear the four
screws that secure the front of Tap. Some toolheads may need to be carved
back to avoid hitting these screws.
