MGN9 CUTTING GUIDE
ENDS CAN BE +/- 1 MM OFF FROM THIS

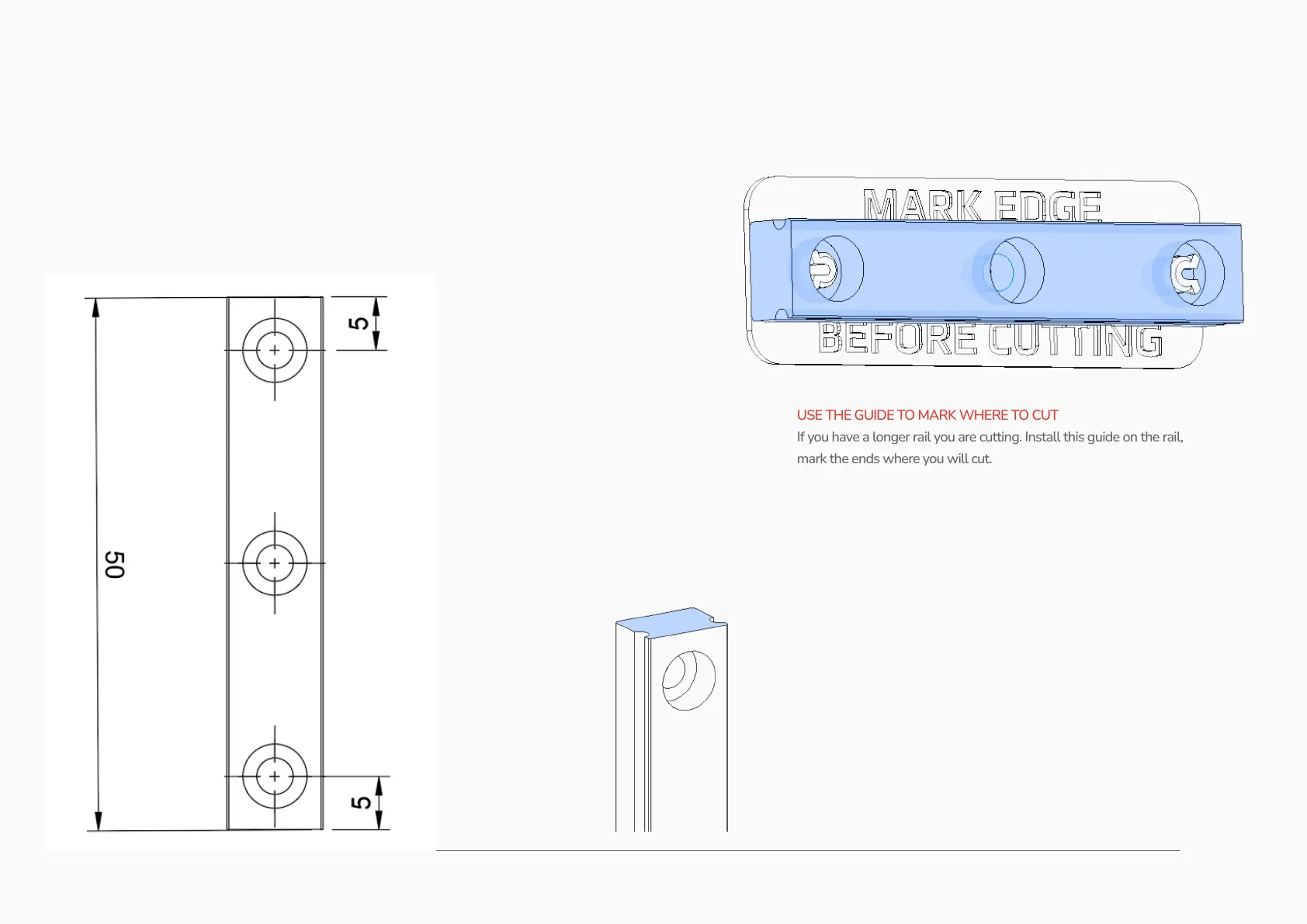

DRAWING
Just make sure you have 3 holes spaced
like so. One in the center, and the other
two ~ 5 mm from the ends.
DEBURR AND CLEAN AFTER CUTTING
Smooth over any sharp edges on the cut surfaces
with a le, and clean the rail carefully.
You don’t want slivers of metal getting into the
carriage or damaging the ball bearings.
USE THE GUIDE TO MARK WHERE TO CUT
If you have a longer rail you are cutting. Install this guide on the rail,
mark the ends where you will cut.
Don’t forget to remove the guide before cutting, it will melt.
