SPECIAL WARNING ON Y POSITION:
Tap is ~3 mm thicker than the stock 2.4R2 and Trident X carriages. This places the toolhead closer to your doors. Make
sure you have clearance, and you may need to adjust your bed position on V2 or Y travel on Trident.
TAP
HARDWARE REQUIREMENTS:
2.4R2 MGN12
YOU MUST USE THE MGN12H X-AXIS
You must already be using the MGN12 based X-Axis.Tap does not t on the older MGN9 based X-axis.
CW2 STYLE MOUNTED EXTRUDER REQUIRED
Tap replaces the X-carriage mount, and requires that the mounting screws come in from the front of the carriage
like CW2, not the back like CW1. There are mounts for LGX and Galileo available.
BED MOUNT MUST BE SECURE
When Tap is probing, the nozzle will contact the bed with a force of approximately 500-800 grams. Your bed
should not move during this. Bed motion compromises the accuracy of Tap, so it is not recommended for Voron
1.8, Legacy, or Switchwire designs.
If you want to know if Tap is right for you, tap your nger on the bed rmly. If the bed moves, Tap is not right for
you.
GOOD MECHANICAL CONDITION
Tap is far more precise than previous Z sensing systems, and we have found it can reveal previously unnoticed
problems in a printer. If your printer has known mechanical issues (such as cracked components) x them before
attempting Tap.
IMPORTANT WARNINGS!

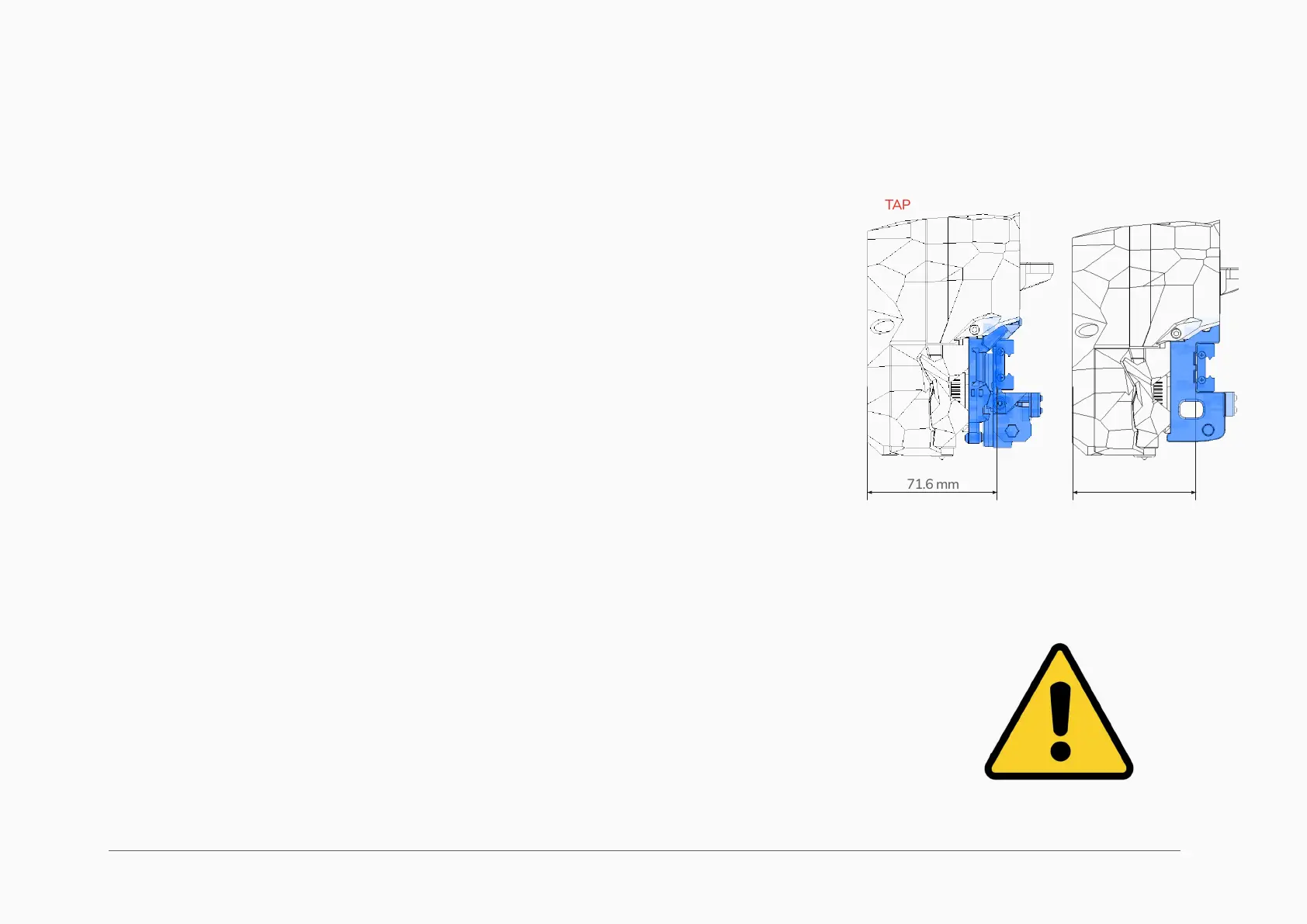

71.6 mm 68.7 mm
