IR610 high performance vector control frequency inverter user manual Chapter 5 function code table
- 140 -
7:Ref1 up effective,Ref2 up ineffective
8:Ref1 up and signal reverse
9:Ref1 up and output 200ms pulse width

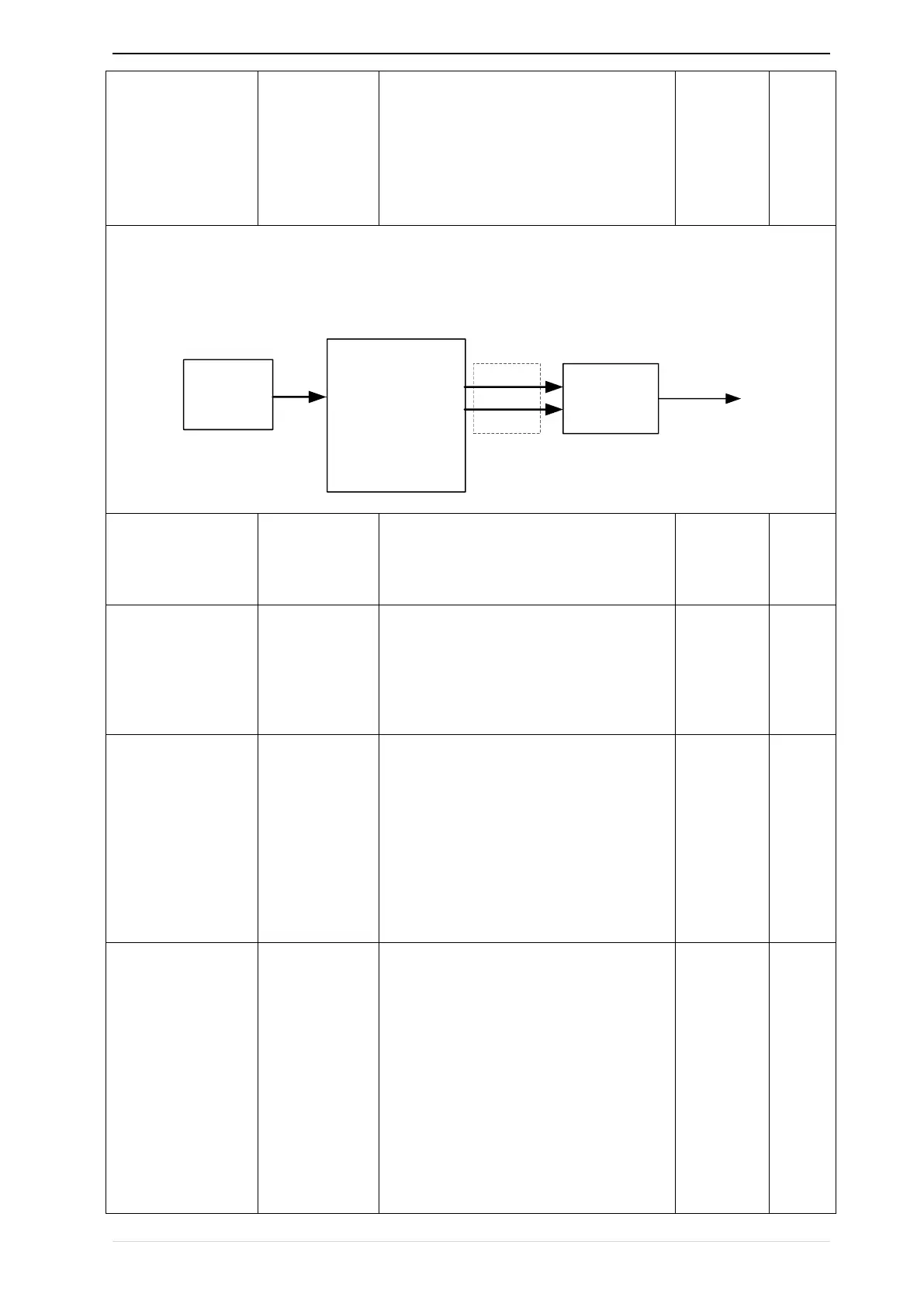

IR610 built-in 4 logical units. The logic unit can perform any one of 0-15 bits of any parameter 1 and any one of 0-15
bits of any parameter 2 for logic processing. The condition is true output 1, otherwise 0 is output. Logic unit output
can be used as DI, VDI, delay unit and other inputs, DO, relays and other output, the user can more flexible access
to the required logic. The schematic block diagram of the logic unit 1 is as follows.
P44.18
Parameter1
P44.19
parameter2
P44.21
Logical
function
processing
P44.20
Parameter bit
selection
Unit’s digit:select
1bit parameter
Ten’s digit:select
2bit parameter
Ref1
Ref2
Logical unit input
Logical unit
output
P44.22
Logic block 2
threshold
parameter 1
00.00-98.99(function code index)
00.00
☆
P44.23
Logic block 2
threshold
parameter2
00.00-98.99(function code index)
00.00
☆
P44.24
Logic block 2
input source
Unit’digit：parameter 1 bit selection
0-F (Represent 0-15),PP44.22 corresponds
to 0-15 bit
Ten’digit:parameter 2 bit selection
0-F (Represent 0-15),PP44.23 corresponds
to 0-15 bit
0
☆
P44.25
Logic bock 2
function
0:no function;
1:and;
2:or;
3:not and;
4:not or;
5: exclusive OR
6:Ref=1 effective;Ref2=1 ineffective
0
☆
